CAN/CAE/CAB
CAN/CAE/CAB
Air Coolers with standard design
BENEFITS AT A GLANCE
- CAN, CAE - Positive temperature areas, refrigeration, storage of fresh products
- CAB - Negative temperature areas, storage of frozen products

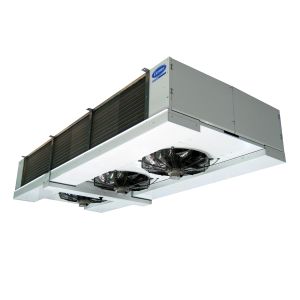

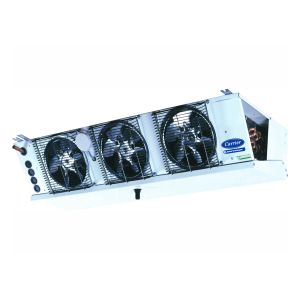

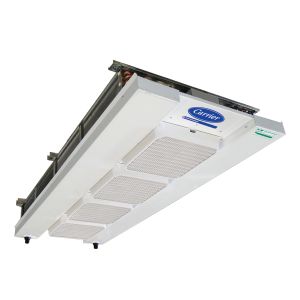

- Ceiling-mounted air cooler
APPLICATIONS
- Cold rooms from small to medium capacities
-
REFRIGERANT:
R404A
R407C, R417A, R422A,
R507
-
COOLING CAPACITY:
2.1-57.8 kW
The ceiling-mounted coolers in this series are suitable for all types of cold rooms from small to medium capacity.
- CAN/CAE: Positive temperature areas, refrigeration, storage of fresh products.
- CAB: Negative temperature areas, storage of frozen products.
Key Features
- Casing made up of white enameled galvanized panels giving optimum corrosion protection
- Ventilation by direct drive axial propeller fan with large blades
- Defrost by stainless steel low-intensity heating elements inserted in the coil (CAE) or in the coil and drain pan (CAB)
- Connected in weatherproof connection box
Options
- Double insulated drain pan
- Air nozzle
- Different fin spacing
- Special circuit: glycol water brines, pump circulation of refrigerant
- Hot gas defrost on the coil (electric in drain pan)
- Increased fan pressure available
| No. of fans: | 1-6 |
| Fan diameters: | 300mm, 450mm, 500mm |
| Capacity: | Up to 57.8 kW |
The ceiling-mounted coolers in this series are suitable for all types of cold rooms from small to medium capacity.
- CAN/CAE: Positive temperature areas, refrigeration, storage of fresh products.
- CAB: Negative temperature areas, storage of frozen products.
Key Features
- Casing made up of white enameled galvanized panels giving optimum corrosion protection
- Ventilation by direct drive axial propeller fan with large blades
- Defrost by stainless steel low-intensity heating elements inserted in the coil (CAE) or in the coil and drain pan (CAB)
- Connected in weatherproof connection box
Options
- Double insulated drain pan
- Air nozzle
- Different fin spacing
- Special circuit: glycol water brines, pump circulation of refrigerant
- Hot gas defrost on the coil (electric in drain pan)
- Increased fan pressure available
| No. of fans: | 1-6 |
| Fan diameters: | 300mm, 450mm, 500mm |
| Capacity: | Up to 57.8 kW |
