Danaos® TT Rounded Corner (RC)
Danaos® TT Rounded Corner (RC)
Service counter with excellent transparency and product visibility
BENEFITS AT A GLANCE
- Exclusive product appearance with an eye-catching effect
- Trendy, stylish design
- Perfectly rounded shapes
- Easily multiplexible with Danaos Total Transparency straight units
-
SYSTEM:
Plug-in;
Remote -
TEMP. RANGE:
0/2°C, 2/4°C,
4/6°C
-
REFRIGERANT:
R744 (CO2), Brine
R134, R404

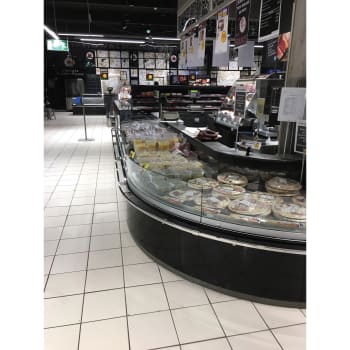

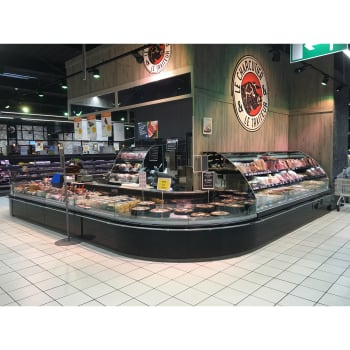

A stylish and trendy corner unit providing a variation to the rectangular coner - this is the Danaos® TT Rounded Corner. This flowing, rounded shape and total transparency of the glass superstructure captures the customer´s attention and makes their shopping experience more enjoyable.
Standard Features
- Fan-assisted air circulation
- 2 display decks (850 mm and 900 mm)
- 1 base height (600 mm)
- 45 and 90 degree corner units
- Full-glass straight superstructure with bottom-hinged glass
- Tilt-down glass with a 270 mm top canopy
- Evaporators protected with cataphoresis
Accessories
- Different aesthetics (Standard / Total Inox / Flat / Wood)
- Product dividers
- Pricing rail
- Terminal rail for 3rd party controller
- Variety of RAL colors available
Dimensions (mm)
- 1 base height (600 mm)
- Glass top canopy (270 mm), curved front glass (tilt-down)
- 2 variants (EC45, EC90)
- 2 display decks (850, 900)
| Modules
|
||||
| Danaos TT RC**
|
EC45
|
EC90
|
||
| Total display area (m2)
|
||||
| Danaos. 85H TT RC
|
1.08
|
2.16 | ||
| Danaos. 90H TT RC
|
1.14
|
2.28
|
||
| Temperature range (°C)*
|
3M1 (-1 /+1) | |||
* These temperature ranges are shown in general for the refrigerated cabinets. Loading height limitation for -1 /+1 °C: 100 mm. Please refer to the technical manual to match the right temperature to the different versions.
** These cabinets are not within the scope of “Commission Delegated Regulation (EU) 2019/2018 supplementing Regulation (EU) 2017/1369” with regard to energy labelling of refrigerating appliances with a direct sales function.
