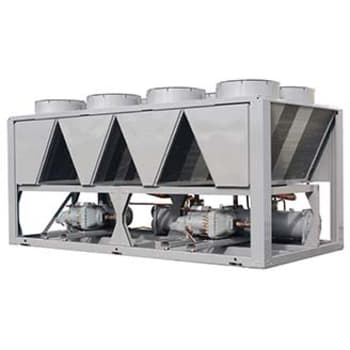

AQUAFORCE® 30XA
30XA

Air-Cooled Liquid Chiller
R-134a Refrigerant

281 to 1,758 Nominal kW
80 to 500 Nominal Tons

with Greenspeed® Intelligence
492 to 1,230 Nominal kW
140 to 350 Nominal Tons

AquaForce 30XA with Greenspeed® Intelligence chillers were designed from the ground up to meet the efficiency demands of today and the future by providing premium air-cooled chiller packages for offshore platforms, support vessels, and workboats. Value-added features include rotary screw compression, R-134a HFC refrigerant, a quiet AeroAcoustic™ fan system, easy to use ComfortLink™ controls, microchannel condenser coil technology, and an optional integrated hydronic pump package with or without VFD. These units can optionally be certified to ATEX for Zone II hazardous locations.

Performance Features

  • Full-load EER values up to 10.9 and IPLV values up to 15.5
  • ASHRAE 90.1 compliant / AHRI certified
  • Operation from -20 F to 125°F ambient conditions
  • High-efficiency screw compressors
  • Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) condenser coils
  • Hydronic pump package, available with or without VFD on sizes 090-160
  • Touch Pilot™ display with color touch screen with trending capability and web-based connection

Reliability Features

  • ASME constructed evaporators / ETL (and ETL Canada) listed.
  • Heavy-gauge galvanized steel frame.
  • Security grilles and Hail guards/Privacy screen choices
  • Low ambient head pressure control
  • Coil corrosion coatings available on all coil types
  • High short circuit current rating
  • EXV (Electronic expansion valve)

Maintenance Features

  • Over 15 diagnostic functions
  • Permanently lubricated fan motor bearings
  • Compressor suction service valves
  • Microchannel condenser coils with inherent corrosion resistance and offering simplified cleaning
  • Unit-mounted, non-fused disconnect
  • Remote service port for easier machine diagnostics

Installation Features

  • Factory charged with R-134a refrigerant
  • GFI (ground fault interrupter) convenience outlet (factory-installed option or field-installed accessory)
  • Remote cooler kit (field-installed accessory)
  • Single or dual-point electrical connections available (factory-installed option)
  • Control transformer (factory-installed option)
  • Structurally robust base
  • Circuit setter provided with optional pump package (factory-installed option)

Standard Warranty

  • 3 year coil parts only on Novation microchannel heat exchanger
  • One year from start-up or 18 months from shipment limited warranty
  • Extended warranty packages available

Factory-Installed Options

  • Service option
  • Optionally available for ATEX, IECex Zone II or NFPA 70 Class I, Division 2 hazardous areas
  • Condenser coil trim panels
  • Full end screen
  • Hydronic pump package with or without VFD (sizes 090-160)
  • Condenser coil options:
    • Microchannel Heat Exchanger:
      • Non-coated
      • E-coated
    • Aluminum fins:
      • Non-coated
      • Pre-coated
      • E-coated
    • Copper fins:
      • Non-coated
      • E-coated
  • Non-fused disconnect
  • Security grilles
  • Energy Management Module
  • Compressor sound reduction enclosures
  • Compressor suction service valve
  • Condenser coil upper hail guards
  • BACnet™ communication
  • BACnet™ translator control
  • LON (local operating network) translator control
  • Low ambient temperature head pressure control
  • Single or dual-point electrical connection
  • High ambient temperature option
  • Touch Pilot™ display
  • Navigator™ display
  • DX cooler
  • Minus-one-pass cooler (flooded cooler only)
  • Plus-one-pass cooler (flooded cooler only)
  • Control transformer
  • Suction line insulation
  • High short circuit current rating

Field-Installed Accessories

  • Security grilles
  • Condenser coil full hail guards
  • Navigator™ display
  • GFI convenience outlet
  • Energy Management Module
  • LON (local operating network) translator control
  • BACnet™ translator control
  • Remote service port
  • Remote cooler
  • Condenser coil trim panels
  • Dual-chiller accessory kit
  • External pump control

Performance Features

  • Full-load EER values up to 10.9 and IPLV values up to 15.5
  • ASHRAE 90.1 compliant / AHRI certified
  • Operation from -20 F to 125°F ambient conditions
  • High-efficiency screw compressors
  • Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) condenser coils
  • Hydronic pump package, available with or without VFD on sizes 090-160
  • Touch Pilot™ display with color touch screen with trending capability and web-based connection

Reliability Features

  • ASME constructed evaporators / ETL (and ETL Canada) listed.
  • Heavy-gauge galvanized steel frame.
  • Security grilles and Hail guards/Privacy screen choices
  • Low ambient head pressure control
  • Coil corrosion coatings available on all coil types
  • High short circuit current rating
  • EXV (Electronic expansion valve)

Maintenance Features

  • Over 15 diagnostic functions
  • Permanently lubricated fan motor bearings
  • Compressor suction service valves
  • Microchannel condenser coils with inherent corrosion resistance and offering simplified cleaning
  • Unit-mounted, non-fused disconnect
  • Remote service port for easier machine diagnostics

Installation Features

  • Factory charged with R-134a refrigerant
  • GFI (ground fault interrupter) convenience outlet (factory-installed option or field-installed accessory)
  • Remote cooler kit (field-installed accessory)
  • Single or dual-point electrical connections available (factory-installed option)
  • Control transformer (factory-installed option)
  • Structurally robust base
  • Circuit setter provided with optional pump package (factory-installed option)

Standard Warranty

  • 3 year coil parts only on Novation microchannel heat exchanger
  • One year from start-up or 18 months from shipment limited warranty
  • Extended warranty packages available

Factory-Installed Options

  • Service option
  • Optionally available for ATEX, IECex Zone II or NFPA 70 Class I, Division 2 hazardous areas
  • Condenser coil trim panels
  • Full end screen
  • Hydronic pump package with or without VFD (sizes 090-160)
  • Condenser coil options:
    • Microchannel Heat Exchanger:
      • Non-coated
      • E-coated
    • Aluminum fins:
      • Non-coated
      • Pre-coated
      • E-coated
    • Copper fins:
      • Non-coated
      • E-coated
  • Non-fused disconnect
  • Security grilles
  • Energy Management Module
  • Compressor sound reduction enclosures
  • Compressor suction service valve
  • Condenser coil upper hail guards
  • BACnet™ communication
  • BACnet™ translator control
  • LON (local operating network) translator control
  • Low ambient temperature head pressure control
  • Single or dual-point electrical connection
  • High ambient temperature option
  • Touch Pilot™ display
  • Navigator™ display
  • DX cooler
  • Minus-one-pass cooler (flooded cooler only)
  • Plus-one-pass cooler (flooded cooler only)
  • Control transformer
  • Suction line insulation
  • High short circuit current rating

Field-Installed Accessories

  • Security grilles
  • Condenser coil full hail guards
  • Navigator™ display
  • GFI convenience outlet
  • Energy Management Module
  • LON (local operating network) translator control
  • BACnet™ translator control
  • Remote service port
  • Remote cooler
  • Condenser coil trim panels
  • Dual-chiller accessory kit
  • External pump control
