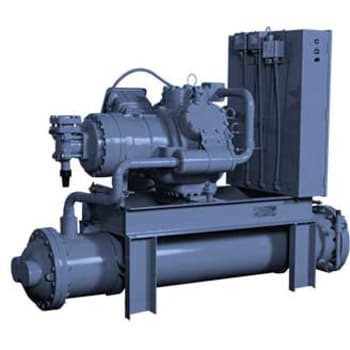

Sea Horse 90Y
Sea Horse
90Y
Condensing Unit
R-407C, R-404A/R-507:
17.5 to 455 Nominal kW
5 to 130 Nominal Tons
R-134a:
10 to 288 kW
3 to 82 Nominal Tons
Seahorse Water Cooled Condensing Units set the industry standard for quality, reliability, and efficiency for marine air conditioning applications. Standard Units are available with refrigerants R-407C, R-404A/R-507 and R-134a for both fresh and seawater environments, as well as a choice of 50 or 60 Hz electrical systems.
Seahorse units are assembled from only the highest quality components, including the traditionally high quality Carlyle compressors.
Carlyle Reciprocating Compressors
- Decades of proven reliability.
- IEEE 45 ODP motors for open drive compressors.
- Direct drive coupling for open drive units.
- High operating efficiency.
- Over sized oil sump.
- Reversible oil pump on semi-hermetic compressors.
Marine Duty Condensers
- Double liquid outlets for positive seal under pitch and roll conditions.
- Seawater condensers with bronze heads and 90/10 Cu/Ni tubes and tube sheets.
- Shell side (refrigerant side) design pressure 350 PSI at 250° F.
- Tube side (water side) design pressure 150 PSIG at 150° F.
- Tested to ASME code.
Control Box:
- NEMA 4 (IP56) enclosure.
- Gauge panel.
- High pressure, low pressure, oil pressure switches.
- Control transformer.
Standard Seahorse units can be fitted with a multitude of options to meet your unique air conditioning requirements. Some options include:
- Packaged chiller units
- Filter dryers with bypass valves
- TXV and liquid line solenoid valves for field installation
- Packaged receiver
- Totally enclosed motor
- Air cooled condenser
- Oil separator
- Alternate refrigerants
- Refrigeration condensing units
- Belt drive units
Please contact your Carrier Marine & Offshore authorized dealer for more information on option packages and custom units.
