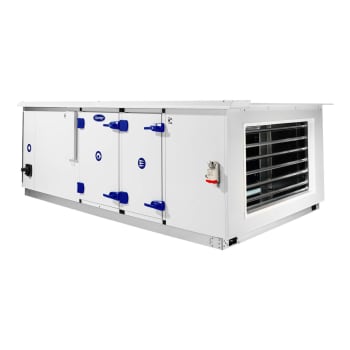

Airovision® - Air handling unit 39CP
Airovision® - Air handling unit
39CP
Air flow : 1 000-30 000 m³/h
The new range of 39CP air handling units is the latest generation of AHUs developed to meet the EN 1886 and EN13053 standards, integrating the most innovative components (filters, recovery units, fans, electric motors, etc.). Designed with a green building approach, the 39CP unit can play a part in achieving green building labels.
- AHU for all applications
- Designed to conform to standards
- EN 13053 and EN 1886
- For all service sector, industry and healthcare applications
- Installation and commissioning are fast and simple
- Possibility of hygienic certification according VDI6022-1: 2018
- 9 sizes to handle air flow rates from 1 000 to 30 000 m3/h

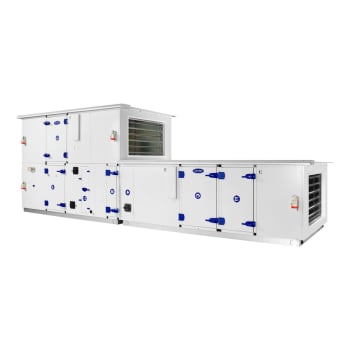

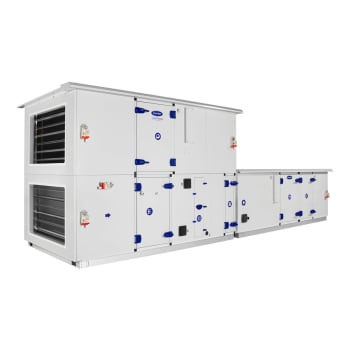

- Available in a single or dual-flow version
- 39CP L for service sector applications / 39CP H and 39CP C for all applications
- Horizontally-mounted version for installation indoors or outdoors with a roof and accessories to protect it from the weather
- Wide range of functions and options available allow fully customized solutions for all applications and all air volumes
Casing
- Double skin panels with 50mm mineral wool insulation
- Moulded high strength bi-component polyurethane gaskets
- Inside is perfectly smooth and even
- Doors hung on high quality frames
Filters
- Wide range of filter efficiencies, technologies and dimensions
- On sizes 150 to 1350, compact filters are available to optimize energy consumption
Plate recovery unit
- 3 efficiencies levels from 60% to 85%
- Plate heat exchangers equipped with a total bypass on fresh air and access door to the servomotor
- Condensate drain pan on exhaust air side
Rotary heat recovery system
- 3 efficiency levels from 75% to 85%
- Corrugated aluminum exchange medium
- Adjustable midway and peripheral gasket to guarantee a minimum leak flow rate
- Lateral inspection panel
- Constant speed gear motor
- Maintenance-free ball bearing
Electric heater
- Shielded resistors in stainless steel scrolled finned tubes
- Double insulation assembly
- 2 safety thermostats
Fans
- Forward-curved dual-inlet fan
- Backward-curved dual-inlet fan
- Steel scroll and impeller
- Assembly on anti-vibration frame
- Metal impeller plug fan turbine with AC motor
Sound attenuator
- Different lengths of baffle depending on the required attenuation
- Mineral wool of different densities
- Galvanized panels
Standalone production steam humidifier
- Aluminum steam distributor
- Steamer with electrical cabinet and controller (IP20)
- Proportional or on/off control
- Duct/cylinder connection
- Temperature regulation
- Humidification and dehumidification regulation
- Fan management
- Filter fouling management
- Single-zone air quality management
- Water coils
- Electric heater
- Steam humidifier
- Management of cooling modes
- Management of frost protection faults
- Fire protection
- Communication board
- 9 sizes to handle air flow rates from 1 000 to 30 000 m3/h
- Available in a single or dual-flow version
- 39CP L for service sector applications / 39CP H and 39CP C for all applications
- Horizontally-mounted version for installation indoors or outdoors with a roof and accessories to protect it from the weather
- Wide range of functions and options available allow fully customized solutions for all applications and all air volumes
Casing
- Double skin panels with 50mm mineral wool insulation
- Moulded high strength bi-component polyurethane gaskets
- Inside is perfectly smooth and even
- Doors hung on high quality frames
Filters
- Wide range of filter efficiencies, technologies and dimensions
- On sizes 150 to 1350, compact filters are available to optimize energy consumption
Plate recovery unit
- 3 efficiencies levels from 60% to 85%
- Plate heat exchangers equipped with a total bypass on fresh air and access door to the servomotor
- Condensate drain pan on exhaust air side
Rotary heat recovery system
- 3 efficiency levels from 75% to 85%
- Corrugated aluminum exchange medium
- Adjustable midway and peripheral gasket to guarantee a minimum leak flow rate
- Lateral inspection panel
- Constant speed gear motor
- Maintenance-free ball bearing
Electric heater
- Shielded resistors in stainless steel scrolled finned tubes
- Double insulation assembly
- 2 safety thermostats
Fans
- Forward-curved dual-inlet fan
- Backward-curved dual-inlet fan
- Steel scroll and impeller
- Assembly on anti-vibration frame
- Metal impeller plug fan turbine with AC motor
Sound attenuator
- Different lengths of baffle depending on the required attenuation
- Mineral wool of different densities
- Galvanized panels
Standalone production steam humidifier
- Aluminum steam distributor
- Steamer with electrical cabinet and controller (IP20)
- Proportional or on/off control
- Duct/cylinder connection
- Temperature regulation
- Humidification and dehumidification regulation
- Fan management
- Filter fouling management
- Single-zone air quality management
- Water coils
- Electric heater
- Steam humidifier
- Management of cooling modes
- Management of frost protection faults
- Fire protection
- Communication board
39CP, a tailor-made solution
to improve your indoor air quality
to improve your indoor air quality
39CP is a tailor-made air handling unit for your applications, available in 9 sizes with a maximized air flow range from 1 000m3/h to 30 000 m3/h. The unit is composed of the latest innovative technologies to provide comfort and a peace of mind for an healthier environment. The unit is also ready for VRF combination with the brand new XCT7.
Full modularity, total reliability, energy savings, high performance: discover the air handling unit with cutting-edge technologies able to deal with your specific needs.
