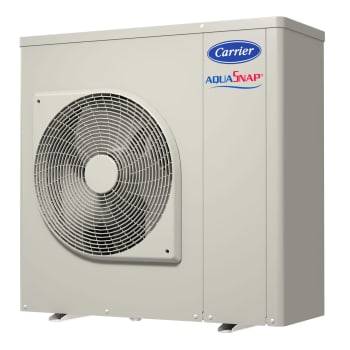

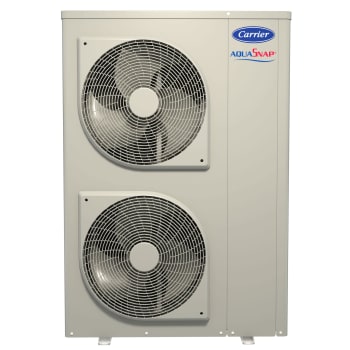

AquaSnap® - Air-to-water heat pump 30AWH-P
AquaSnap® - Air-to-water heat pump
30AWH-P
For residential and light commercial applications
WITH R290 REFRIGERANT
Refrigerant: R290
Compressor: full inverter twin rotary
Nominal cooling capacity: 4 - 14 kW
Nominal heating capacity: 4 - 14 kW
Operating range: -20°C ~ +46°C
The new 30AWH-P Monobloc Air-to-water heat pumps with R290 natural refrigerant result from a successful combination of innovation and environmental stewardship for a high level of comfort all year round.
Designed for heating and cooling applications, they are suitable for both new housing and renovation, for residential and light commercial application.
Delivering high performance, the 30AWH-P range is compatible with low to medium temperature emitters (underfloor heating, fan coil units, hydronic cassettes, radiators, mixed installations, etc.), and up to high temperature emitters for renovation application (boiler replacement).
The monobloc 30AWH-P heat pump is installed outdoors in an open area. Each unit is produced and tested in one of our factories located in Europe and delivered ready for operation.
Natural Refrigerant
R290 natural refrigerant helps to minimize environmental impact (GWP100 = 0,02*) in residential and light commercial applications.
Low-noise operation
With design optimization for low noise levels, the 30AWH-P features quiet operation, with ErP rated sound levels starting from 49dB(A), and a night mode can be activated by the user.
High energy efficiency
SCOP up to 4.82 - SEER up to 5.34 Energy class A+++ (35°C)** or A++ (55°C)**
Compact Design
Compact footprint 0.41m2 facilitates installation, even in small spaces.
Certified performance
New 30AWH-P can satisfy local incentive requirements***.
High LWT (Leaving Water Temperature)
Reaching up to 75°C leaving water temperature, the 30AWH-P can supply more domestic hot water, that in addition can be stored at a higher temperature for anti-legionella protection
Wide range offer
The 30AWH-P range of reversible heat pumps comprises 6 single-phase models and 2 three-phase models, from 4 kW to 14 kW, to meet different requirements.
Easy handling and transportation
Due to compact dimensions and reduced weight, heat pump handling and transportation are easier.
Safety
Low refrigerant charge and the hermetically sealed coolant circuit help minimize the potential for leaks.
In addition, an external gas separator installed on the leaving water pipe further prevents any potential gas leakage from being released into the house.
Easy installation
Optimized layout and structure for easy connection and easy access to components.
* based on Regulation (EU) 2024/573
** the range of efficiency classes between A+++ and D
***depends on local market regulation
WUI MULTI-FUNCTION WIRED CONTROLLER
- Included inside the unit for immediate start-up and use of the unit
- Intuitive icons to help avoid language barriers
- Occupancy mode (Home, Sleep, Away)
- Easy temperature control to set either air temperature or water temperature depending on system configuration
- Weekly timer function
- Two levels of access: end-user and technician
- Manages cascade system up to 4 units
CARRIER COMFORT MANAGEMENT T300
Carrier Comfort Management T300 is an advanced room control, featuring a stylish and modern design, that thanks to the built-in Gateway allows the remote management of home comfort via Carrier Comfort Management App. Besides managing up to 3 zones via expansion PCB, the T300 advanced control can operate as a true System Manager for the heating and cooling generation system (intuitive management of the heat pump and full-electric system operation, as well as hybrid distribution). The screen graphics of Carrier Comfort Management T300 are easy to read and contain self-explanatory icons allowing an intuitive use.
BluEdge™ COMFORT SERVICE APP
Service technicians can do commissioning, diagnostics and troubleshooting easily and intuitively using the BluEdge Comfort Service App, which is an additional benefit of the AquaSnap 30AWH-P.
Designed for heating and cooling applications, they are suitable for both new housing and renovation, for residential and light commercial application.
Delivering high performance, the 30AWH-P range is compatible with low to medium temperature emitters (underfloor heating, fan coil units, hydronic cassettes, radiators, mixed installations, etc.), and up to high temperature emitters for renovation application (boiler replacement).
The monobloc 30AWH-P heat pump is installed outdoors in an open area. Each unit is produced and tested in one of our factories located in Europe and delivered ready for operation.
Natural Refrigerant
R290 natural refrigerant helps to minimize environmental impact (GWP100 = 0,02*) in residential and light commercial applications.
Low-noise operation
With design optimization for low noise levels, the 30AWH-P features quiet operation, with ErP rated sound levels starting from 49dB(A), and a night mode can be activated by the user.
High energy efficiency
SCOP up to 4.82 - SEER up to 5.34 Energy class A+++ (35°C)** or A++ (55°C)**
Compact Design
Compact footprint 0.41m2 facilitates installation, even in small spaces.
Certified performance
New 30AWH-P can satisfy local incentive requirements***.
High LWT (Leaving Water Temperature)
Reaching up to 75°C leaving water temperature, the 30AWH-P can supply more domestic hot water, that in addition can be stored at a higher temperature for anti-legionella protection
Wide range offer
The 30AWH-P range of reversible heat pumps comprises 6 single-phase models and 2 three-phase models, from 4 kW to 14 kW, to meet different requirements.
Easy handling and transportation
Due to compact dimensions and reduced weight, heat pump handling and transportation are easier.
Safety
Low refrigerant charge and the hermetically sealed coolant circuit help minimize the potential for leaks.
In addition, an external gas separator installed on the leaving water pipe further prevents any potential gas leakage from being released into the house.
Easy installation
Optimized layout and structure for easy connection and easy access to components.
* based on Regulation (EU) 2024/573
** the range of efficiency classes between A+++ and D
***depends on local market regulation
WUI MULTI-FUNCTION WIRED CONTROLLER
- Included inside the unit for immediate start-up and use of the unit
- Intuitive icons to help avoid language barriers
- Occupancy mode (Home, Sleep, Away)
- Easy temperature control to set either air temperature or water temperature depending on system configuration
- Weekly timer function
- Two levels of access: end-user and technician
- Manages cascade system up to 4 units
CARRIER COMFORT MANAGEMENT T300
Carrier Comfort Management T300 is an advanced room control, featuring a stylish and modern design, that thanks to the built-in Gateway allows the remote management of home comfort via Carrier Comfort Management App. Besides managing up to 3 zones via expansion PCB, the T300 advanced control can operate as a true System Manager for the heating and cooling generation system (intuitive management of the heat pump and full-electric system operation, as well as hybrid distribution). The screen graphics of Carrier Comfort Management T300 are easy to read and contain self-explanatory icons allowing an intuitive use.
BluEdge™ COMFORT SERVICE APP
Service technicians can do commissioning, diagnostics and troubleshooting easily and intuitively using the BluEdge Comfort Service App, which is an additional benefit of the AquaSnap 30AWH-P.
