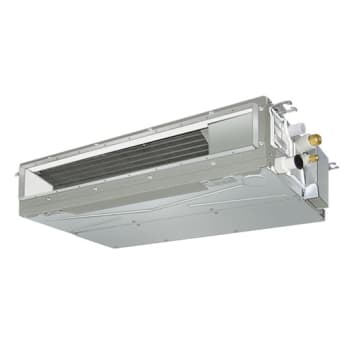

Super Slim Duct MMD Series
Super Slim Duct MMD Series
Super slim duct type
With R410A Refrigerant
Cooling capacity: 2.2~8kW
Features
- Very compact design: Only 21cm height & 45cm depth
- Wide range choice (12 capacities)
- Easy maintenance – external electrical box
- Choice with high-lift drain pump (350mm) MPHY or without drain pump MHY
Physical Data
| Model Name | Cooling Capacity
(kW) |
Dimensions HxWxD
(mm) |
| MMD-AP0076MPHY/
MMD-AP0076MHY |
2.2 | 210x700x450 |
| MMD-AP0086MPHY/
MMD-AP0086MHY |
2.5 | 210x700x450 |
| MMD-AP0096MPHY/
MMD-AP0096MHY |
2.8 | 210x700x450 |
| MMD-AP0106MPHY/
MMD-AP0106MHY |
3.2 | 210x700x450 |
| MMD-AP0126MPHY/
MMD-AP0126MHY |
3.6 | 210x700x450 |
| MMD-AP0146MPHY/
MMD-AP0146MHY |
4.0 | 210x700x450 |
| MMD-AP0156MPHY/
MMD-AP0156MHY |
4.5 | 210x900x450 |
| MMD-AP0176MPHY/
MMD-AP0176MHY |
5.0 | 210x900x450 |
| MMD-AP0186MPHY/
MMD-AP0186MHY |
5.6 | 210x900x450 |
| MMD-AP0206MPHY/
MMD-AP0206MHY |
6.3 | 210x1100x450 |
| MMD-AP0246MPHY/
MMD-AP0246MHY |
7.1 | 210x1100x450 |
| MMD-AP0276MPHY/
MMD-AP0276MHY |
8.0 | 210x1100x450 |
