40VCF*S
40VCF*S

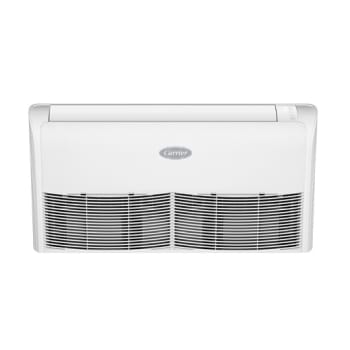

Flex Ceiling Floor Type VRF Indoor Unit
DC Motor
With R410A Refrigerant
Cooling Capacity: 2.8~14.0
Heating Capacity: 3.2~16.0
Features:
- Ultra compact design (230 mm), elegant balance of flexibility and simplicity
- Appealing, even without screen cover
- Easy installation and maintenance
- Simultaneous left and right swing control for optional freestyle airflow
- Easy access to PCB
- PM 2.5 filter (optional)
Physical Data
| Component | Model | Cooling Capacity(kW) | Heating Capacity(kW) | Dimensions HxWxD(mm) |
| Indoor | 40VC009F-7S-QEE | 2.8 | 3.2 | 680x1000x230 |
| Indoor | 40VC012F-7S-QEE | 3.6 | 4.0 | 680x1000x230 |
| Indoor | 40VC016F-7S-QEE | 4.5 | 5.0 | 680x1000x230 |
| Indoor | 40VC018F-7S-QEE | 5.6 | 6.3 | 680x1000x230 |
| Indoor | 40VC024F-7S-QEE | 7.1 | 8.0 | 680x1330x230 |
| Indoor | 40VC028F-7S-QEE | 8.0 | 9.0 | 680x1330x230 |
| Indoor | 40VC030F-7S-QEE | 9.0 | 10.0 | 680x1330x230 |
| Indoor | 40VC038F-7S-QEE | 11.2 | 12.5 | 680x1650x230 |
| Indoor | 40VC048F-7S-QEE | 14.0 | 16.0 | 680x1650x230 |
