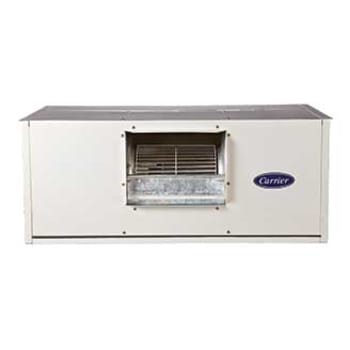

40LW
40LW
Packaged Air Handler
Ceiling Suspended
Airflow: 2,039~11,553 m³/h
- Exemplary compact design
- Reliable & energy efficient design
- Easy installation and maintenance
- Ultra tranquil design
Performance Features
- Variable fan speed adjusts cooling according to load and saves energy
- Efficient heat transfer with Al dual sine wave fin coil with Copper tube
- Fire resistant Polyethylene insulation which reduces sound levels and minimizes condensation
Reliability Features
- Rugged and durable powder coated GI sheet construction
Maintenance Features
- Easily serviceable 15 micron synthetic, non woven filter
Installation Features
- Low height - 680 mm max; Saves false ceiling height requirement
- Compact size saves installation space and time
Physical Data
| Unit Size | Width (mm) | Length (mm) | Height (mm) | Weight (Kg) |
| 004 | 667 | 971 | 460 | 55 |
| 006 | 667 | 1143 | 460 | 65 |
| 009 | 667 | 1480 | 460 | 85 |
| 012 | 974 | 1866 | 680 | 173 |
| 016 | 974 | 1866 | 680 | 180 |
