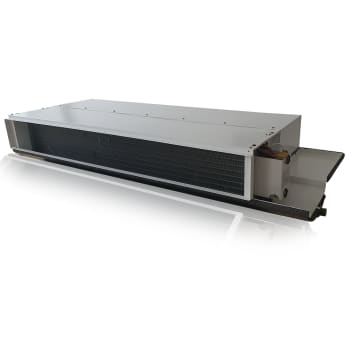

42CE

Fan Coil
Horizontal, Concealed
Low Height, Low Noise

Ultra-Tranquil: Units use low speed wide wheels with a DIDW centrifugal forward curved blower with specially designed motor to ensure low noise.
High-Efficiency: Aluminum laced sine wave coils with copper tubing assure high quality heat transfer between primary and secondary coil surfaces.
Ultra-Thin: The unit height is only 250 mm.
Agile Selection:
- The 42CE fan coil is offered with return air plenum with nylon filter and auxiliary GI drain pan as standard.
- The auxiliary drain pan is ideal to collect the condensate from the control valve and isolation valve and is offered as stainless steel as an option.
Noise eliminating fiberglass insulation assures good sound performance.
Standard units are 30Pa external static pressure with optional 50Pa.
Isolation ball valves are provided at both inlet and outlet. These values are interchangeable with copper piping at factory to enable ease of connection at site. Valve package is fitter with 2-way/3-way, On/Off type, spring return control valve.

2- or 3-way valve
Wireless remote control
Thermostat
UVC LAMP - The ideal solution to disinfect air in your closed spaces, the UVC lamp is designed to keep your air conditioner’s cooling coil clean, prevent microbial build-up and eliminate mold spores, fungi, bacteria & viruses.
PM 2.5 FILTERS - With minimum airflow resistance and enhanced dust-holding capacities, the PM 2.5 filter serves as a cost-effective option for healthy indoors with high-efficiency air filtering needs.

Features

Ultra-Tranquil: Units use low speed wide wheels with a DIDW centrifugal forward curved blower with specially designed motor to ensure low noise.
High-Efficiency: Aluminum laced sine wave coils with copper tubing assure high quality heat transfer between primary and secondary coil surfaces.
Ultra-Thin: The unit height is only 250 mm.
Agile Selection:
- The 42CE fan coil is offered with return air plenum with nylon filter and auxiliary GI drain pan as standard.
- The auxiliary drain pan is ideal to collect the condensate from the control valve and isolation valve and is offered as stainless steel as an option.
Noise eliminating fiberglass insulation assures good sound performance.
Standard units are 30Pa external static pressure with optional 50Pa.
Isolation ball valves are provided at both inlet and outlet. These values are interchangeable with copper piping at factory to enable ease of connection at site. Valve package is fitter with 2-way/3-way, On/Off type, spring return control valve.

Videos

Options

2- or 3-way valve
Wireless remote control
Thermostat
UVC LAMP - The ideal solution to disinfect air in your closed spaces, the UVC lamp is designed to keep your air conditioner’s cooling coil clean, prevent microbial build-up and eliminate mold spores, fungi, bacteria & viruses.
PM 2.5 FILTERS - With minimum airflow resistance and enhanced dust-holding capacities, the PM 2.5 filter serves as a cost-effective option for healthy indoors with high-efficiency air filtering needs.

Catalog
