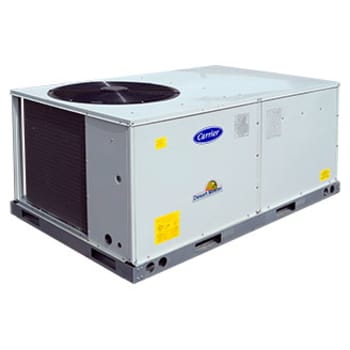

Desert Master™ 50TCM
Desert Master™
50TCM
Single-Packaged Rooftop
Electric Cooling Units
Puron® (R-410A) Refrigerant
6.0 to 12.5 nominal tons
The 50TCM units are single side discharge rooftop cooling units utilizing electric heat as an option. Units are prewired, and pre-charged with R-410A refrigerant, and tested at the factory. These units can be placed on the side of a building or on a roof without roof curbs. Each unit is designed to occupy a minimal space, with piping and drain connections readily accessible.
Carrier’s Package Rooftop Unit software makes selecting and optimizing the 50TCM easy.
Installation Features
- Single point electrical service entry
- Side discharge application
- No roof curb needed
- Side-by-side supply and return air
- Separate panel for control box
Performance Features
- HFC R-410A refrigerant
- ASHRAE 90.1 compliant
- EER’s up to 12.2
- TXV refrigerant metering device
- Independent refrigerant circuits, each with a scroll compressor
- Low outdoor temperature cooling operation down to 40°F
- Cooling operating range up to 125 °F (51.6°C)
- Liquid filter drier standard on each circuit
- Fresh air intake capability
- Non-corrosive sloped condensate drain pan in accordance to ASHRAE 62 standard
- Thermally protected and permanently lubricated condenser and evaporator fan motors
- Angle type return air section with washable type filters
Environmentally Responsible Refrigerant Choice
R410A refrigerant is:
- A chlorine-free refrigerant from the HFC group
- Has zero ozone depletion potential
- Thermally efficient and provides High EER (energy efficiency), COP, and part load efficiencies
Superior Reliability, Efficiency and Safety
- Exceptional endurance tests
- Painted panels tested to ASTM B-117 500 hours salt spray protection
- Pre-coated fin condenser coil for extra corrosion protection
- Compressor Protection:
- High and low pressure cutouts
- Phase protection relay
- Crankcase heaters are standard for all units
- Internal over temperature protection
- Freeze protection
- Low vibration design:
- Leak-tight refrigerant circuit
- Brazed refrigerant connections for increased leak tightness
- Low-noise scroll compressors with low vibration levels
- Control circuit protected by circuit breaker
- Thermally protected and permanently lubricated condenser and evaporator fan motors
- Angle type return air section with washable type filters
- Transformer for safe 24v control circuit supply included
- High efficiency, High Static Blower
- State-of-art scroll compressor technology
- Dual, electrically and mechanically independent refrigerant circuit
Standard Limited Warranty
- 5 years on compressors and 2 years parts
- Extended warranty packages available
Factory-Installed Options
- Refrigerant sight glass - Installed on each circuit
- Pre-coated fins - condenser only
- Copper fins - condenser only
- Copper fins - condenser and evaporator
- Multiple motor and drive packages
Field-Installed Options
- Electric resistance heater package
- Single point kit
- UVC ready
- Softbag filters
