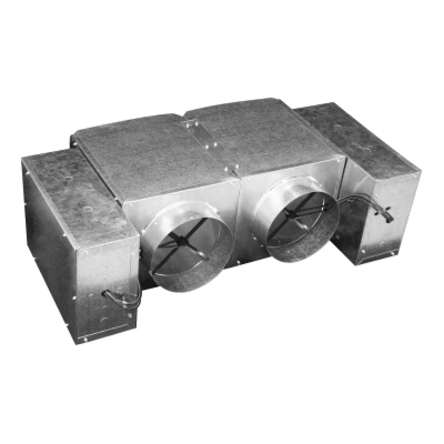

AXIS™ Dual-Duct VAV Terminal 35L
AXIS™ Dual-Duct VAV Terminal
35L
50 to 7,100 Nominal Cfm
The 35L units offer a compact design with diverse control packages. The 35L dual-duct terminals are designed to maintain optimum temperatures in the conditioned zone by varying the air volume supplied by hot and cold supply ducts while providing the proper discharge air temperature
Performance Features
- Airflow capacities from 45 to 3700 cfm
- Round inlet sizes from 4 in. through 16 in. diameter
- Rectangular inlet on size 22
- 22 gauge, galvanized steel casing construction
- Converts high-pressure mechanical constant volume systems to low-pressure variable volume systems
- Linear, multiple-point, averaging velocity sensor with an amplified signal
- Damper blade has a flexible gasket for tight airflow shutoff
- Damper blade operates over a full 90°
- All damper assemblies utilize a solid ½ in. shaft that rotates in self-lubricating Delrin® bearings
- Pressure independent or dependent controls, including Carrier i-Vu Open (BACnet), Carrier Comfort Network® (CCN), analog, or pneumatic controls
Reliability Features
- Casings meet UL-181 and NFPA-90A requirements
Maintenance Features
- NEMA 2 steel control enclosure for electric or electronic components
- Label information adhered to each unit includes model, size, airflow (cfm), balancing chart, and tagging data
Installation Features
- Factory-installed controls
- All round collars accommodate standard spiral and flex duct sizes
- Balancing taps provided for easy airflow verification
Standard Warranty
- One-year parts
Factory-Installed Options
- Control options:
- Analog electronic controls
- Carrier i-Vu Open VAV or VVT controls
- Carrier Comfort Network (CCN) VAV or VVT controls
- Pneumatic controls
- No controls or field-supplied DDC (direct digital controls) third party controls for factory mounting
- Left-hand or right-hand control enclosure
- 20 gauge, galvanized steel casing
- 304 stainless steel casing
Field-Installed Accessories
- Remote wall sensor
- Supply-air temperature sensor
Performance Features
- Airflow capacities from 45 to 3700 cfm
- Round inlet sizes from 4 in. through 16 in. diameter
- Rectangular inlet on size 22
- 22 gauge, galvanized steel casing construction
- Converts high-pressure mechanical constant volume systems to low-pressure variable volume systems
- Linear, multiple-point, averaging velocity sensor with an amplified signal
- Damper blade has a flexible gasket for tight airflow shutoff
- Damper blade operates over a full 90°
- All damper assemblies utilize a solid ½ in. shaft that rotates in self-lubricating Delrin® bearings
- Pressure independent or dependent controls, including Carrier i-Vu Open (BACnet), Carrier Comfort Network® (CCN), analog, or pneumatic controls
Reliability Features
- Casings meet UL-181 and NFPA-90A requirements
Maintenance Features
- NEMA 2 steel control enclosure for electric or electronic components
- Label information adhered to each unit includes model, size, airflow (cfm), balancing chart, and tagging data
Installation Features
- Factory-installed controls
- All round collars accommodate standard spiral and flex duct sizes
- Balancing taps provided for easy airflow verification
Standard Warranty
- One-year parts
Factory-Installed Options
- Control options:
- Analog electronic controls
- Carrier i-Vu Open VAV or VVT controls
- Carrier Comfort Network (CCN) VAV or VVT controls
- Pneumatic controls
- No controls or field-supplied DDC (direct digital controls) third party controls for factory mounting
- Left-hand or right-hand control enclosure
- 20 gauge, galvanized steel casing
- 304 stainless steel casing
Field-Installed Accessories
- Remote wall sensor
- Supply-air temperature sensor
