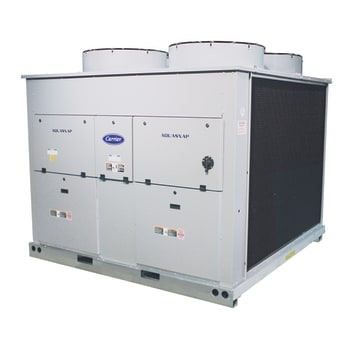

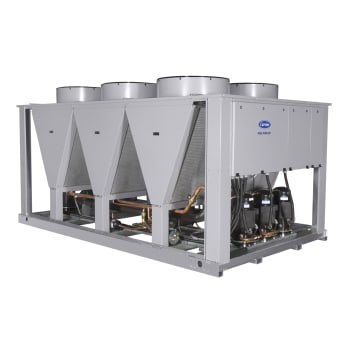

AquaSnap® Air-Cooled Liquid Chiller
30RAP

with Puron® Refrigerant (R-410A)

10 to 150 Nominal Tons

10 to 60 Nominal Tons with Greenspeed® Intelligence

The AquaSnap® 30RAP chiller is an effective all-in-one package that is easy to install and own. The chiller costs less to purchase and install than other chillers in its class, and operates quietly and efficiently. Value-added features include rotary scroll compression with optional digital compressor (010 to 090 units), Puron® refrigerant (R-410A), a low-sound AeroAcoustic™ fan system, easy to use ComfortLink™ controls, microchannel condenser coil technology, optional integrated hydronic pump package, and an accessory fluid storage tank (sizes 010-060 only).

The 30RAP is now available with optional Greenspeed® Intelligence for the sizes 011-060, delivering a quieter and much more efficient unit with IPLV up to 16.8.

Air-cooled chillers within the scope of the ACCL certification program are certified in accordance with the AHRI Air-Cooled Water-Chilling Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org.

carrier-AHRI-550-590-551-591_Air-Cooled_Chiller
carrier-intertek-ETL-listed-C-US
carrier-iso-9001

Performance Features

  • Full-load EER values up to 10.5 and IPLV values up to 15.8
  • Greenspeed Intelligence option for sizes 011-060 can raise IPLV up to 16.8 and sound reduction up to 4dBA
  • ASHRAE 90.1 compliant / AHRI 550/590 certified
  • High-efficiency rotary scroll compressors including digital compressor unloading (factory-installed option for 010-090 units)
  • Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) condenser coils (factory-installed option)
  • Hydronic pump package (factory-installed option) with optional VFD on sizes 070-150
  • Operation from -20 to 120 F ambient temperature (factory-installed option or field-installed accessory on sizes 018-150 with low ambient head pressure control)

Reliability Features

  • ETL (and ETL, Canada) listed
  • Galvanized steel cabinet with baked enamel powder or pre-painted finish on exterior panels passes 500-hour salt-spray test in accordance with the ASTM B-117 Standard
  • High and low-pressure protection/compressor overload protection
  • Self-contained 24-v CCN (Carrier Comfort Network™) controls including transformer
  • Hermetic scroll compressors and outdoor fan circuits are protected by circuit breakers or fuses
  • EXV (electronic expansion valve)

Maintenance Features

  • Over 15 diagnostic functions
  • Permanently lubricated fan motor bearings
  • Microchannel condenser coils offer simplified cleaning

Installation Features

  • Factory-charged with Puron refrigerant (R-410A)
  • All-in-one package
  • Single-point electrical connection available on all sizes. Dual point electrical connection available on sizes 070-150
  • Integral control transformer
  • Fluid loop storage tank designed to fit directly under unit (field-installed accessory on sizes 010-060)
  • On-the-ground or rooftop installation

Standard Warranty

  • 3 year coil parts only on Novation microchannel heat exchanger
  • One year from start-up or 18 months from shipment on all other parts
  • Extended warranty packages available

Factory-Installed Options

  • Variable speed condenser fans (Greenspeed Intelligence)
  • Hydronic pump package
  • Condenser coil options:
    • Microchannel:
      • Non-coated
      • E-coated
    • Aluminum fins (available on all sizes):
      • Non-coated
      • Pre-coated
      • E-coated
    • Copper fins (available on all sizes):
      • Non-coated
      • E-coated
  • Hot gas bypass (not available on sizes 010 and 015)
  • Digital compressor (sizes 010-090)
  • Non-fused disconnect (not available with dual point power or 208/230 V on sizes 100-150)
  • Value sound fans
  • Compressor sound blankets
  • Ultra-low sound
  • Security grilles/hail guards
  • Alternate packaging options
  • High short circuit current rating (not available with dual point power)
  • BACnet Communication
  • Motormaster® V low ambient control
  • Freeze protection (cooler heater)
  • Energy management module
  • GFI convenience outlet
  • Fluid loop expansion tank (sizes 010-060) and circuit setter provided with optional pump package

Field-Installed Accessories

  • Fluid loop storage tank (sizes 010-060)
  • Vibration isolation pads
  • Chillervisor System Manager III
  • Motormaster V low ambient control
  • Remote enhanced display
  • Energy management module
  • Navigator display
  • Touch Pilot display
  • BACnet translator control
  • LON translator control
  • Low ambient head pressure control(field-installed accessory)

30RAP Weights & Dimensions

Size Weight (lb) Weight (kg) Length (in) Length (mm) Width (in) Width (mm) Height (in) Height (mm)
011 762 346 66 1683 40 1025 67 1689
016 800 1125 66 1683 40 1025 67 1689
018 1125 510 88 2241 40 1021 67 1689
020 1133 514 88 2241 40 1021 67 1689
025 1242 564 88 2241 40 1021 79 1994
030 1283 582 88 2241 40 1021 79 1994
035 2163 981 88 2241 92 2340 67 1689
040 2185 991 88 2241 92 2340 67 1689
045 2238 1015 88 2241 92 2340 79 1994
050 2263 1026 88 2241 92 2340 79 1994
055 2369 1075 88 2241 92 2340 79 1994
060 2375 1077 88 2241 92 2340 79 1994
070 3410 1547 151 3838 88 2241 78 1976
080 3641 1652 151 3838 88 2241 78 1976
090 3697 1677 151 3838 88 2241 78 1976
100 4690 2127 191 4860 88 2241 78 1976
115 5008 2272 191 4860 88 2241 78 1976
130 6451 2926 232 5882 88 2241 78 1976
150 6938 3147 232 5882 88 2241 78 1976

Notes

1) Indicated weight is for chiller employing MCHX condenser coils and incorporating no pump.
2) Indicated height is for chiller employing the standard fan. The value sound fan reduces unit height by several inches.
