TruVu™ Equipment Touch EQT1-5
TruVu™ Equipment Touch
EQT1-5
Operator Interface

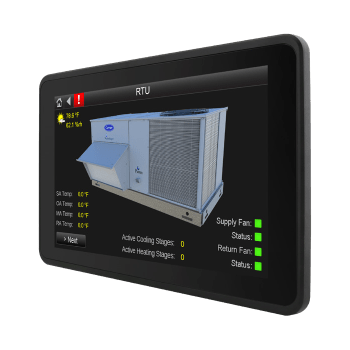

Wall-mounted user interface and configuration tool for managing BACnet® HVAC equipment
Carrier’s TruVu Equipment Touch provide building operators and technicians with visibility and control over a single piece of HVAC equipment via the Rnet or BACnet port. The interface features an illuminated color, capacitive touchscreen display and is designed to connect to a single i-Vu controller, making management of the connected HVAC equipment both intuitive and simple.
Application Features
- Draw occupants attention to important information with conditional alarming, color changes, and graphics
- Features a high resolution, capacitive multi-touch screen
- Support for 13 international languages and characters
- Can serve as a technician’s HVAC equipment interface
- Multi-level password protection for security
- Access virtually any point in the controller
- View and edit BACnet time schedules
- View all alarms in controller
- Change setpoints easily
Hardware Features
- Rugged, industrial grade display and a wide temperature range and vibration resistance
- Fanless cooling system and ultra-low power consumption
- Wall-mounted
Programming Features
- Supports standard Equipment Touch files
- Support for graphics
- USB-C port for local device updates
| Display | TruVu 5” IAQ Display |
| Resolution | 800 x 480 pixels (Wide VGA) |
| Touch | Capacitive Multi-Touch |
| Viewing Angle | Ultra-wide (nearly 180 degrees) |
| Max Colors | 24-bit |
| Power | 24 Vac (±15%), 5 VA, 50 - 60 HZ, Class 2 external power supply, 12-24 Vdc |
| Communication | Rnet |
| Ports | EIA-485 based serial port for Rnet; USB-C host port for firmware upgrades |
| Microcontroller | 32-bit |
| Mounting | Wall or panel mounting within the building interior |
| Temperature Sensor | Range: -4°F to 140°F (-20°C to 60°C)
Accuracy over 30°F to 100°F (-1°C to 38°C): +/-1.0°F (+/-0.55°C) Accuracy over full range: +/-2.0°F (+/-1.1°C) Resolution: 0.2°F (0.1°C) |
| Humidity Sensor | Range: 0% to 100% RH
Accuracy over 20% to 80% RH: +/-3.0% RH Accuracy over full range: +/-5.0% RH Resolution: 0.05% RH |
| Environmental Operating Range | -4 to 140°F (-20 to 60°C), 10–90% relative humidity, non-condensing |
| Memory | 32 MB Flash memory to store program code and screen file
16 MB RAM to store variable data and LCD data 8 kb Serial EEPROM to store non-volatile configuration data 1.6 MB maximum file size |
| Device Identification |
A serial number label beginning with EQA is on the back of the device
|
| Enclosure | ABS plastic with polycarbonate bezel |
| Real-Time Clock | 365/day real-time clock/calendar chip keeps track of time in the event of a power failure for a minimum of 3 days |
| Compliance | UL-916 (PAZX), CE, FCC Part 15-Subpart B-Class A |
Application Features
- Draw occupants attention to important information with conditional alarming, color changes, and graphics
- Features a high resolution, capacitive multi-touch screen
- Support for 13 international languages and characters
- Can serve as a technician’s HVAC equipment interface
- Multi-level password protection for security
- Access virtually any point in the controller
- View and edit BACnet time schedules
- View all alarms in controller
- Change setpoints easily
Hardware Features
- Rugged, industrial grade display and a wide temperature range and vibration resistance
- Fanless cooling system and ultra-low power consumption
- Wall-mounted
Programming Features
- Supports standard Equipment Touch files
- Support for graphics
- USB-C port for local device updates
| Display | TruVu 5” IAQ Display |
| Resolution | 800 x 480 pixels (Wide VGA) |
| Touch | Capacitive Multi-Touch |
| Viewing Angle | Ultra-wide (nearly 180 degrees) |
| Max Colors | 24-bit |
| Power | 24 Vac (±15%), 5 VA, 50 - 60 HZ, Class 2 external power supply, 12-24 Vdc |
| Communication | Rnet |
| Ports | EIA-485 based serial port for Rnet; USB-C host port for firmware upgrades |
| Microcontroller | 32-bit |
| Mounting | Wall or panel mounting within the building interior |
| Temperature Sensor | Range: -4°F to 140°F (-20°C to 60°C)
Accuracy over 30°F to 100°F (-1°C to 38°C): +/-1.0°F (+/-0.55°C) Accuracy over full range: +/-2.0°F (+/-1.1°C) Resolution: 0.2°F (0.1°C) |
| Humidity Sensor | Range: 0% to 100% RH
Accuracy over 20% to 80% RH: +/-3.0% RH Accuracy over full range: +/-5.0% RH Resolution: 0.05% RH |
| Environmental Operating Range | -4 to 140°F (-20 to 60°C), 10–90% relative humidity, non-condensing |
| Memory | 32 MB Flash memory to store program code and screen file
16 MB RAM to store variable data and LCD data 8 kb Serial EEPROM to store non-volatile configuration data 1.6 MB maximum file size |
| Device Identification |
A serial number label beginning with EQA is on the back of the device
|
| Enclosure | ABS plastic with polycarbonate bezel |
| Real-Time Clock | 365/day real-time clock/calendar chip keeps track of time in the event of a power failure for a minimum of 3 days |
| Compliance | UL-916 (PAZX), CE, FCC Part 15-Subpart B-Class A |
