TruVu™ Equipment Touch Displays
EQT3

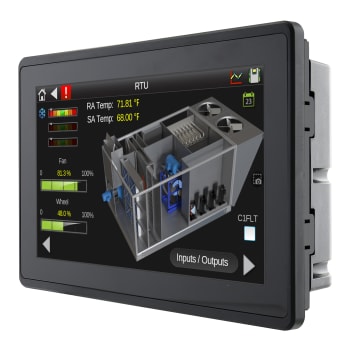

TruVu™ Equipment Touch EQT 7" Display (EQT3-7), 10.1" Display (EQT3-10), and 15" Display (EQT3-15)

Carrier’s Equipment Touch EQT3 displays are an integrated component of the i-Vu building automation system. They feature illuminated color pixel touchscreens in three different sizes and connect to a single i-Vu controller. Designed for panel or wall mounting, they provide building occupants, facility managers, and technicians a powerful user interface for managing HVAC equipment in a building.

  • Available in three sizes (7”, 10” & 15")
  • Rugged, industrial grade front display - suitable for mechanical rooms or board room mounting
  • Rnet connection or Service Port (either Ethernet or USB) connection
  • Fully customizable touchscreen for navigation and control with ViewBuilder
  • Default system screens such as scheduling and trends
  • Supports international languages
  • Support for graphics and animations
  • Screen captures can be saved to a USB flash drive
  • Built-in PDF viewer
  • View current space temperature
  • View operating mode (heat/cool/economizer)
  • Initiate timed local override
  • Multi-level password protection for security
  • Custom screens can show equipment graphic and operating status
  • Easy to view and/or edit equipment configuration, schedules, trends, and alarms with pre-designed screens
  • Trending with support for pinch zoom and swiping to move along time line
  • Works great as a technician tool and as a user interface

*A custom equipment touch file is required.

Power 50-60 Hz, Class 2, 24 VDC (±15%), 1A, 375A (EQT3-7), 417A (EQT3-10, EQT3-15)
Communication Ports Comm Input Port: EIA-485 port for connection to the Rnet sensor network (115kbps)
USB port: for upgrades, file copying, screen captures, and connection to service port on TruVu controllers
Micro USB On The Go (OTG) port: for factory programming
LAN Port: RJ-45 Ethernet connection to Service Port on TruVu controllers
System OS: Android 11.0
Processor: MT8365 Quad-core Cortex-A53 up to 2.0GHz
System Memory: : (7” and 10” models) 3 GB LPDDR4 RAM, (15” model) 4 GB LPDDR4 RAM
Storage: 32 GB onboard eMMC Flash storage
Environmental -4°F to 122°F (-20°C to 50°C), 10–90% RH, non-condensing
-13°F to 158°F (-25°C to 70°C)
Display Touch: Projected Capacitive Multi-Touch (P-CAP)
EQT3-15
Display: 15.6” TFT (Widescreen)
Resolution: 1366 x 768 pixels (252 ppi)
Brightness: 320 cd/m (typ.)
Contrast Ratio: 500:1 (typ.)
Viewing Angle: -85~85(H); -85~80(V)
Max Colors: 16.7M (8-bit)		 EQT3-10
Display: 10.1" TFT (Widescreen)
Resolution: 1280 x 800 pixels (149 ppi)
Brightness: 320 cd/m (typ.)
Contrast Ratio: 800:1 (typ.)
Viewing Angle: -85~85(H); -85~85(V)
Max Colors: 16.7M (8-bit)		 EQT3-7
Display: 7" TFT
Resolution: 1024 x 600 pixels (170 ppi)
Brightness: 320 cd/m (typ.)
Contrast Ratio: 1000:1 (typ.)
Viewing Angle: -75~70(H); -75~75(V)
Max Colors: 16.7M (8-bit)
Certifications CE (Class B), FCC (Class B), CAN/CSA C22.2 No. 62368-1-14, ANSI/UL (62368-1, 2nd Ed), Vibration tested to EN60068-2-6, IP65 rated (front) IP20 rated (rear)
