Carrier Cellular Modem CM-SRV
Carrier Cellular Modem
CM-SRV

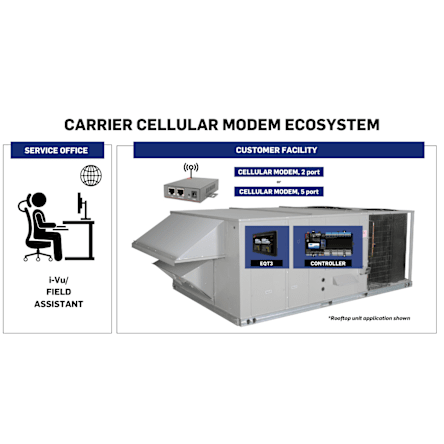

The Carrier cellular modem provides 4G LTE-A connectivity for Carrier TruVu controllers, enabling remote service and support. By utilizing Field Assistant or i-Vu software, users can effectively monitor, manage, and troubleshoot the connected HVAC equipment and downstream controllers remotely without being on-site.
- Robust industrial design and compact metal housing helps withstand demanding environments
- Communicates remotely through a self-hosted VPN server
- Pre-configured to communicate with controller’s ethernet service port for quick setup
- Provides access to the entire network through Field Assistant or i-Vu
- Secondary LAN ports allow simultaneous connection to EQT3 displays without sacrificing access to the ethernet service port
- Available in 3 different kits for a variety of applications
- Automatic reboot feature to minimize disruptions should it become disconnected
| CM-1-SRV-2ES
Carrier Cellular Modem Kit 1 |
CM-2-SRV-5ES
Carrier Cellular Modem Kit 2 |
CM-3-SRV-5ET
Carrier Cellular Modem Kit 3 |
|
|---|---|---|---|
| Kit Contents | |||

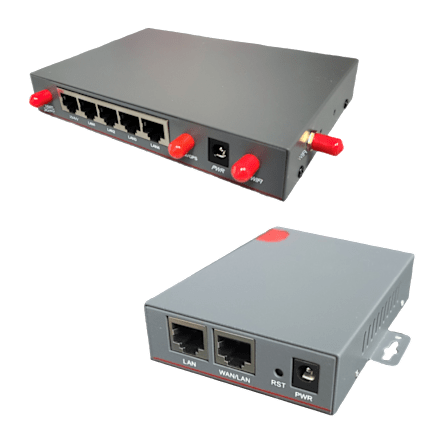

| Cellular Modem Router - 2 LAN Ports | X | ||
| Cellular Modem Router - 5 LAN Ports | X | X | |
| Power Supply | X | X | X |
| Ethernet Cable, CAT 5 | X | X | X |
| SIM(s) | X | X | X |
| Antenna, 6’ Cable, Magnetic (qty=2) | X | X | - |
| Antenna, Tamper Resistant | - | - | X |
| Antenna, 50’ Cable Extension | - | - | X |
| Data Plan Options (Choose one per kit) | |||
| 1 Year plan (up to 24GB/yr) | Part #/SKU: CM-24GB-DP | ||
| 2 Year plan (up to 48GB/2 yr) | Part #/SKU: CM-48GB-DP | ||
| 3 Year plan (up to 72GB/3 yr) | Part #/SKU: CM-72GB-DP | ||
| Data Plan Renewal Options (to renew data plan, navigate to the subscriptions tab on the estore) | |||
| 1 Year plan (up to 24GB/yr) | Part #/SKU: CM-24GB-DPRN | ||
| 2 Year plan (up to 48GB/2 yr) | Part #/SKU: CM-48GB-DPRN | ||
| 3 Year plan (up to 72GB/3 yr) | Part #/SKU: CM-72GB-DPRN | ||
| Specifications | |||
| Applicable Environment | -22 to 167°F (-30 to 75°C), 95% RH max., non-condensing | ||
| Interface Type | 2x1 Gbps ports (RJ45), LAN | 5x1 Gbps ports (RJ45), LAN | |
| Carriers | Dual: Verizon (primary) and AT&T | ||
| Communication | 4G LTE-A | ||
| Peak Data Speeds LTE | Download 300 Mbps/Upload 50 Mbps | ||
| SIM | 2FF | ||
| Compliance | FCC/IC, ISO, UL, CE, RoHS | ||
| Power | |||
| Power Supply | 12VDC 1500mA wall mounted power supply | ||
| Power Consumption | Idle: < 45mA @12VDC, Data: < 300mA @12VDC, Average: 150 mA@12VDC | ||
| Accessories | |||
| Tamper Resistent Antenna | Part #/SKU (Accessory): CM-ANTT | ||
| Antenna, 50’ Cable Extension (qty=2) | Part #/SKU (Accessory): CM-EXT50 | ||
- Robust industrial design and compact metal housing helps withstand demanding environments
- Communicates remotely through a self-hosted VPN server
- Pre-configured to communicate with controller’s ethernet service port for quick setup
- Provides access to the entire network through Field Assistant or i-Vu
- Secondary LAN ports allow simultaneous connection to EQT3 displays without sacrificing access to the ethernet service port
- Available in 3 different kits for a variety of applications
- Automatic reboot feature to minimize disruptions should it become disconnected
| CM-1-SRV-2ES
Carrier Cellular Modem Kit 1 |
CM-2-SRV-5ES
Carrier Cellular Modem Kit 2 |
CM-3-SRV-5ET
Carrier Cellular Modem Kit 3 |
|
|---|---|---|---|
| Kit Contents | |||
| Cellular Modem Router - 2 LAN Ports | X | ||
| Cellular Modem Router - 5 LAN Ports | X | X | |
| Power Supply | X | X | X |
| Ethernet Cable, CAT 5 | X | X | X |
| SIM(s) | X | X | X |
| Antenna, 6’ Cable, Magnetic (qty=2) | X | X | - |
| Antenna, Tamper Resistant | - | - | X |
| Antenna, 50’ Cable Extension | - | - | X |
| Data Plan Options (Choose one per kit) | |||
| 1 Year plan (up to 24GB/yr) | Part #/SKU: CM-24GB-DP | ||
| 2 Year plan (up to 48GB/2 yr) | Part #/SKU: CM-48GB-DP | ||
| 3 Year plan (up to 72GB/3 yr) | Part #/SKU: CM-72GB-DP | ||
| Data Plan Renewal Options (to renew data plan, navigate to the subscriptions tab on the estore) | |||
| 1 Year plan (up to 24GB/yr) | Part #/SKU: CM-24GB-DPRN | ||
| 2 Year plan (up to 48GB/2 yr) | Part #/SKU: CM-48GB-DPRN | ||
| 3 Year plan (up to 72GB/3 yr) | Part #/SKU: CM-72GB-DPRN | ||
| Specifications | |||
| Applicable Environment | -22 to 167°F (-30 to 75°C), 95% RH max., non-condensing | ||
| Interface Type | 2x1 Gbps ports (RJ45), LAN | 5x1 Gbps ports (RJ45), LAN | |
| Carriers | Dual: Verizon (primary) and AT&T | ||
| Communication | 4G LTE-A | ||
| Peak Data Speeds LTE | Download 300 Mbps/Upload 50 Mbps | ||
| SIM | 2FF | ||
| Compliance | FCC/IC, ISO, UL, CE, RoHS | ||
| Power | |||
| Power Supply | 12VDC 1500mA wall mounted power supply | ||
| Power Consumption | Idle: < 45mA @12VDC, Data: < 300mA @12VDC, Average: 150 mA@12VDC | ||
| Accessories | |||
| Tamper Resistent Antenna | Part #/SKU (Accessory): CM-ANTT | ||
| Antenna, 50’ Cable Extension (qty=2) | Part #/SKU (Accessory): CM-EXT50 | ||
