ZS2 IAQ Sensors ZS2-IAQ
ZS2 IAQ Sensors
ZS2-IAQ
Indoor Air Quality Sensors
Carrier’s line of intelligent ZS2 Indoor Air Quality (IAQ) Sensors provide the function and flexibility you need to manage the conditions important to the comfort, productivity, and sustainability of your building. The ZS2 IAQ sensors are designed to measure room temperature, relative humidity, carbon dioxide (CO2), volatile organic compounds (VOCs), total volatile organic compounds (TVOCs), and particulate matter 1.0, 2.5 and 10 micrometers and smaller (PM 1.0, 2.5 and 10). These sensors are available in a variety of zone sensing combinations to address your application needs. Designed to work with the i-Vu building automation system, the ZS2 IAQ sensor line includes the ZS2 Standard and ZS2 Plus, and come in white or black models.

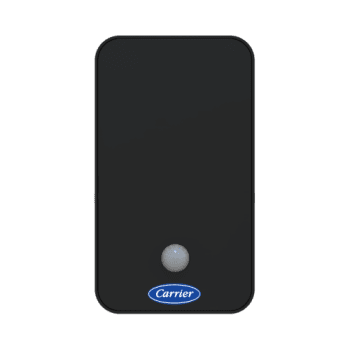

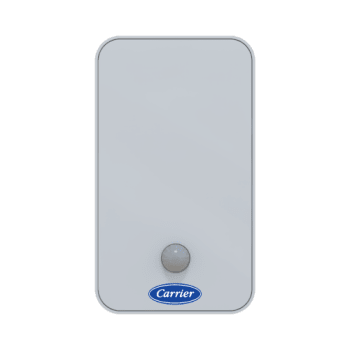

| ZS2 Standard
ZS2-7-HCMPV-CAR* ZS2-7-HCMPV-B-CAR* |

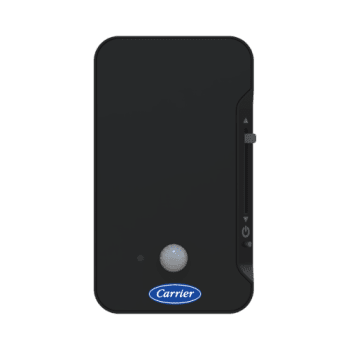

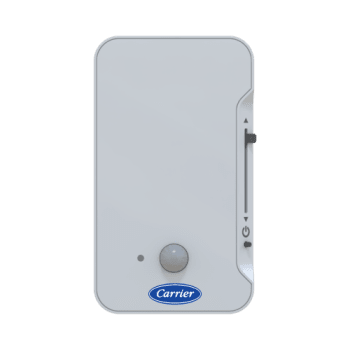

ZS2 Plus
ZS2PL-7-HCMPV-CAR* ZS2PL-7-HCMPV-B-CAR* |
|
|---|---|---|
| Temp, Humidity, Motion, CO2, VOC, TVOC and PM 1.0, 2.5 and 10 options | ✔ | ✔ |
| Addressable/supports daisy-chaining | ✔ | ✔ |
| Hidden communication port | ✔ | ✔ |
| Occupancy status indicator | ✖ | ✔ |
| Push-button occupancy controls | ✖ | ✔ |
| Setpoint adjust | ✖ | ✔ |
| Sensing Element | Range | Accuracy |
|---|---|---|
| Temperature w/ any Option (excluding Humidity) | -4° to 122° F (-20° C to 50° C) | ±0.35° F (0.2° C) |
| Temperature w/ Humidity and any Option | 50° F to 104° F (10° C to 40° C) | ±0.5° F (0.3° C) |
| Humidity | 20% to 80% | ±1.8% typical |
| Carbon Dioxide (CO2) | 400 to 1250 PPM
1250 to 2000 PPM |
±30PPM or +/-3% of reading (greater of two)
±5% of reading plus 30 PPM |
| Volatile Organic Compounds (VOC) | 0 to 2,000 PPM CO2 | ±100 PPM |
| Total volatile organic compounds (TVOC) | 125 to 600PPB | 20PPB + 30% of reading |
| Particulate Matter (PM) | 0 to 1,000µ/m3 (max) | 1 to 100µ/m3 ±15µ/m3
101 to 500µ/m3 ±15 % |
| Power Requirements | Sensor Type | Power Required |
| Temperature, PM, CO2, TVOC, RH, VOC, PIR | All Models | 12 Vdc @ 154 mA |
| Specifications | ||
| Power Supply | A controller supplies the Rnet sensor network with 12 Vdc @ 210 mA. Additional power may be required for your application. See sensor power requirements above. | |
| Communication | 115 kbps Rnet connection between sensor(s) and controller
15 sensors max per Rnet network; 5 sensors max per control program |
|
| Local access port | For connecting a laptop computer to the local equipment or i-Vu® network for maintenance and commissioning | |
| Motion sensing | Sensor Type: passive infrared (PIR)
Distance:16.4 ft. (5 m) Detection range: (HxV) 100° x 82° Movement speed: 2.62 to 3.94 ft/s (0.8 to 1.2 m/s) Detection object: 27.56 x 9.84 in. (700 x 250 mm) |
|
| Environmental operating range | 32° to 122° F (0° - 50° C), 10% to 90% relative humidity, non-condensing | |
| Mounting dimensions | Standard 4”x 2” electrical box using provided 6/32” x 1/2” mounting screws | |
