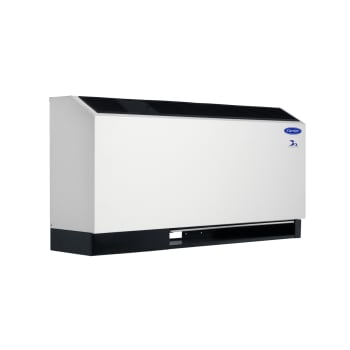

Aquazone™ Water-Cooled Console Water Source Heat Pump 50PEC
Aquazone™ Water-Cooled Console Water Source Heat Pump
50PEC
with Puron® AdvanceRefrigerant (R-454b)
3/4 to 1-1/2 Nominal Tons
The 50PEC indoor water-cooled console heat pump utilizes Puron Advance non-ozone depleting R-454b refrigerant. The unit provides a practical and economical approach for comfort conditioning requirements in replacement, renovation, and new construction applications, both for traditional and geothermal applications.
Performance Features
- EERs up to 22.4
- Capacities of 3/4, 1, 1-1/4 , and 1-1/2 tons
- Puron® Advance non-ozone depleting, low GWP R-454b refrigerant
- Water loop (boiler/tower and ground loop/water) application use with operating temperature range of 20° to 110°F
- Standard extended range design for open loop and geothermal applications
- Standard microprocessor controls with optional Carrier TruVu DDC controls
- Fully insulated unit with acoustic type insulation
- Motorized fresh air damper option
- TXV (thermostatic expansion valve) controlled
- Copper or cupronickel heat exchanger
- Exceeds ASHRAE 90.1 performance requirements
- Rated in accordance with ARI/ISO 13256-1:2007
Maintenance Features
- Large access panel
- All service may be done through large removable front panel
- Quick electrical disconnects on components
- Easy removal of control box for access to all refrigerant components
- Refrigerant circuit equipped with high/low pressure ports
- One inch filter
Installation Features
- Free return connections
- Right or left hand piping connections
- Ability to pipe in series
- Adaptable cabinet and subbase configurations
- All units pre-wired and factory charged with refrigerant
- Unit condensate pipe included
- Water and condensate connections are sweat connections, FPT connections available
- Disconnect switch
- Single point electrical connection
Reliability Features
- Galvanized steel construction
- Coated and insulated condensate pan
- Epoxy-Coated Copper Tubing /w Aluminum Fin coils available for corrosive environments
- Sloped top cabinet with powder paint finish
- Reversing valve (4-way), water-to-refrigerant coaxial coil, and enhanced aluminum fin/rifled copper tube air-to-refrigerant heat exchanger
- Microprocessor control with TruVu DDC (Direct Digital Controls) option
- CSA and ETL certified
Standard Limited Warranty
- One-year unit
- 5-year compressor
- Extended warranty packages available
Factory Installed Options
- Carrier TruVu DDC Controls
- Compressor status, pump and EMS control relaus
- Copper or cupronickel heat exchanger
- Threaded water and condensate connections (FPT)
- Disconnect switch
- OA damper
Field Installed Accessories
- Aquazone thermostats
- Ball valves, solenoid valves, and Y strainers
- Fire rated hoses
- Remote sensors
Performance Features
- EERs up to 22.4
- Capacities of 3/4, 1, 1-1/4 , and 1-1/2 tons
- Puron® Advance non-ozone depleting, low GWP R-454b refrigerant
- Water loop (boiler/tower and ground loop/water) application use with operating temperature range of 20° to 110°F
- Standard extended range design for open loop and geothermal applications
- Standard microprocessor controls with optional Carrier TruVu DDC controls
- Fully insulated unit with acoustic type insulation
- Motorized fresh air damper option
- TXV (thermostatic expansion valve) controlled
- Copper or cupronickel heat exchanger
- Exceeds ASHRAE 90.1 performance requirements
- Rated in accordance with ARI/ISO 13256-1:2007
Maintenance Features
- Large access panel
- All service may be done through large removable front panel
- Quick electrical disconnects on components
- Easy removal of control box for access to all refrigerant components
- Refrigerant circuit equipped with high/low pressure ports
- One inch filter
Installation Features
- Free return connections
- Right or left hand piping connections
- Ability to pipe in series
- Adaptable cabinet and subbase configurations
- All units pre-wired and factory charged with refrigerant
- Unit condensate pipe included
- Water and condensate connections are sweat connections, FPT connections available
- Disconnect switch
- Single point electrical connection
Reliability Features
- Galvanized steel construction
- Coated and insulated condensate pan
- Epoxy-Coated Copper Tubing /w Aluminum Fin coils available for corrosive environments
- Sloped top cabinet with powder paint finish
- Reversing valve (4-way), water-to-refrigerant coaxial coil, and enhanced aluminum fin/rifled copper tube air-to-refrigerant heat exchanger
- Microprocessor control with TruVu DDC (Direct Digital Controls) option
- CSA and ETL certified
Standard Limited Warranty
- One-year unit
- 5-year compressor
- Extended warranty packages available
Factory Installed Options
- Carrier TruVu DDC Controls
- Compressor status, pump and EMS control relaus
- Copper or cupronickel heat exchanger
- Threaded water and condensate connections (FPT)
- Disconnect switch
- OA damper
Field Installed Accessories
- Aquazone thermostats
- Ball valves, solenoid valves, and Y strainers
- Fire rated hoses
- Remote sensors
California residents please see Proposition 65
Works Well With

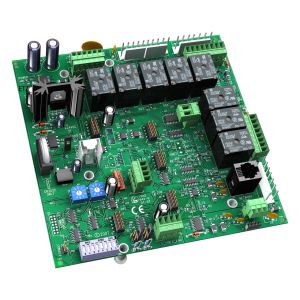

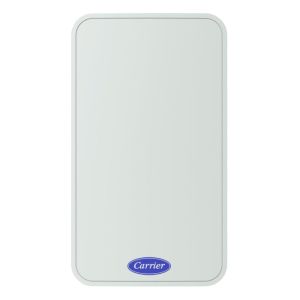

Controls
