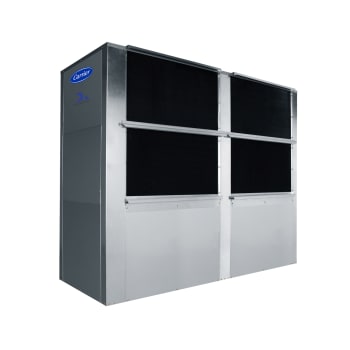

Aquazone™ Water-Cooled Large Capacity Water Source Heat Pump
50VQP

with Puron® Advance Refrigerant (R-454b)

6 to 30 Nominal Tons

The 50VQP large capacity, indoor water-cooled heat pump units are designed for vertical installation with a variety of airflow configurations. These units utilize Puron Advance Refrigerant (R-454b) and provide a practical and economical approach for comfort conditioning requirements in both traditional and geothermal replacement, renovation, and new construction applications.


carrier-ASHRAE-90-1-certification
carrier-intertek-ETL-listed-C-US

Performance Features

  • EERs up to 24.0
  • Capacities from 6 to 30 tons
  • Belt driven centrifugal blowers
  • High-efficiency, scroll compressors
  • Extended range application for use with boiler/tower, open loop and geothermal applications
  • Fully insulated unit with acoustic type insulation
  • Dual refrigerant circuits
  • Computer selected vibration isolators
  • Mute package for quiet operation
  • Digital control system including A2L leak detection safety features
  • Equipped with performance monitor to ensure efficient heat pump operation
  • TXV (thermostatic expansion valve) controlled
  • Copper or cupronickel heat exchanger
  • Exceeds ASHRAE 90.1 performance requirements
  • ARI/ISO 13256-1 certified (sizes 072-120)

Maintenance Features

  • Three service panels for servicing compressor section
  • All service may be done through large removable front or side panels
  • Blower housing can be serviced without disconnecting ductwork
  • Quick electrical disconnects on components
  • Easy removal of control box for access to all refrigerant components
  • Refrigerant circuit equipped with high/low pressure ports
  • No tools required to change filters
  • Standard 1-in. filter

Installation Features

  • Pre-wired and factory charged with Puron Advance refrigerant (R-454b)
  • Ducted or free return connections
  • Internally trapped condensate drain
  • Water and condensate connections are FPT and secured to cabinet

Reliability Features

  • Galvanized steel construction
  • Coated and insulated stainless steel condensate pan
  • Two-way motorized control valve
  • Tin-Electro-Plated Copper Tubing /w Aluminum fin coils for corrosive environments
  • Computer selected vibration isolation
  • Reversing valve (4-way), water-to-refrigerant coaxial coil, and enhanced aluminum fin/rifled copper tube air-to-refrigerant heat exchanger standard
  • Microprocessor control with DDC (Direct Digital Controls) options
  • CSA and ETL certified

Standard Limited Warranty

  • 5 year parts only on compressor
  • One year parts only on all other parts
  • Extended warranty packages available

Factory-Installed Options

  • Copper or cupronickel heat exchangers
  • Carrier TruVu DDC Controls with BACNet IP communication
  • SCU Open DDC controls for VAV applications
  • Sound attenuation (mute) package
  • Cooling Only operation
  • Take-Apart Construction
  • Condenserless for use with remote air-cooled condenser
  • Hot Water Coil
  • Boilerless Electrical Heat, Compressors Status, Pump Interlock and EMS control relays
  • Hot gas reheat
  • Waterside economizer
  • Hot gas bypass
  • Tin-Electro-Plated Copper Tubing /w Aluminum fin coils

Field-Installed Accessories

  • Aquazone thermostats
  • Ball valves, solenoid valves, and Y strainers
  • Fire rated hoses
  • Hose kit assemblies
  • Non-programmable thermostat
  • Two-way motorized control valve
  • Remote sensors
  • Electric duct heater
