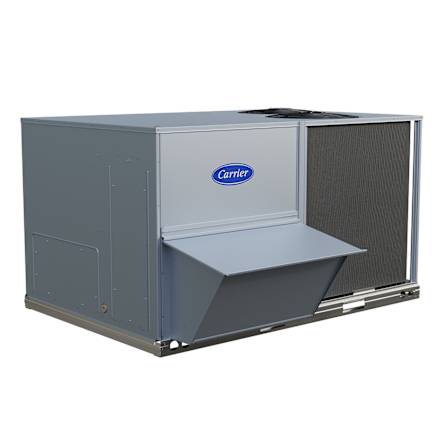

WeatherMaster® Puron Advance™ Single-Packaged Rooftop Units with EcoBlue™ Technology 48GE
WeatherMaster® Puron Advance™ Single-Packaged Rooftop Units with EcoBlue™ Technology
48GE
Gas Heating / Electric Cooling
3 to 25 Nominal Tons
Carrier’s WeatherMaster® rooftops (RTU) with Puron Advance™ (R-454B) and EcoBlue™ Fan Technology, offer an environmentally sustainable solution for a brighter future. With a GWP of 466 and similar performance to R-410A, Puron Advance easily exceeds the EPA's new, stringent, <700 GWP refrigerant requirement. Our direct drive EcoBlue™ indoor fan system uses a Vane Axial fan and electronically commutated motor. The benefit is clear: when compared to legacy belt drive systems, this Vane Axial design has 75% fewer moving parts, uses up to 40% less energy, and has no belts, blower bearings, or shaft. Our WeatherMaster® 48/50GE 3 to 6 ton units are specifically designed to fit on Carrier roof curbs installed as far back as 1989. That makes replacements fast and easy, eliminating the need for curb adapters or different utility connections.
Performance Features
- Puron Advance (R-454B) refrigerant meets and exceeds EPA’s new Low GWP requirements
- New – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard
- Direct Drive EcoBlue™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor
- Two-stage cooling capacity control on all models
- New Unit Control Board with intuitive quick fan speed adjustment
- SEER2 up to 16.8, IEER up to 17.5
- Gas efficiencies up to 81%
- Cooling operating range up to 125 °F (52°C) and down to 40°F (4°C) using winter start kit
- Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
- Exclusive IGC solid-state control for on-board diagnostics with LED error code designation and burner control logic
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
- Units meet ASHRAE 90.1 energy efficiency levels.
Maintenance Features
- New unit control board facilitating simple safety circuit troubleshooting and simplified control box arrangement as well as easy intuitive fan speed adjustment
- Access panels with easy grip handles
- Innovative, easy starting, no-strip screw feature on unit access panels
- Tool-less filter access door
- Optional hinged access panels also available
- NEW Direct Drive – EcoBlue™ Technology Indoor fan system uses Vane Axial fan design and electronically commutated motor with beltless design
- Two-inch disposable return air filters
Installation Features
- Same footprint as prior Carrier models for that original fit; reduces installation costs and time
- Field convertible from vertical to horizontal airflow configuration on units up to 15 tons
- Provisions for thru-the-bottom power entry capability as standard
- Single point gas, electric, and controls connections
- Full perimeter base rail with built-in rigging adapters and fork truck slots
Reliability Features
- A2L leak detection and dissipation system standard
- Scroll compressors with internal line-break overload protection
- 24-volt control circuit protected with resettable circuit breaker
- Permanently lubricated direct-drive ECM evaporator-fan motor
- Totally enclosed condenser motors with permanently lubricated bearings
- Low pressure and high-pressure switch protection
- Exclusive IGC anti-cycle protection for gas heat operation
- Solid-state electronic direct spark ignition system and flame roll-out safety protector
Standard Limited Warranty
- 10 years parts only heat exchanger - aluminized
- 15 years parts only heat exchanger - stainless steel
- 10 years parts only heat exchanger – Ultra/Low NOx models
- 5 years parts only compressor
- 3 year SystemVu™ controller
- One year parts only on all other parts
- Additional extended warranty packages available
Factory-Installed Options
- Temperature Sensing EconoMi$er with relief
- Enthalpy Sensing EconoMi$er with relief
- Humidi-MiZer® Adaptive Dehumidification System
- Multiple Gas Heat Sizes
- Stainless Steel Gas Heat Exchangers
- Return Air Smoke Detector
- Supply Air Smoke Detector
- CO2 Sensor
- Condensate Overflow Protection
- Multiple Static Fan Capabilities
- Phase Monitor/Protection
- Thru-The-Base Utility Connections
- Louvered Hail Guards
- Non-Fused Disconnect Switch
- 4" MERV-13 Filters
- Low Ambient Controls
- Hinged Access Panels
- HACR
- Unpowered Convenience Outlet
- Powered Convenience Outlet
- Coated Coils:
- Pre-Coat
- E-Coat
- Copper/Copper
- Electrical Mechanical Controls
- SystemVu™ Integrated Communicating Controls
- Extended Warranty Protection Plans
Gas Heating/Electric Cooling Models (48GE)
| Nominal Cooling Ton Size | Cooling Stages | AHRI Efficiency (SEER2) IEER | Dimensions (in) LxWxH | Low Gas Heating Input (Btuh) | Medium Gas Heating Input (Btuh) | High Gas Heating Input (Btuh) | Approx. Unit Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 3 | 2 | (16.8) | 74 x 46 x 33 | 67 | 110 | -- | 535 |
| 4 | 150 | 555 | |||||
| 5 | 600 | ||||||
| 6 | 17.5 | 88 x 59 x 41 | 72 | 125 | 775 | ||
| 7.5 | 88 x 59 x 49 | 125 | 180 | 224 | 893 | ||
| 8.5 | |||||||
| 10 | 180 | 224 | 250 | 1037 | |||
| 12.5 | 16.5 | 116 x 63 x 57 | 150 | 180 | 240 | 1390 | |
| 15 | Info to follow | Info to follow | Info to follow | Info to follow | Info to follow | Info to follow | |
| 17.5 | |||||||
| 20 | |||||||
| 25 |
AHRI = Air-Conditioning, Heating & Refrigeration Institute
ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
IEER = Integrated Energy Efficiency Ratio
SEER2 = Seasonal Energy Efficiency Ratio 2
NOTES
1. Rated and certified under ARI Standard 210/240 3-5 ton or 340/360 6+ ton, as appropriate.
2. Ratings are based on:
» Cooling Standard: 80°F (27°C) db, 67°F (19°C) wb indoor air temp and 95°F (35°C) db outdoor air temp.
3. 48GE units generally comply with ASHRAE 90.1-2016 Energy Standard. Please review size specific data for compliance.
4. 48GE units comply with US Energy Policy Act (2005).
