WeatherMaster® Puron Advance Single-Packaged Hybrid Heat Rooftop Units with EcoBlue™ Technology 48QE
WeatherMaster® Puron Advance Single-Packaged Hybrid Heat Rooftop Units with EcoBlue™ Technology
48QE
Hybrid Heat Rooftop with EcoBlue™ Technology
3 to 25 Nominal Tons

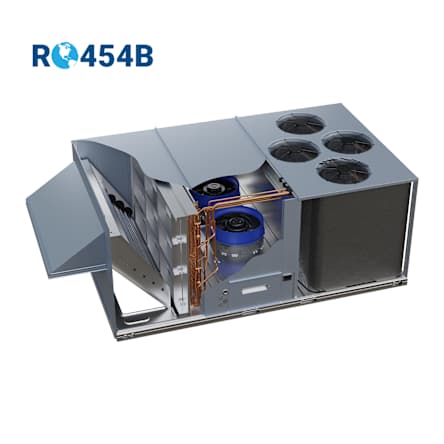

Carrier’s WeatherMaster® rooftops (RTU) with Puron Advance™ (R-454B) and EcoBlue™ Fan Technology, offer an environmentally sustainable solution for a brighter future. With a GWP of 466 and similar performance to R-410A, Puron Advance easily exceeds the EPA's new, stringent, <700 GWP refrigerant requirement. Our direct drive EcoBlue™ indoor fan system uses a Vane Axial fan and electronically commutated motor. The benefit is clear: when compared to legacy belt drive systems, this Vane Axial design has 75% fewer moving parts, uses up to 40% less energy, and has no belts, blower bearings, or shaft. Our WeatherMaster® 48QE rooftop units offer a heat pump compression system with auxiliary gas heaters. All units come standard with stainless steel gas heat exchangers and SystemVu™ controls. Units can operate as a heatpump, hybrid heat unit (gas and heatpump simultaneously) or as a gas heat unit when ambient temperatures dip below the low ambient cutoff. 48QE models offer flexible operation for occupant comfort in any climate!
Performance Features
- Puron Advance (R-454B) refrigerant meets and exceeds EPA’s new Low GWP requirements
- SystemVu™ digital controller included standard to allow for adjustable gas changeover setpoints, flexible operation and either thermostat or DDC control
- New – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard
- Direct Drive EcoBlue™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor
- Two-stage cooling capacity control on all models
- IEER up to 17.0, COP up to 3.5
- Cooling operating range up to 125 °F (52°C) and down to 40°F (-4°C).
- Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
- Exclusive IGC solid-state control for on-board diagnostics with LED error code designation, burner control logic and energy saving indoor fan motor delay
- Units meet and exceed ASHRAE 90.1 energy efficiency levels.
Maintenance Features
- Large access panels with easy grip handles
- Innovative, easy starting, no-strip screw feature on unit access panels
- Two-inch disposable return air filters
- Tool-less filter access door
- New Vane Axial evaporator-fan system has no fan belts, pullies, blower shaft and blower bearings with slide out design
- SystemVu™ includes onboard diagnostics with alert and alarm LEDs.
Installation Features
- Same footprint as prior Carrier models for that original fit; reduces installation costs and time
- Available in vertical and horizontal airflow configurations
- Provisions for thru-the-bottom power entry capability as standard
- Single point electric, gas, and controls connections available
- Full perimeter base rail with built-in rigging adapters and fork truck slots
Reliability Features
- A2L leak detection and dissipation system standard
- Highly protected Tandem Scroll compressors with internal line-break overload protection
- 24-volt control circuit protected with resettable circuit breaker
- Permanently lubricated evaporator-fan motor
- Totally enclosed condenser motors with permanently lubricated bearings
- Loss of charge, freeze protection, and high-pressure switches
- Exclusive IGC anti-cycle protection for gas heat operation
- Solid-state electronic direct spark ignition system
- Flame roll-out safety protector
- Liquid line filter drier on each circuit
Standard Limited Warranty
- 15 years parts only heat exchanger - stainless steel
- 5 years parts only compressor
- 3 year SystemVu™ controller
- One year parts only on all other parts
- Additional extended warranty packages available
Factory-Installed Options
- Temperature Sensing Economizer with barometric relief
- Enthalpy Sensing Economizer with barometric relief
- Multiple Gas Heat Sizes
- Return Air Smoke Detector
- Supply Air Smoke Detector
- CO2 Sensor
- Condensate Overflow Protection
- Multiple Static Fan Capabilities
- Phase Monitor/Protection
- Thru-The-Base Utility Connections
- Louvered Hail Guards
- Non-Fused Disconnect Switch
- HACR Breaker
- Foil Face Insulation
- HSCCR
- 4” MERV- 13 Filters
- Hinged Access Panels
- Unpowered Convenience Outlet
- Powered Convenience Outlet
- Coated Coils: Pre-Coat, E-Coat or Copper/Copper
- Electrical Mechanical Controls
- SystemVu™ Integrated Communicating Controls
Dual Fuel Hybrid Heat Pump (48QE)
| Nominal Cooling Ton Size | Cooling Stages | AHRI Efficiency (SEER2) IEER | Dimensions (in) LxWxH | At 47°F | At 17°F | Approx Unit Weight (lbs) | ||
|---|---|---|---|---|---|---|---|---|
| Heating Capacity (Btuh) | (HSPF2) COP | Heating Capacity (Btuh) | (HSPF2) COP | |||||
| 3 | 2 | - | - | - | - | - | - | - |
| 4 | ||||||||
| 5 | ||||||||
| 6 | ||||||||
| 7.5 | ||||||||
| 8.5 | ||||||||
| 10 | ||||||||
| 12.5 | ||||||||
| 15 | 17.0 | 141x87x50 | 96000 | 2.30 | 166000 | 3.50 | 1990 | |
| 20 | 16.2 | 158x87x58 | 134000 | 2.25 | 232000 | 3.40 | 2382 | |
| 25 | 15.3 | 172000 | 2.20 | 300000 | 2445 | |||
- = Information to Follow
AHRI = Air-Conditioning, Heating & Refrigeration Institute
ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
IEER = Integrated Energy Efficiency Ratio
SEER2 = Seasonal Energy Efficiency Ratio 2
HSPF2 = Heating Seasonal Performance Factor 2
COP = Coefficient of Performance
NOTES
1. Rated and certified under ARI Standard 210/240 3-5 ton or 340/360 6+-ton, as appropriate.
2. Ratings are based on:
» Cooling Standard: 80°F (27°C) db, 67°F (19°C) wb indoor air temp and 95°F (35°C) db outdoor air temp.
3. 48QE units generally comply with ASHRAE 90.1-2010 Energy Standard. Please review size specific data for compliance.
4. 48QE units comply with US Energy Policy Act (2005).
Performance Features
- Puron Advance (R-454B) refrigerant meets and exceeds EPA’s new Low GWP requirements
- SystemVu™ digital controller included standard to allow for adjustable gas changeover setpoints, flexible operation and either thermostat or DDC control
- New – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard
- Direct Drive EcoBlue™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor
- Two-stage cooling capacity control on all models
- IEER up to 17.0, COP up to 3.5
- Cooling operating range up to 125 °F (52°C) and down to 40°F (-4°C).
- Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
- Exclusive IGC solid-state control for on-board diagnostics with LED error code designation, burner control logic and energy saving indoor fan motor delay
- Units meet and exceed ASHRAE 90.1 energy efficiency levels.
Maintenance Features
- Large access panels with easy grip handles
- Innovative, easy starting, no-strip screw feature on unit access panels
- Two-inch disposable return air filters
- Tool-less filter access door
- New Vane Axial evaporator-fan system has no fan belts, pullies, blower shaft and blower bearings with slide out design
- SystemVu™ includes onboard diagnostics with alert and alarm LEDs.
Installation Features
- Same footprint as prior Carrier models for that original fit; reduces installation costs and time
- Available in vertical and horizontal airflow configurations
- Provisions for thru-the-bottom power entry capability as standard
- Single point electric, gas, and controls connections available
- Full perimeter base rail with built-in rigging adapters and fork truck slots
Reliability Features
- A2L leak detection and dissipation system standard
- Highly protected Tandem Scroll compressors with internal line-break overload protection
- 24-volt control circuit protected with resettable circuit breaker
- Permanently lubricated evaporator-fan motor
- Totally enclosed condenser motors with permanently lubricated bearings
- Loss of charge, freeze protection, and high-pressure switches
- Exclusive IGC anti-cycle protection for gas heat operation
- Solid-state electronic direct spark ignition system
- Flame roll-out safety protector
- Liquid line filter drier on each circuit
Standard Limited Warranty
- 15 years parts only heat exchanger - stainless steel
- 5 years parts only compressor
- 3 year SystemVu™ controller
- One year parts only on all other parts
- Additional extended warranty packages available
Factory-Installed Options
- Temperature Sensing Economizer with barometric relief
- Enthalpy Sensing Economizer with barometric relief
- Multiple Gas Heat Sizes
- Return Air Smoke Detector
- Supply Air Smoke Detector
- CO2 Sensor
- Condensate Overflow Protection
- Multiple Static Fan Capabilities
- Phase Monitor/Protection
- Thru-The-Base Utility Connections
- Louvered Hail Guards
- Non-Fused Disconnect Switch
- HACR Breaker
- Foil Face Insulation
- HSCCR
- 4” MERV- 13 Filters
- Hinged Access Panels
- Unpowered Convenience Outlet
- Powered Convenience Outlet
- Coated Coils: Pre-Coat, E-Coat or Copper/Copper
- Electrical Mechanical Controls
- SystemVu™ Integrated Communicating Controls
Dual Fuel Hybrid Heat Pump (48QE)
| Nominal Cooling Ton Size | Cooling Stages | AHRI Efficiency (SEER2) IEER | Dimensions (in) LxWxH | At 47°F | At 17°F | Approx Unit Weight (lbs) | ||
|---|---|---|---|---|---|---|---|---|
| Heating Capacity (Btuh) | (HSPF2) COP | Heating Capacity (Btuh) | (HSPF2) COP | |||||
| 3 | 2 | - | - | - | - | - | - | - |
| 4 | ||||||||
| 5 | ||||||||
| 6 | ||||||||
| 7.5 | ||||||||
| 8.5 | ||||||||
| 10 | ||||||||
| 12.5 | ||||||||
| 15 | 17.0 | 141x87x50 | 96000 | 2.30 | 166000 | 3.50 | 1990 | |
| 20 | 16.2 | 158x87x58 | 134000 | 2.25 | 232000 | 3.40 | 2382 | |
| 25 | 15.3 | 172000 | 2.20 | 300000 | 2445 | |||
- = Information to Follow
AHRI = Air-Conditioning, Heating & Refrigeration Institute
ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
IEER = Integrated Energy Efficiency Ratio
SEER2 = Seasonal Energy Efficiency Ratio 2
HSPF2 = Heating Seasonal Performance Factor 2
COP = Coefficient of Performance
NOTES
1. Rated and certified under ARI Standard 210/240 3-5 ton or 340/360 6+-ton, as appropriate.
2. Ratings are based on:
» Cooling Standard: 80°F (27°C) db, 67°F (19°C) wb indoor air temp and 95°F (35°C) db outdoor air temp.
3. 48QE units generally comply with ASHRAE 90.1-2010 Energy Standard. Please review size specific data for compliance.
4. 48QE units comply with US Energy Policy Act (2005).
