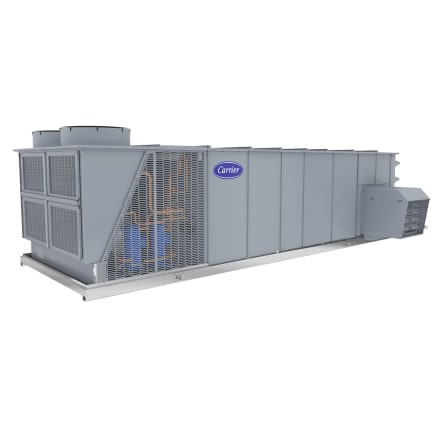

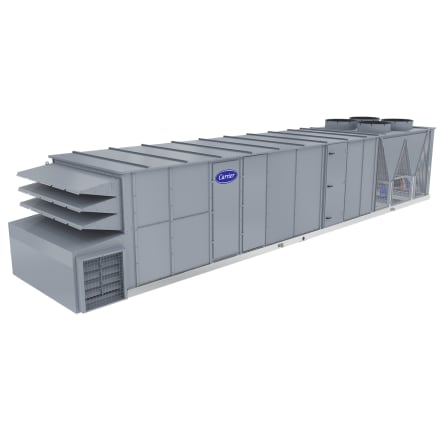

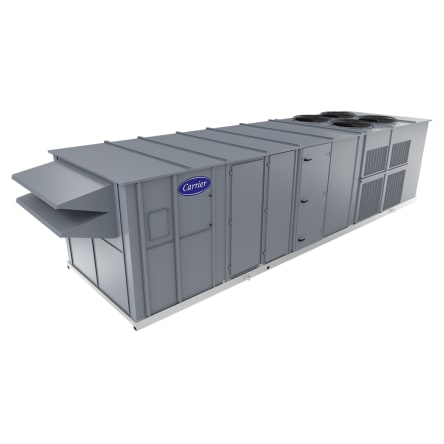

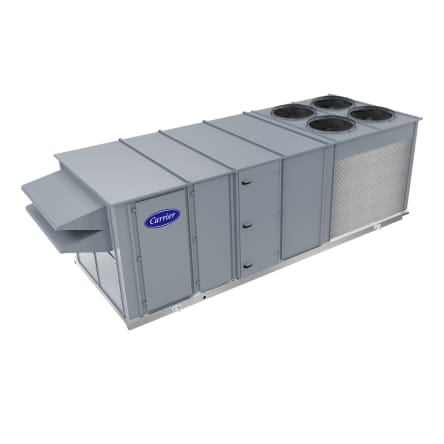

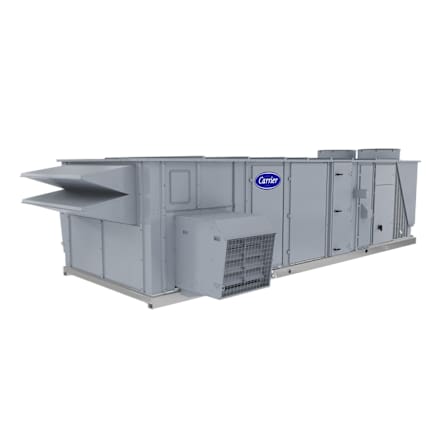

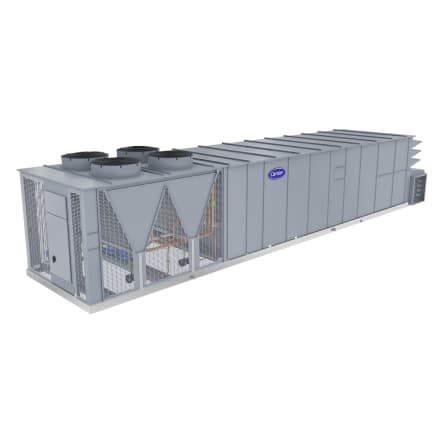

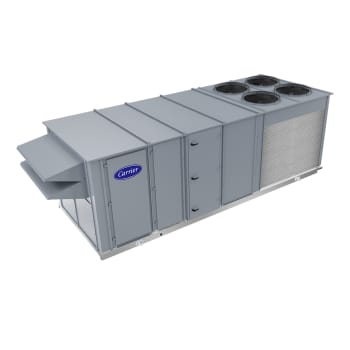

WeatherMaster® Applied Rooftop Units 48V
WeatherMaster® Applied Rooftop Units
48V
Gas Heating/Electric Cooling with Puron Advance® (R-454B) Refrigerant
27.5 to 100 Nominal Tons
Carrier V series Applied Rooftop products are pre-wired and charged with Puron Advance™ (R-454B) low global warming potential (GWP) refrigerant and tested in both cooling and heating modes at the factory. The V series distinguishes itself through its versatile capability to seamlessly integrate with both legacy curbs and select competitor models in replacement or retrofit applications. This flexibility is enabled by the V series comprehensive range of standard and compact chassis options. The standard chassis is designed to fit on legacy Carrier 48/50P and 48/50Z curbs with minimal changes, while the compact chassis will fit select competitor curbs.
The V series is available in 27.5 – 100 ton nominal cooling capacity and features a direct drive indoor fan array with electronically commutated motors (ECM). The Carrier SmartVu™ control includes a 7-inch touchscreen display with easy to navigate user interface for easy setup and configuration. SmartVu™ can operate stand-alone, with a thermostat, with Carrier i-Vu® 8.0 web-based interfaces, or with other BACnet building automation systems (BAS). A variety of factory installed options are available, including modulating gas heat with turndown of up to 7:1, ultra-low leak economizer, and modulating Humidi-MiZer® dehumidification. Furthermore, V-series offer selectable configurations for staged air volume (SAV) in single-zone applications, as well as variable air volume (VAV) options suitable for both single-zone VAV (SZ-VAV) and supply duct pressure control in multi-zone variable air volume (MZ-VAV) applications. These configurations are field selectable for added flexibility.
Overall, the Carrier V series rooftop unit is designed to provide customers with a flexible, efficient, and reliable solution for their air conditioning and indoor air quality needs, while also offering easy installation and compatibility with existing curbs.
Standard Features
- Compact Chassis (fits select competitor curbs, shortest chassis)
- Standard Chassis (fits select Carrier P/Z series curbs, highest filtration and fan static capability)
- Low global warming potential (GWP) Puron Advance™ refrigerant (R454B)
- Refrigerant leak detection system with dissipation control
- Standard capacity variable speed scroll compressor
- Electronic expansion valves (EXV) metering devices ensure reliable performance across a wide operating envelope.
- Single refrigerant circuit with fully active Al/Cu evaporator coil on 27.5-40 tons
- Dual refrigerant circuit with intertwined Al/Cu evaporator coil on 50-100 tons
- Variable speed condenser fans with Greenspeed intelligence allow for optimized part load performance and allow mechanical cooling down to -10°F (-23.3°C) under appropriate conditions.
- Galvanized steel condensate drain pan
- Large MCHX condenser coils for reduced refrigerant charge and efficient operation
- Natural gas heater with induced draft combustion design and stainless steel heat exchanger
- Direct drive indoor fan array with standard, medium or high static electronically commutated motors (ECM)
- Multiple indoor fan control methods, including SAV, CV, SZ-VAV, multi-zone VAV duct pressure, or 3rd party input
- Multiple pre filter options to help with indoor air quality
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
- Carrier SmartVu™ controls with 7” touchscreen display
- 10kA short circuit current rating (SCCR)
- Meets or exceed the EER & IEER requirements of ASHRAE Standard 90.1, DOE 2023, and certified (sizes 28-70) or rated in accordance (sizes 74-98) with AHRI Standard 340/360 (sizes 28-70)
- UL listed for compliance with UL Standard 60335-2-40
Reliability Features
- Units tested in Carrier and third-party labs to verify performance and efficiency.
- SmartVu™ controller monitors, records, and reports unit performance. Also provides diagnostics and alarms of abnormal unit operation.
- Integrated variable speed compressor protection
- Liquid line filter driers and crankcase heaters standard on all models
- Refrigerant system performance monitoring
- Cabinet made of pre-painted, galvanized steel, which meets ASTM B117 salt spray resistance test
- Condenser-fan motors are totally enclosed
- Reliable Integrated Gas Unit Controller (IGC) provides system evaluation & troubleshooting via on-board LED and redundant main gas valve.
Maintenance Features
- Hinged access doors with latches to access maintainable components, such as pre-filters, gas heat, and controls.
- Components, such as electronic expansion valves (EXVs) and condenser fans, are accessible through large access panels for service
- SmartVu™ diagnostics include refrigerant pressure sensors and maintenance reminders
- Condensing and suction pressure sensors to monitor the refrigerant circuit
- Fan shutoff interlock on indoor fan access panel to prevent injury to service personnel if the door opens while the fans are running
Installation Features
- SmartVu™ controls are factory installed and configured to match unit configuration to help reduce setup time.
- Shipped with R-454B refrigerant charge
- Factory installed A2L leak detection and mitigation reduces installation and commissioning time
- Heavy duty base rail with lifting lugs for easy rigging
- Single-point power and gas connections
- Provisions for thru-the-bottom power and control wiring
- Factory-installed outside air hoods
Standard Limited Warranty
- 3-years parts only on microchannel condenser coil
- 5-year parts on ultra-low leak economizer
- 5-years non pro-rated warranty on heat exchanger
- One year parts on all other non-consumable parts
Factory-Installed Options
Gas Heat
- Low or high capacity, modulating gas heat with stainless steel heat exchanger
Refrigerant Circuit
- High capacity variable speed scroll compressor
- Low sound package includes shrouded, low sound condenser fans, low RPM motors, and sound blankets
- Low ambient package includes variable speed condenser fans to allow mechanical cooling down to -10°F (-23.3°C)
- High efficiency, low sound package for reduced radiant sound during mechanical cooling operation and improved cooling efficiency with up to 21.2 IEER
- Humidi-MiZer® adaptive dehumidification system with modulating control
Construction
- Standard or compact chassis
- Extended standard chassis
Controls
- Humidity and enthalpy sensing (OARH & RARH) for dehumidification or free cooling control
- Return air CO2 sensor for ventilation control
- Outdoor airflow measuring
Condenser & Evaporator Coils
- E-Coat MCHX Condenser
- E-Coat Al/Cu Evaporator
- Stainless steel drain pan
- Louvered hail guard (sizes 28-60)
- Security grille (sizes 70-100)
Outdoor Air & Relief
- Ultra-low leak economizer for ventilation and free cooling
- Barometric relief
- Standard, low and medium static power exhaust fan
- Modulating building pressure control
Service & Safety
- Condensate overflow switch
- Pre-filter status switch with access door retainers
- Service pack with compressor isolation valves, replaceable core filter drier
- Return air smoke detector
- Chicago refrigerant relief valve
Electrical
- Non-fused disconnect
- Powered or un-powered convenience outlet
- Phase monitor
- High short circuit current rating (65kA for 208/230/460V, 25kA for 575V)
Indoor Air Quality
- 2” pre-evaporator filter rack with 2” MERV 8 filters
- 4” pre-evaporator filter rack with 4” MERV 8 or 13 filters
- 2” MERV 8 + 4” MERV 13 pre-evaporator filters
- 2” MERV 8 + 12” MERV 14 bag pre-evaporator filters
- 2” MERV 8 + 12” MERV 15 cartridge pre-evaporator filters
- Factory-installed UV-C fixtures with wiring, disconnect switch, door interlocks, and access door with UV safe view port
Field-Installed Accessories
Indoor Air Quality
- Return air CO2 sensor
- CO2 space sensor
- CO2 aspirator box
- UV-C emitters
Controls
- Return air CO2 sensor
- Smoke detector
- Dirty filter switch
- Non-communicating space sensors, including temperature and humidity
- Communicating space sensors, including temperature and humidity
- Space CO2 sensors
- Carrier i-Vu Equipment Touch display
- Thermostats
Miscellaneous Options
- 14-inch roof curb
- Compressor sound blankets
- Actuated hot water valves
