Gemini® Select Air-Cooled Outdoor Condensing Unit 38RC

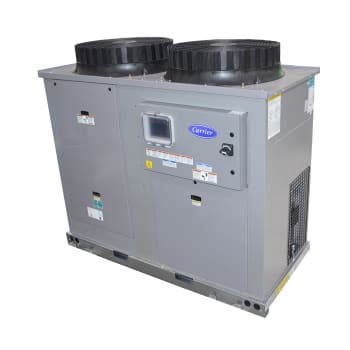

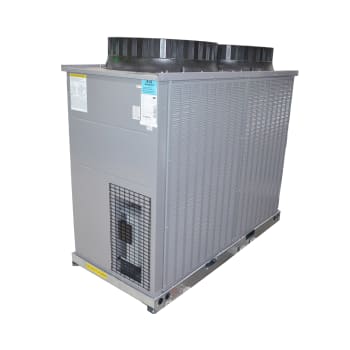

Gemini® Select Air-Cooled Outdoor Condensing Unit
38RC
with R-32 Refrigerant
25-60 Nominal Tons
Gemini® Select 38 Series outdoor condensing units feature one or two independent refrigerant circuits on all sizes. Each unit has its own highly efficient hermetic scroll compressor(s). All units are factory-wired and easily connected by refrigerant lines and control wiring to the matching Carrier indoor air-handling units. Various combinations of condensing units with air handlers provide packages to cover a wide range of commercial cooling solutions. Low roof-load weight distribution and weatherproof construction make these condensing units an excellent selection for rooftop or on-the-ground installations on commercial and industrial air conditioning applications.
Performance Features
- Condensing unit EERs up to 12.95 and IEER up to 18.35
- Unit performance rated in accordance with AHRI Standard 365
- Full capacity range dual-circuit units (025-60 sizes), single-circuit units (025-050 sizes)
- Hermetic scroll compressors with option for digital compressor for superior part-load performance
- Novation® microchannel heat exchanger (MCHX) condenser coils with option for E-coated Novation condenser coils and Aluminum Cooper with or without E-coat
- Compressor with neoprene isolators and oil heater(s)
Reliability Features
- Galvanized steel cabinet, bonderized and finished with baked enamel, 100-hour salt-spray test
- High and low-pressure protection
- Compressor overload protection
- Loss of charge and low suction superheat protection
- Self-contained 24V CCN (Carrier Comfort Network) controls including transformer
- Low ambient head pressure control
- UL, CSA, and ETL approved
Maintenance Features
- Oil-level sight glass, filter driers, liquid line solenoid valve
- Access panel accessibility to compressor and control box
- Compressor suction service valves and liquid shutoff valves
Installation Features
- Shipped with nitrogen holding charge
- On-the-ground or rooftop installation
- 24V control circuit transformer permits quick, easy wiring of thermostats
Standard Warranty
- One-year parts only compressor
- One year parts only on all other parts
- Extended warranty packages available
Factory-Installed Options
- Condenser coil options:
- Microchannel: Non-coated, E-coated
- Aluminium fins/Copper tube: Non-coated, E-coated
- Single-circuit (sizes 025-050), dual-circuit (sizes 025-060)
- Non-fused disconnect
- Low sound fans
- Long line length check valves
- High SCCR
- Variable Speed Fans (Greenspeed) including low ambient control
- PIC6 graphic display
- BACNet IP or MSTP
- Energy management module
- Digital compressor
Field-Installed Accessories
- Long line length check valves
- Energy management module
- BACnet translator control
- LON translator control
| Size | Weight (lb) | Weight (kg) | Length (in)Capacity Nominal Tons | Length (mm)Capacity Nominal kW | Width (in)EER | Width (mm)IPLV | Height (in) | Height (mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MCHX | AlCu | MCHX | AlCu | |||||||
| 38RCS025 | 1223 | 1295 | 555 | 587 | 89 | 2241 | 44 | 1021 | 78 | 1994 |
| 38RCS027 | 1338 | 1428 | 607 | 648 | ||||||
| 38RCS030 | 1372 | 1461 | 622 | 663 | ||||||
| 38RCS040 | 2023 | 2168 | 918 | 983 | 89 | 2241 | 96 | 2340 | 78 | 1994 |
| 38RCS050 | 2080 | 2259 | 943 | 1025 | ||||||
| 38RCD025 | 1223 | 1295 | 555 | 587 | ||||||
| 38RCD027 | 1338 | 1428 | 607 | 648 | ||||||
| 38RCD030 | 1372 | 1461 | 622 | 663 | ||||||
| 38RCD040 | 2149 | 2294 | 975 | 1041 | ||||||
| 38RCD050 | 2223 | 2402 | 1008 | 1090 | ||||||
| 38RCD060 | 2325 | 2403 | 1055 | 1090 | ||||||
Performance Features
- Condensing unit EERs up to 12.95 and IEER up to 18.35
- Unit performance rated in accordance with AHRI Standard 365
- Full capacity range dual-circuit units (025-60 sizes), single-circuit units (025-050 sizes)
- Hermetic scroll compressors with option for digital compressor for superior part-load performance
- Novation® microchannel heat exchanger (MCHX) condenser coils with option for E-coated Novation condenser coils and Aluminum Cooper with or without E-coat
- Compressor with neoprene isolators and oil heater(s)
Reliability Features
- Galvanized steel cabinet, bonderized and finished with baked enamel, 100-hour salt-spray test
- High and low-pressure protection
- Compressor overload protection
- Loss of charge and low suction superheat protection
- Self-contained 24V CCN (Carrier Comfort Network) controls including transformer
- Low ambient head pressure control
- UL, CSA, and ETL approved
Maintenance Features
- Oil-level sight glass, filter driers, liquid line solenoid valve
- Access panel accessibility to compressor and control box
- Compressor suction service valves and liquid shutoff valves
Installation Features
- Shipped with nitrogen holding charge
- On-the-ground or rooftop installation
- 24V control circuit transformer permits quick, easy wiring of thermostats
Standard Warranty
- One-year parts only compressor
- One year parts only on all other parts
- Extended warranty packages available
Factory-Installed Options
- Condenser coil options:
- Microchannel: Non-coated, E-coated
- Aluminium fins/Copper tube: Non-coated, E-coated
- Single-circuit (sizes 025-050), dual-circuit (sizes 025-060)
- Non-fused disconnect
- Low sound fans
- Long line length check valves
- High SCCR
- Variable Speed Fans (Greenspeed) including low ambient control
- PIC6 graphic display
- BACNet IP or MSTP
- Energy management module
- Digital compressor
Field-Installed Accessories
- Long line length check valves
- Energy management module
- BACnet translator control
- LON translator control
| Size | Weight (lb) | Weight (kg) | Length (in)Capacity Nominal Tons | Length (mm)Capacity Nominal kW | Width (in)EER | Width (mm)IPLV | Height (in) | Height (mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MCHX | AlCu | MCHX | AlCu | |||||||
| 38RCS025 | 1223 | 1295 | 555 | 587 | 89 | 2241 | 44 | 1021 | 78 | 1994 |
| 38RCS027 | 1338 | 1428 | 607 | 648 | ||||||
| 38RCS030 | 1372 | 1461 | 622 | 663 | ||||||
| 38RCS040 | 2023 | 2168 | 918 | 983 | 89 | 2241 | 96 | 2340 | 78 | 1994 |
| 38RCS050 | 2080 | 2259 | 943 | 1025 | ||||||
| 38RCD025 | 1223 | 1295 | 555 | 587 | ||||||
| 38RCD027 | 1338 | 1428 | 607 | 648 | ||||||
| 38RCD030 | 1372 | 1461 | 622 | 663 | ||||||
| 38RCD040 | 2149 | 2294 | 975 | 1041 | ||||||
| 38RCD050 | 2223 | 2402 | 1008 | 1090 | ||||||
| 38RCD060 | 2325 | 2403 | 1055 | 1090 | ||||||
