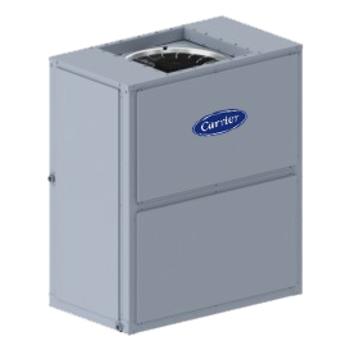

Gemini® Packaged Air-Handling Unit 40RLA
Gemini® Packaged Air-Handling Unit
40RLA
Cooling Only, with Puron Advance™ Refrigerant
6 to 30 Tons
The Gemini® 40RL and 38AX series indoor air handlers and outdoor units provide a wide variety of options for your HVAC application needs. These units are designed for long dependable operation and maximum installation flexibility. All Gemini® 38AX Condensing Units and 40RL Fan Coils use environmentally sound Puron Advance® refrigerant. Together, they create a reliable split system that provides easy solutions to a wide range of commercial HVAC needs.
The 40RL series has a multi-position design that allows for vertical or horizontal installation with no modifications. Powerful fan systems allow easy adaptation to existing ductwork. For heating capability, the 40RL’s allow for field installed electric heaters, hot water coils, or steam coils.
Performance Features
- Uses field-supplied Puron Advance® (R-454B) refrigerant
- Direct Drive EcoBlue™ Vane Axial fan design on 6-10 ton units
- Powerful belt-driven forward curved centrifugal fans with VFD speed control on 12.5-30 ton units
- Non-corroding drain pans
- Fan motor options allowing more complex new or replacement air distribution systems
- Durable die-formed galvanized steel casings
- 40RLA direct expansion cooling coils are rated in accordance with ARI standard 340/360 when paired with Carrier 38AX cooling only condensing units
Reliability Features
- New – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard
- Precision thermostatic expansion valve (TXV) with removable power element on each circuit
- Motor overload protection of internal automatic reset thermal overload protection
- Listed with UL and UL Canada
Installation Features
- Vertical or horizontal installation without modification
- Front or bottom return air intake
- Two sloped condensate pans for horizontal or vertical applications
- Simple condensate drain pan adjustment for right-hand or left-hand operation
- Easy-access 24-volt control terminal block for easy thermostat wiring
- Single point electrical power connection for fan motor and accessory electrical heaters
Maintenance Features
- Removable side panel allows access to virtually all components
- Permanently lubricated, sealed motor bearings
- Easy filter replacement with slide-out retainer
Standard Limited Warranty
- One year parts only
Factory-Installed Options
- Unit voltage options:
- 208/230-3-60
- 460-3-60
- 575-3-60
- Staged Air Volume (SAV) Indoor Fan Speed System
- Alternate fan motors
- Medium and high-static drives
- Pre-painted units
Field-Installed Accessories
- Outside air economizer
- Electric heater
- Hot water heating coils
- Steam heating coil
- Programmable thermostats
- CO2 sensors
- Airflow sensor switch
- Painted and non-painted options:
- Discharge plenum
- Return air grille
- Floor mount subbase
- Condensate overflow switch assembly
- Overhead suspension package
40RLA Matched with 38AXZ Single Circuit Air-Cooled Condensing Unit
38AXZ/40RLA AHRI Cooling Ratings
| Unit | Cooling Stages | Nominal Capacity (Tons) | Net Cooling Capacity (MBH) | Total Power (kW) | EER | IEER |
|---|---|---|---|---|---|---|
| 38AXZ07/40RLA07 | 2 | 6 | 70.0 | 5.8 | 12.0 | 15.5 |
| 38AXZ08/40RLA08 | 7.5 | 92.0 | 8.2 | 11.2 | ||
| 38AXZ12/40RLA12 | 10 | 117.0 | 10.4 | |||
| 38AXZ14/40RLA14 | 12.5 | 135.0 | 12.3 | 11.0 | ||
| 38AXZ16/40RLA16 | 15 | 184.0 | 16.7 | 14.3 | ||
| 38AXZ25/40RLA25 | 20 | 240.0 | 22.6 | 10.6 | 13.6 |
40RLA Matched with 38AXD Dual Circuit Air-Cooled Condensing Unit
38AXD/40RLA AHRI Cooling Ratings
| Unit | Cooling Stages | Nominal Capacity (Tons) | Net Cooling Capacity (MBH) | Total Power (kW) | EER | IEER |
|---|---|---|---|---|---|---|
| 38AXD12/40RLA12 | 3 | 10 | 117.0 | 10.4 | 11.2 | 14.9 |
| 38AXD14/40RLA14 | 12.5 | 135.0 | 12.3 | 11.0 | 14.2 | |
| 38AXD16/40RLA16 | 15 | 184.0 | 16.7 | |||
| 38AXD25/40RLA25 | 20 | 240.0 | 22.6 | 10.6 | 13.5 | |
| 38AXD28/40RLA28 | 25 | 278.0 | 27.3 | 10.2 | 13.2 |
AHRI = Air-Conditioning, Heating and Refrigeration Institute
ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
EER = Energy Efficiency Ratio
IEER = Integrated Energy Efficiency Ratio
NOTES
1. Rated and certified under ARI Standard 340/360.
2. Ratings are based on:
-Cooling Standard: 80°F (27°C) db, 67°F (19°C) wb indoor air temp and 95°F (35°C) db outdoor air temp.
3. All units comply with ASHRAE 90.1 Energy Standard.
4. All units comply with US Energy Policy Act (2005).
