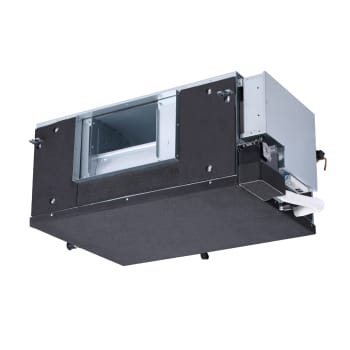

High Static Duct
40VMH

24,000 - 96,000 Btuh
2.0 to 8.0 Tons

The Carrier High Static Ducted indoor units can handle higher static to support longer ductwork for a given space and are ideal for hideaway applications serving multiple zones.

Compatible Outdoor Units & Controls

The 40VMH high static duct is matched with the 38VMR heat recovery or the 38VMH heat pump and the 40MV9 series controllers.

Product Features

208/230V-1-60Hz voltage
Unit can handle up to 1.0 in. wg of ESP
DC fan motor
Multiple fan speeds
Integrated condensate lift up to 28â€, for sizes up to 54
For sizes 72 and 96, condensate pump is available an accessory

Reliability Features

All equipment wiring complies with NEC requirements
Unit constructed in accordance with ETL requirements
DC Inverter fan motor
Finned tube heat exchanger
Suitable for R-410a refrigerant

Installation Features

Controls quick connects standard
All settings can be done from the remote controller
Unit comes standard with IR receiver

Effective 8/1/24, the warranty for our VRF equipment will include an opportunity for a 10-year parts limited warranty. If not registered within 90 days, the warranty will be a 5-year parts limited warranty.¹

See warranty certificate for details.

¹Except for residential applications in California and Quebec and other jurisdictions that prohibit warranty benefits conditioned on registration.
