Low Static Duct
40VML

7,000 to 24,000 Btuh
0.5 to 2.0 Tons

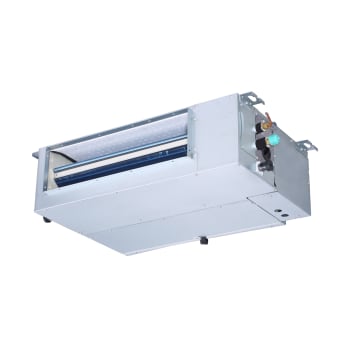

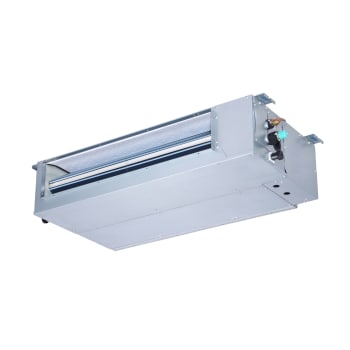

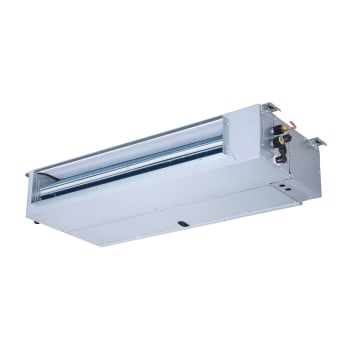

The Carrier VRF Slim Duct (low static) unit is only 8-1/4” in height making it an ideal candidate for narrow plenum space applications.

Compatible Units & Controls

The 40VML fan coil is matched with the 38VMR heat recovery or the 38VMH heat pump and the 40MV9 series controllers.


carrier-intertek-ETL-Listed-US

Product Features

  • 208/230V-1-60Hz voltage
  • Unit can handle up to 0.2 in. wg of ESP
  • DC fan motor
  • Multiple fan speeds
  • Built-in condensate drain pump
  • Reversible return air arrangement – rear or bottom

Reliability Features

  • All equipment wiring complies with NEC requirements
  • Unit constructed in accordance with ETL requirements
  • DC fan motor
  • Finned tube heat exchanger
  • Suitable for R-410a refrigerant

Installation Features

  • Controls quick connects standard
  • All settings can be done from the Remote Controller
  • Unit comes standard with IR receiver

Effective 8/1/24, the warranty for our VRF equipment will include an opportunity for a 10-year parts limited warranty. If not registered within 90 days, the warranty will be a 5-year parts limited warranty.1

See warranty certificate for details.

1Except for residential applications in California and Quebec and other jurisdictions that prohibit warranty benefits conditioned on registration.

Product Features

  • 208/230V-1-60Hz voltage
  • Unit can handle up to 0.2 in. wg of ESP
  • DC fan motor
  • Multiple fan speeds
  • Built-in condensate drain pump
  • Reversible return air arrangement – rear or bottom

Reliability Features

  • All equipment wiring complies with NEC requirements
  • Unit constructed in accordance with ETL requirements
  • DC fan motor
  • Finned tube heat exchanger
  • Suitable for R-410a refrigerant

Installation Features

  • Controls quick connects standard
  • All settings can be done from the Remote Controller
  • Unit comes standard with IR receiver

Effective 8/1/24, the warranty for our VRF equipment will include an opportunity for a 10-year parts limited warranty. If not registered within 90 days, the warranty will be a 5-year parts limited warranty.1

See warranty certificate for details.

1Except for residential applications in California and Quebec and other jurisdictions that prohibit warranty benefits conditioned on registration.
