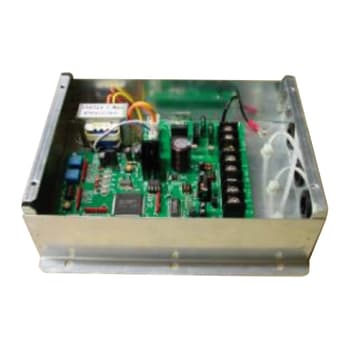

Carrier CT512 Large TSCC – TCS – NET Relay Interface
BMS-IFLSV4UL
Carrier CT512 Large TSCC – TCS – NET Relay Interface
BMS-IFLSV4UL
This interface enables the RS485 communication signal to the Toshiba Carrier VRF Central Controller model: BMS-CT512OUL. The BMS-IFLSV4UL Touch Screen Central Controller is a line voltage controller mounted on the wall with a touch screen LCD display panel. This controller enables the customer to control and monitor the operation of the VRF System.
System Functions
- Maximum of 64 indoor units per TCS-NET Relay Interfaces) (up to 12 TCS-NET Relay Interfaces per Central Controller model: BMS-CT512OUL
- The TCS-NET Relay Interface is used to connect the VRF system to the Central Controller model: BMS-CT512OUL
Controlling Functions
- ON/OFF
- Operating mode
- Temperature settings
- Fan speed
- Louver
- Permit/prohibit local remote controller
- Local and remote scheduling abilities
Monitoring Functions
- ON/OFF
- Operating mode
- Temperature settings
- Fan speed
- Louver
- Permit/prohibit local remote controller
- Error code/status
- Local and remote scheduling abilities
- Power Supply: 120VAC, 60Hz
- Power Consumption: 3W
- Operating Temperature/Humidity: 32°F to 104°F / 10 to 90% RH
System Functions
- Maximum of 64 indoor units per TCS-NET Relay Interfaces) (up to 12 TCS-NET Relay Interfaces per Central Controller model: BMS-CT512OUL
- The TCS-NET Relay Interface is used to connect the VRF system to the Central Controller model: BMS-CT512OUL
Controlling Functions
- ON/OFF
- Operating mode
- Temperature settings
- Fan speed
- Louver
- Permit/prohibit local remote controller
- Local and remote scheduling abilities
Monitoring Functions
- ON/OFF
- Operating mode
- Temperature settings
- Fan speed
- Louver
- Permit/prohibit local remote controller
- Error code/status
- Local and remote scheduling abilities
- Power Supply: 120VAC, 60Hz
- Power Consumption: 3W
- Operating Temperature/Humidity: 32°F to 104°F / 10 to 90% RH
