45J
45J

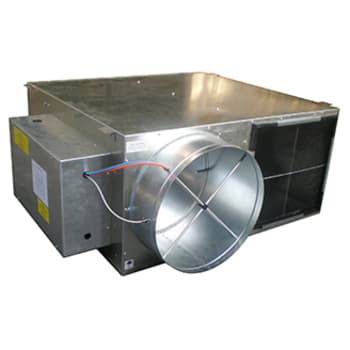

Air Terminal
Series Fan-Powered
Airflow: 180~3,280 m³/h
- Superior control offerings
- Wide range of applications
- Compact design
Performance Features
- Airflow capacities from 180 to 3280 m3/h
- Round inlet sizes from 4 in. through 14 in. diameter
- Galvanized steel casing construction
- Suitable for low, medium, or high pressure applications
- Linear, multiple-point, averaging velocity sensor with an amplified signal
- Damper blade has a flexible gasket for tight airflow shutoff
- Damper blade operates over a full 90 degrees
- Pressure independent, BACnet protocol is standard and Carrier Control Network (CCN) is optional. (factory-installed option)
- Electronic speed control (silicon controlled rectifier [SCR] type) allows field adjustable fan airflow
- Isolated motor/blower assembly
- Electric or hot water reheat coils (factory-installed option)
- Multiple casing liners available (factory-installed option)
- Electric heat (1 to 3 stages) or proportional heat (factory-installed option)
Options
- Please contact local sales office for detail information
