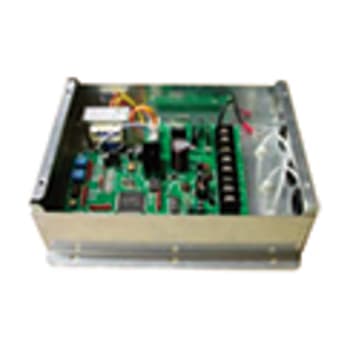

BMS-IFLSV4UL

Toshiba Carrier VRF

BACnet® System - TCS-NET Relay Interface

The BACnet System enables the communication between the Building Automation System (BAS) and VRF unit, allowing the customer to control the Toshiba Carrier system from a centralized location.

Compatible Indoor Units

MMU2 – 4-Way Cassette
MMUM – Compact 4-Way Cassette
MMC1 – Underceiling
MMK3 – High Wall
MMDB – Concealed Duct
MMD4 – High Static Duct
MMDP – Slim Duct
40TCQ – Vertical AHU

System Functions

  • Open network protocol
  • Maximum of 128 indoor units per BACnet® System (up to 8 TCS-NET Relay Interfaces per BACnet system)
  • The TCS-NET Relay Interface is used to connect the VRF system to the BACnet system

Controlling Functions

  • ON/OFF
  • Operating mode
  • Temperature settings
  • Fan speed
  • Louver
  • Permit/prohibit local remote controller

Monitoring Functions

  • ON/OFF
  • Operating mode
  • Temperature settings
  • Fan speed
  • Louver
  • Permit/prohibit local remote controller
  • Error code/status
  • Power Supply: 120VAC, 60Hz
  • Power Consumption: 3W
  • Operating Temperature/Humidity: 32°F to 104°F / 10 to 90% RH
