PrimeLINE

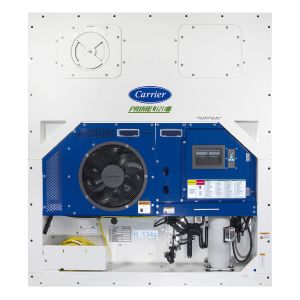

PrimeLINE® Container Refrigeration Unit
The PrimeLINE container refrigeration unit runs green and keeps you in the black.
- The PrimeLINE unit answers rising energy fuel costs with superior efficiency.
- Faster pulldown – vapor injection system starts compressor cycling sooner, minimizing power consumption.
- Time-tested Carrier reliability means lower maintenance costs.
- Significantly decreases life-cycle costs by reducing energy use and maintenance costs.
The PrimeLINE container refrigeration unit is designed for world-class performance when it comes to energy efficiency, capacity, lifecycle cost and the environment.
No refrigeration unit on the market today provides full-load performance as energy efficiently as the PrimeLINE unit. The PrimeLINE unit’s efficiency is attributed, primarily, to its significantly advanced digital scroll compressor – the only one on the market designed for R-134a in a container application and now ready to be converted for use with low GWP R-513A. Exceptional efficiency results from its digital modulation (unloading), which minimizes energy usage, and its vapor injection system, which delivers more cooling capacity.
Compare PrimeLINE’s specifications to any other R-134a unit on the market – the cooling power of the PrimeLINE unit is exceptional. Additionally, the PrimeLINE unit has excellent deep frozen and pull down capacity.
The PrimeLINE unit’s electronic expansion valve and Micro-Link® 5 control software work together to manage stable temperatures within tolerances as narrow as +/- 0.25°C. The unit also delivers industry-leading dehumidification capability, down to 50 percent.
Optimized to take efficiency to new highs and environmental impact to new lows.
- PrimeLINE unit’s efficiency is attributed, primarily, to its significantly advanced digital scroll compressor – the only one on the market designed for R-134a in a container application. Now ready to be converted for use with low GWP R-513A.

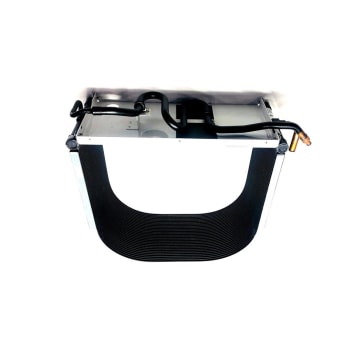

- More efficient formed extruded aluminum condenser coil for better airflow, coated with Carrier’s time-tested and patented electrocoating process, or E-coating, for superior corrosion protection; coil size increased for higher cooling capacity.
- Optimized assembly reduces power consumption without compromising airflow.
- Features exclusive aerospace-inspired evaporator fan, stator, and lighter, more efficient low power 3-phase motor; optimized condenser fan adds to improved efficiency.

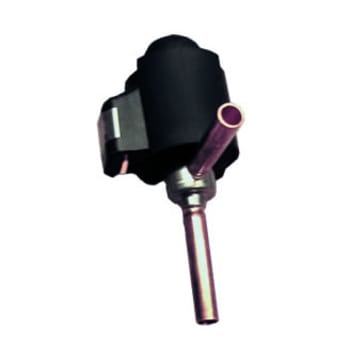

- Electronic expansion valve helps attain deep frozen capacity and stable temperature control.

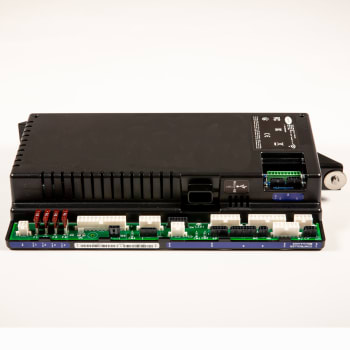

- Micro-Link® 5 controller delivers the same reliability, interchangeability, and accuracy field-proven in our ThinLINE® platform.
- Enhanced dehumidification control (down to 50% relative humidity) over a wide range of operating temperatures with no compromise to energy efficiency.
- Modified evaporator coil orientation allows for better airflow and improved defrost performance.
- The compressor and receiver have aluminized coatings for corrosion resistance.
Cooling Capacity: Ambient @ 38°C (100°F) with Exclusive HFC-134a Digital Scroll Compressor @ 460v 60Hz
| Temperature | Watts | Btu/hr |
|---|---|---|
| 2°C (35°F) | 12,000 | 40,900 |
| -18°C (0°F) | 6,600 | 22,500 |
| -29°C (-20°F) | 4,400 | 15,000 |
Specifications are subject to change without notice.
Carrier reserves the right to discontinue or change any specification or design without prior notice or obligation.
