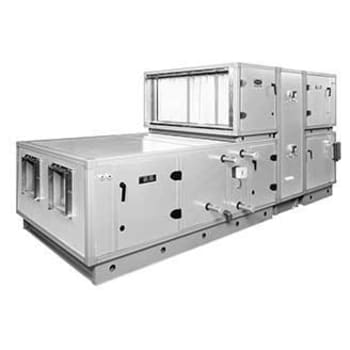

39HQ

Custom Central Station Air Handler

1,800 to 126,000 m³/h
1,059 to 74,161 cfm

  • Air leakage class B standard (EN1886)
  • High corrosion resistance
  • Modular construction
  • Dimensional flexibility

Construction Features

  • Profiled steel frame construction with purpose built corner and center posts.
  • Panels with 60mm thick thermal insulation.
  • Robust base frame made of galvanized steel box profile.

Corrosion Resistance Features

  • Corrosion resistant filter frames.
  • Polyester coated galvanized steel external panels
  • Galvanized steel or polyester coated galvanized steel or stainless steel internal panels.
  • Cooling coils with integrated marine stainless steel double drain pan and plastic droplet eliminator.
  • The special panel design and frame detail eliminates the chance of condensation forming in the panels.

Maintenance Features

  • Various inspection options with generously sized clear opening access doors.
  • Completely smooth internal surfaces.
  • Filters easily removable.
  • Cooling function optional with sloping drain pan.
  • Moisture eliminator after the cooling coil easily removable.
  • Long-life fan and motor bearings.
  • Fans removable from the side.

Quality Features

  • Heat Recovery Wheels.
  • High-efficiency centrifugal low noise fans, mounted on vibration isolators with low transmission factor.
  • Dampers.
  • Sound absorption splitters.
  • Matched high efficiency belt drives.

Efficiency/Environment Features

  • No paint treatment required after the production process.
  • Use of fully recyclable components.
  • Low energy usage due to optimized component selection and superior casing characteristics.
  • High efficiency heat recovery systems available.

Options

  • Stainless steel.
  • All types of humidification systems.
  • Flat pack option for site assembly.
  • Heat recovery systems (run around coil, plate heat exchanger and thermal wheels).
  • Wide selection of standard accessories.
  • Cooling coil drain tray fully accessible for cleaning/disinfection.

Technical Specification (in accordance with EN1886)

  • Thermal transmittance coefficient class T2.
  • Thermal bridging factor class TB2.
  • Air tightness class B.
  • Mechanical strength class 2A.
  • Filter bypass leakage:
    • class F7 for standard slide-in construction.
    • class F9 for special slide-in construction.
    • class F9 for built-in construction.

Construction Features

  • Profiled steel frame construction with purpose built corner and center posts.
  • Panels with 60mm thick thermal insulation.
  • Robust base frame made of galvanized steel box profile.

Corrosion Resistance Features

  • Corrosion resistant filter frames.
  • Polyester coated galvanized steel external panels
  • Galvanized steel or polyester coated galvanized steel or stainless steel internal panels.
  • Cooling coils with integrated marine stainless steel double drain pan and plastic droplet eliminator.
  • The special panel design and frame detail eliminates the chance of condensation forming in the panels.

Maintenance Features

  • Various inspection options with generously sized clear opening access doors.
  • Completely smooth internal surfaces.
  • Filters easily removable.
  • Cooling function optional with sloping drain pan.
  • Moisture eliminator after the cooling coil easily removable.
  • Long-life fan and motor bearings.
  • Fans removable from the side.

Quality Features

  • Heat Recovery Wheels.
  • High-efficiency centrifugal low noise fans, mounted on vibration isolators with low transmission factor.
  • Dampers.
  • Sound absorption splitters.
  • Matched high efficiency belt drives.

Efficiency/Environment Features

  • No paint treatment required after the production process.
  • Use of fully recyclable components.
  • Low energy usage due to optimized component selection and superior casing characteristics.
  • High efficiency heat recovery systems available.

Options

  • Stainless steel.
  • All types of humidification systems.
  • Flat pack option for site assembly.
  • Heat recovery systems (run around coil, plate heat exchanger and thermal wheels).
  • Wide selection of standard accessories.
  • Cooling coil drain tray fully accessible for cleaning/disinfection.

Technical Specification (in accordance with EN1886)

  • Thermal transmittance coefficient class T2.
  • Thermal bridging factor class TB2.
  • Air tightness class B.
  • Mechanical strength class 2A.
  • Filter bypass leakage:
    • class F7 for standard slide-in construction.
    • class F9 for special slide-in construction.
    • class F9 for built-in construction.
