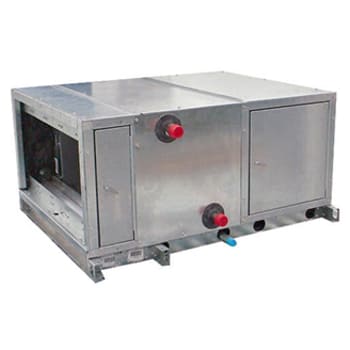

AERO® 39L
AERO®
39L
Indoor Air Handler Vertical and Horizontal
3,058 to 25,485 m³/h
1,800 to 15,000 cfm
Carrier's AERO 39L series air handlers are compact and fully assembled. They combine versatility with economical, dependable performance for heating, cooling, ventilation, and VAV (variable air volume) applications. Galvanized steel panels ensure structural integrity under all operating conditions. Double-walled hinged access doors also enhance structural stability and provide fast, easy access. A stainless steel marine double drain pan allows condensate drainage during ship motion.
Performance Features
- All units are shrink wrapped for complete protection during transit.
- Air-flows ranging from 1,800 to 15,000 nominal cfm.
- Horizontal and vertical draw-thru arrangements.
- Single or double wall construction.
- Belt driven, forward curved blowers.
- Chilled water, hot water, direct expansion (DX), and steam coils.
- Various coil face areas, fin densities, and circuiting arrangements.
- Electric preheat available over a wide kW range.
- Dual refrigerant circuits.
- Parallel blade dampers on mixing boxes.
- 1-1/2 lb density insulation or optional foil-faced 3 lb density insulation.
- Certified performance in accordance with AHRI Standard 410 and 430.
Reliability Features
- Galvanized steel construction.
- Precision-balanced fan wheels limit vibration and eliminate abnormal stress on bearings and other components.
- Internally mounted motor and belt drive package.
- Stainless steel marine double drain pan provides positive drainage under pitch and roll conditions.
- ETL certified.
Maintenance Features
- Double-wall hinged access panels.
- Blower housing serviceable without disconnecting ductwork.
- Rugged pillow-block bearings rated at 200,000 hours average life.
- Tool-less filter change.
- 2-in. or 4-in. flat and angled filter sections.
Installation Features
- Units may be mounted in ceilings, closets, attics, etc.
- Ducted or free return connections.
- Field convertible discharge.
- Suspension hardware.
- Lifting brackets to facilitate unit rigging.
- Small footprint.
Standard Limited Warranty
- One-year parts only.
- Extended warranty packages available.
Factory-Installed Options
- Stainless steel condensate drain pan.
- Coil type options:
- Chilled water coils
- Hot water coils
- DX coils
- Steam coils
- Electric heat coils
- Copper coils
- Coil face area, fin density, and circuiting arrangement options.
- Blower motor and belt drive package.
- Flat or angled filter section (2 in. or 4 in.).
- Single or double wall construction.
- Horizontal or vertical arrangements.
- 1-1/2 lb density insulation or foil-faced 3 lb density insulation.
Field-Installed Accessories
- TXV (thermostatic expansion valve) packages.
- Marine light installation kit.
- Viewport installation kit.
- Filter kits.
- Suspension hardware.
| Size | Nominal capacity* (cfm) | Dimensions (in.) | ||
|---|---|---|---|---|
| Length | Width | Height | ||
| 03 | 1,500 | 30 | 38 | 25 |
| 06 | 3,000 | 34 | 46 | 29 |
| 08 | 4,100 | 37 | 50 | 33 |
| 10 | 5,000 | 37 | 58 | 33 |
| 12 | 6,400 | 37 | 66 | 33 |
| 15 | 7,500 | 45 | 66 | 40 |
| 18 | 9,000 | 49 | 66 | 44 |
| 21 | 12,000 | 49 | 78 | 44 |
| 25 | 14,000 | 57 | 78 | 52 |
* Capacities based on small face area coil @ 500 ft/m.
Dimensions are for Typical 39LB Cooling only.
Performance Features
- All units are shrink wrapped for complete protection during transit.
- Air-flows ranging from 1,800 to 15,000 nominal cfm.
- Horizontal and vertical draw-thru arrangements.
- Single or double wall construction.
- Belt driven, forward curved blowers.
- Chilled water, hot water, direct expansion (DX), and steam coils.
- Various coil face areas, fin densities, and circuiting arrangements.
- Electric preheat available over a wide kW range.
- Dual refrigerant circuits.
- Parallel blade dampers on mixing boxes.
- 1-1/2 lb density insulation or optional foil-faced 3 lb density insulation.
- Certified performance in accordance with AHRI Standard 410 and 430.
Reliability Features
- Galvanized steel construction.
- Precision-balanced fan wheels limit vibration and eliminate abnormal stress on bearings and other components.
- Internally mounted motor and belt drive package.
- Stainless steel marine double drain pan provides positive drainage under pitch and roll conditions.
- ETL certified.
Maintenance Features
- Double-wall hinged access panels.
- Blower housing serviceable without disconnecting ductwork.
- Rugged pillow-block bearings rated at 200,000 hours average life.
- Tool-less filter change.
- 2-in. or 4-in. flat and angled filter sections.
Installation Features
- Units may be mounted in ceilings, closets, attics, etc.
- Ducted or free return connections.
- Field convertible discharge.
- Suspension hardware.
- Lifting brackets to facilitate unit rigging.
- Small footprint.
Standard Limited Warranty
- One-year parts only.
- Extended warranty packages available.
Factory-Installed Options
- Stainless steel condensate drain pan.
- Coil type options:
- Chilled water coils
- Hot water coils
- DX coils
- Steam coils
- Electric heat coils
- Copper coils
- Coil face area, fin density, and circuiting arrangement options.
- Blower motor and belt drive package.
- Flat or angled filter section (2 in. or 4 in.).
- Single or double wall construction.
- Horizontal or vertical arrangements.
- 1-1/2 lb density insulation or foil-faced 3 lb density insulation.
Field-Installed Accessories
- TXV (thermostatic expansion valve) packages.
- Marine light installation kit.
- Viewport installation kit.
- Filter kits.
- Suspension hardware.
| Size | Nominal capacity* (cfm) | Dimensions (in.) | ||
|---|---|---|---|---|
| Length | Width | Height | ||
| 03 | 1,500 | 30 | 38 | 25 |
| 06 | 3,000 | 34 | 46 | 29 |
| 08 | 4,100 | 37 | 50 | 33 |
| 10 | 5,000 | 37 | 58 | 33 |
| 12 | 6,400 | 37 | 66 | 33 |
| 15 | 7,500 | 45 | 66 | 40 |
| 18 | 9,000 | 49 | 66 | 44 |
| 21 | 12,000 | 49 | 78 | 44 |
| 25 | 14,000 | 57 | 78 | 52 |
* Capacities based on small face area coil @ 500 ft/m.
Dimensions are for Typical 39LB Cooling only.
