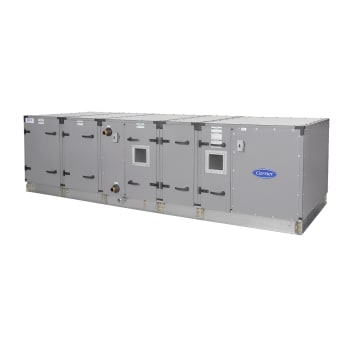

AERO® 39M
AERO®
39M
Semi-Custom Central Station Air Handler
2,549 to 102,790 m³/h
1,500 to 60,500 Nominal cfm
39MN - Indoor
39MW - Outdoor
Carrier’s Aero 39M air handlers provide advanced technology and custom features in a streamlined, easy to install package. Units can be equipped with HEPA filters, AgION™ antimicrobial coating and other options. All marine units include a stainless steel marine double drain pan. All marine units include a stainless steel marine double drain pan. The 39M unit’s double-wall casing allows panels to be easily cleaned without damaging the insulation inside. Available fan options include forward-curved, airfoil, and plenum fans for extra quiet operation. Factory-installed controls maintain airflow and ventilation requirements while helping to prevent coil freeze-up, excessive humidity and poor indoor air quality (IAQ). Carrier’s AHUBuilder® software makes selecting and optimizing the 39M air handler easy.
Performance Features
- All units are shrink wrapped for complete protection while in transit.
- Double skin panel construction, excellent heat preservation.
- Thermal break casing construction.
- Built-in integrated control system.
- Chilled water, hot water, direct expansion (DX), and steam coils.
- Ultraviolet band C (UV-C) germicidal lamps.
- Multiple filtration from pleated to HEPA filters.
- Energy recovery ventilator (ERV) sections.
- Multiple fan options.
- Humidifiers for precise indoor climate conditioning.
- Internal and external face and bypass damper sections.
Reliability Features
- HDP high durability polyester exterior panel.
- Stainless steel marine double drain pan provides positive drainage under pitch and roll conditions.
Maintenance Features
- Prepainted unit exterior.
- All service may be done through large, removable or hinged panels.
- Marine lights and viewports for interior component inspection.
Installation Features
- Units may be mounted in ceilings, closets, attics, etc.
- Variable frequency drives are programmed and started up at the factory.
- Modular construction.
- Casing can be broken-down to individual panels and frame members.
Factory-Installed Options
- Pre-filter
- Medium-efficiency filter
- HEPA filter
- Hot water coil
- Steam coil
- Electrical heater
- Various humidifiers
- Attenuator
- Heat recovery devices
| Size | Nominal airflow* (cfm) | Dimensions (in)** | |
|---|---|---|---|
| Height | Width | ||
| 03 | 1500 | 39 | 33 |
| 06 | 3000 | 39 | 46 |
| 08 | 4000 | 42 | 54 |
| 10 | 5000 | 42 | 67 |
| 12 | 6000 | 49 | 67 |
| 14 | 7000 | 49 | 72 |
| 17 | 8500 | 52 | 79 |
| 21 | 10500 | 62 | 79 |
| 25 | 12500 | 62 | 86 |
| 30 | 15000 | 62 | 104 |
| 36 | 18000 | 73 | 109 |
| 40 | 20000 | 79 | 109 |
| 50 | 25000 | 89 | 117 |
| 61 | 30500 | 104 | 117 |
| 72 | 36000 | 113 | 120 |
| 85 | 42500 | 113 | 139 |
| 96 | 48000 | 126 | 139 |
| 110 | 55000 | 126 | 157 |
*Airflow is based upon 500 ft/min face velocity.
**Airway length is variable upon different component arrangements. Check the product catalog for individual airway length of components.
