Airstream™ 42D
Airstream™
42D
Ducted Fan Coils
1,019 to 3,398 m³/h
600 to 2,000 cfm

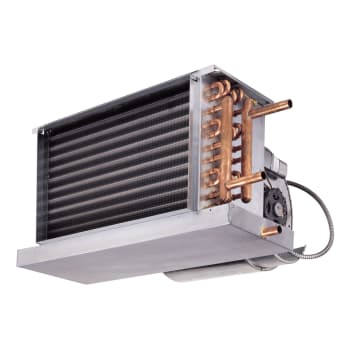

42DA - Ceiling furred-in
42DC - Ceiling furred-in with plenum
42DD - Vertical with galvanized casing
42DE - Ceiling with galvanized casing
42DF - Ceiling with exposed cabinet
Ideal for any passenger-occupied spaces, 42 series fan coils combine heating and cooling performance with easy, low-cost installation. The 42D units are designed for high performance, ducted applications, using furred-in, horizontal and vertical models, or exposed ceiling painted cabinet models.
Performance Features
- capacities from 200 to 1200 cfm.
- 2-pipe or 4-pipe system combinations.
- Economical, 3-speed fans deliver the right amount of conditioned air for comfort needs at any load.
- Optional electronically commutated motors deliver peak operating efficiency.
- Sound-absorbing insulation is used to line the cabinet.
- Certified performance in accordance with AHRI Standard 440.
Reliability Features
- Coils are factory leak tested at 300 psig air pressure with coil submerged in water.
- All equipment wiring complies with NEC requirements.
- Optional electric heaters are fully sheathed for marine applications.
- Unit casing meets UL 181 and NFPA 90A standards.
Maintenance Features
- Cleanable or throwaway filters available.
- Removable panels make access to components and connections easy.
- Label information adhered to each unit includes model, size, coil information, electrical information, and tagging data.
- Units include stainless steel marine double drain pan for positive drainage during pitch and roll.
Installation Features
- Piping, drain, and wiring connections are readily accessible.
- Factory-installed controls.
- Single point electrical connection.
- Pre-drilled mounting holes and slots.
- Compact unit casing accommodates installation in reduced ceiling plenum space.
- Valve packages available.
Standard Warranty
- One-year parts.
Factory-Installed Options
- 3-speed switches.
- Line voltage thermostats.
- 24V Carrier Debonair® programmable or non-programmable thermostats.
- Product Integrated direct digital electronic controls (i-Vu® control system using BACnet® protocol).
- Chilled water or direct expansion cooling coils.
- Hot water or steam heating coils.
- Total or auxiliary electric heat (fully sheathed).
- Service switches.
- Custom colors.
- Permanent or throwaway filters.
- Automatic air vent and drain on water coils.
- Double deflection discharge grilles.
- Tell-tale drains and stainless steel drain pans.
- Condensate overflow switch.
- Dual density fiberglass, foil faced fiberglass or closed cell insulation.
- PSC, High Static PSC, or ECM motors.
- Seismic certified construction (OSHPD & IBC).
Field-Installed Accessories
- Remote mounted thermostats.
- Valve packages factory wired and assembled for field mounting.
- Drip lips for collection of condensate under valve packages.
Physical Data (Sizes 06-12)
| Size | 06 | 08 | 10 | 12 | |
|---|---|---|---|---|---|
| Nominal airflow (cfm) | 600 | 800 | 1000 | 1200 | |
| Shipping weight (lb.)* | |||||
| 42DA | 64 | 79 | 90 | 108 | |
| 42DC | 94 | 107 | 150 | 169 | |
| 42DD | 135 | 145 | 155 | 180 | |
| 42DE | 150 | 160 | 170 | 195 | |
| 42DF | 157 | 167 | 177 | 202 | |
| Coil water weight (approx. lb per row of coil) | 1.3 | 1.6 | 1.9 | 2.3 | |
| Coils | |||||
| FPI | 10 | 10 | 10 | 10 | |
| Coil face area (sq. ft.) | 1.6 | 2.1 | 2.5 | 3.0 | |
| Motor (qty) | 1 | 1 | 1 | 2 | |
| Blower (qty) | 1 | 1 | 1 | 2 | |
| Filters nominal size (in.) (1-inch thick) | |||||
| 42DA | N/A | N/A | N/A | N/A | |
| 42DC | 14 x 21 | 14 x 26 | 14 x 30 | 14 x 35 | |
| 42DD (front return) | 12¾ x 21 | 12¾ x 26 | 12¾ x 30 | 12¾ x 35 | |
| 42DD (bottom return) | 12¾ x 20 | 12¾ x 25 | 12¾ x 29 | 12¾ x 34 | |
| 42DE | 14 x 14¾ | 14 x 19¾ | 14 x 23¾ | 14 x 28¾ | |
| 42DF | 14 x 14 | 14 x 20 | 14 x 24 | 14 x 28 | |
| Qty | 1 | 1 | 1 | 1 | |
| Supply duct collar | 1-in. | 1-in. | 1-in. | 1-in. | |
| Piping connections coil inlet/outlet (in. OD) | |||||
| 1 and 2 Row | 5/8 | 5/8 | 5/8 | 5/8 | |
| 3 Row | 5/8 | 5/8 | 7/8 | 7/8 | |
| 4 Row | 7/8 | 7/8 | 7/8 | 7/8 | |
| 5 Row | 7/8 | 7/8 | 7/8 | 7/8 | |
| 6 Row | 7/8 | 7/8 | 7/8 | 7/8 | |
| 8 Row | 1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
Physical Data (Sizes 14-20)
| Size | 14 | 16 | 18 | 20 | |
|---|---|---|---|---|---|
| Nominal airflow (cfm) | 1400 | 1600 | 1800 | 2000 | |
| Shipping weight (lb.)* | |||||
| 42DA | 119 | 124 | 141 | 151 | |
| 42DC | 174 | 178 | 195 | 220 | |
| 42DD | 190 | 200 | 215 | 230 | |
| 42DE | 205 | 215 | 230 | 235 | |
| 42DF | 215 | 225 | 240 | 255 | |
| Coil water weight (approx. lb per row of coil) | 2.7 | 3.0 | 3.4 | 3.7 | |
| Coils | |||||
| FPI | 10 | 10 | 10 | 10 | |
| Coil face area (sq. ft.) | 3.5 | 4.1 | 4.6 | 5.0 | |
| Motor (qty) | 2 | 2 | 2 | 2 | |
| Blower (qty) | 2 | 2 | 2 | 2 | |
| Filters nominal size (in.) (1-inch thick) | |||||
| 42DA | N/A | N/A | N/A | N/A | |
| 42DC | 14 x 40 | 14 x 45 | 14 x 50 | 14 x 54 | |
| 42DD (front return) | 12¾ x 40 | 12¾ x 45 | 12¾ x 50 | 12¾ x 54 | |
| 42DD (bottom return) | 12¾ x 39 | 12¾ x 44 | 12¾ x 49 | 12¾ x 53 | |
| 42DE | 14 x 33¾ | 14 x 38¾ | 14 x 43¾ | 14 x 47¾ | |
| 42DF | 14 x 34 | 14 x 38 | 14 x 44 | 14 x 48 | |
| Qty | 1 | 1 | 1 | 1 | |
| Supply duct collar | 1-in. | 1-in. | 1-in. | 1-in. | |
| Piping connections coil inlet/outlet (in. OD) | |||||
| 1 and 2 Row | 5/8 | 5/8 | 5/8 | 5/8 | |
| 3 Row | 7/8 | 7/8 | 7/8 | 7/8 | |
| 4 Row | 7/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
| 5 Row | 1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
| 6 Row | 1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
| 8 Row | 1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
*Calculate operating weight of unit: shipping weight + coil water weight x number of coil rows.
Performance Features
- capacities from 200 to 1200 cfm.
- 2-pipe or 4-pipe system combinations.
- Economical, 3-speed fans deliver the right amount of conditioned air for comfort needs at any load.
- Optional electronically commutated motors deliver peak operating efficiency.
- Sound-absorbing insulation is used to line the cabinet.
- Certified performance in accordance with AHRI Standard 440.
Reliability Features
- Coils are factory leak tested at 300 psig air pressure with coil submerged in water.
- All equipment wiring complies with NEC requirements.
- Optional electric heaters are fully sheathed for marine applications.
- Unit casing meets UL 181 and NFPA 90A standards.
Maintenance Features
- Cleanable or throwaway filters available.
- Removable panels make access to components and connections easy.
- Label information adhered to each unit includes model, size, coil information, electrical information, and tagging data.
- Units include stainless steel marine double drain pan for positive drainage during pitch and roll.
Installation Features
- Piping, drain, and wiring connections are readily accessible.
- Factory-installed controls.
- Single point electrical connection.
- Pre-drilled mounting holes and slots.
- Compact unit casing accommodates installation in reduced ceiling plenum space.
- Valve packages available.
Standard Warranty
- One-year parts.
Factory-Installed Options
- 3-speed switches.
- Line voltage thermostats.
- 24V Carrier Debonair® programmable or non-programmable thermostats.
- Product Integrated direct digital electronic controls (i-Vu® control system using BACnet® protocol).
- Chilled water or direct expansion cooling coils.
- Hot water or steam heating coils.
- Total or auxiliary electric heat (fully sheathed).
- Service switches.
- Custom colors.
- Permanent or throwaway filters.
- Automatic air vent and drain on water coils.
- Double deflection discharge grilles.
- Tell-tale drains and stainless steel drain pans.
- Condensate overflow switch.
- Dual density fiberglass, foil faced fiberglass or closed cell insulation.
- PSC, High Static PSC, or ECM motors.
- Seismic certified construction (OSHPD & IBC).
Field-Installed Accessories
- Remote mounted thermostats.
- Valve packages factory wired and assembled for field mounting.
- Drip lips for collection of condensate under valve packages.
Physical Data (Sizes 06-12)
| Size | 06 | 08 | 10 | 12 | |
|---|---|---|---|---|---|
| Nominal airflow (cfm) | 600 | 800 | 1000 | 1200 | |
| Shipping weight (lb.)* | |||||
| 42DA | 64 | 79 | 90 | 108 | |
| 42DC | 94 | 107 | 150 | 169 | |
| 42DD | 135 | 145 | 155 | 180 | |
| 42DE | 150 | 160 | 170 | 195 | |
| 42DF | 157 | 167 | 177 | 202 | |
| Coil water weight (approx. lb per row of coil) | 1.3 | 1.6 | 1.9 | 2.3 | |
| Coils | |||||
| FPI | 10 | 10 | 10 | 10 | |
| Coil face area (sq. ft.) | 1.6 | 2.1 | 2.5 | 3.0 | |
| Motor (qty) | 1 | 1 | 1 | 2 | |
| Blower (qty) | 1 | 1 | 1 | 2 | |
| Filters nominal size (in.) (1-inch thick) | |||||
| 42DA | N/A | N/A | N/A | N/A | |
| 42DC | 14 x 21 | 14 x 26 | 14 x 30 | 14 x 35 | |
| 42DD (front return) | 12¾ x 21 | 12¾ x 26 | 12¾ x 30 | 12¾ x 35 | |
| 42DD (bottom return) | 12¾ x 20 | 12¾ x 25 | 12¾ x 29 | 12¾ x 34 | |
| 42DE | 14 x 14¾ | 14 x 19¾ | 14 x 23¾ | 14 x 28¾ | |
| 42DF | 14 x 14 | 14 x 20 | 14 x 24 | 14 x 28 | |
| Qty | 1 | 1 | 1 | 1 | |
| Supply duct collar | 1-in. | 1-in. | 1-in. | 1-in. | |
| Piping connections coil inlet/outlet (in. OD) | |||||
| 1 and 2 Row | 5/8 | 5/8 | 5/8 | 5/8 | |
| 3 Row | 5/8 | 5/8 | 7/8 | 7/8 | |
| 4 Row | 7/8 | 7/8 | 7/8 | 7/8 | |
| 5 Row | 7/8 | 7/8 | 7/8 | 7/8 | |
| 6 Row | 7/8 | 7/8 | 7/8 | 7/8 | |
| 8 Row | 1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
Physical Data (Sizes 14-20)
| Size | 14 | 16 | 18 | 20 | |
|---|---|---|---|---|---|
| Nominal airflow (cfm) | 1400 | 1600 | 1800 | 2000 | |
| Shipping weight (lb.)* | |||||
| 42DA | 119 | 124 | 141 | 151 | |
| 42DC | 174 | 178 | 195 | 220 | |
| 42DD | 190 | 200 | 215 | 230 | |
| 42DE | 205 | 215 | 230 | 235 | |
| 42DF | 215 | 225 | 240 | 255 | |
| Coil water weight (approx. lb per row of coil) | 2.7 | 3.0 | 3.4 | 3.7 | |
| Coils | |||||
| FPI | 10 | 10 | 10 | 10 | |
| Coil face area (sq. ft.) | 3.5 | 4.1 | 4.6 | 5.0 | |
| Motor (qty) | 2 | 2 | 2 | 2 | |
| Blower (qty) | 2 | 2 | 2 | 2 | |
| Filters nominal size (in.) (1-inch thick) | |||||
| 42DA | N/A | N/A | N/A | N/A | |
| 42DC | 14 x 40 | 14 x 45 | 14 x 50 | 14 x 54 | |
| 42DD (front return) | 12¾ x 40 | 12¾ x 45 | 12¾ x 50 | 12¾ x 54 | |
| 42DD (bottom return) | 12¾ x 39 | 12¾ x 44 | 12¾ x 49 | 12¾ x 53 | |
| 42DE | 14 x 33¾ | 14 x 38¾ | 14 x 43¾ | 14 x 47¾ | |
| 42DF | 14 x 34 | 14 x 38 | 14 x 44 | 14 x 48 | |
| Qty | 1 | 1 | 1 | 1 | |
| Supply duct collar | 1-in. | 1-in. | 1-in. | 1-in. | |
| Piping connections coil inlet/outlet (in. OD) | |||||
| 1 and 2 Row | 5/8 | 5/8 | 5/8 | 5/8 | |
| 3 Row | 7/8 | 7/8 | 7/8 | 7/8 | |
| 4 Row | 7/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
| 5 Row | 1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
| 6 Row | 1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
| 8 Row | 1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
*Calculate operating weight of unit: shipping weight + coil water weight x number of coil rows.
