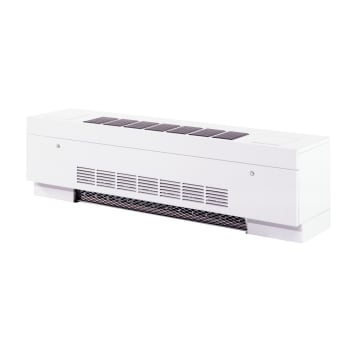

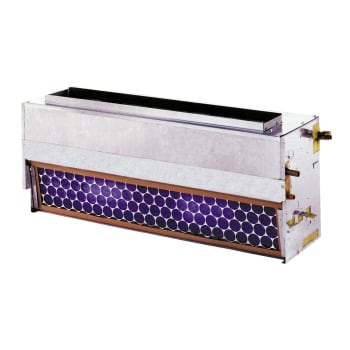

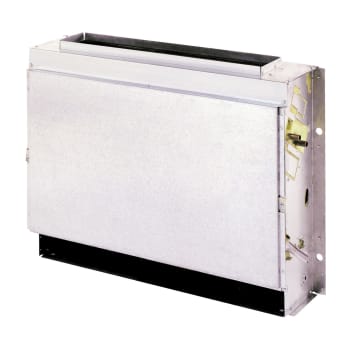

Airstream™ 42V
Airstream™
42V
Performance Features
- Airflow capacities from 200 to 1200 cfm.
- Outside air opening with or without adjustable damper (0 to 25%).
- 2-pipe or 4-pipe system combinations.
- Economical, 3-speed fans deliver the right amount of conditioned air for comfort needs at any load.
- Optional electronically commutated motors deliver peak operating efficiency.
- Sound-absorbing insulation is used to line the cabinet.
- Certified performance in accordance with AHRI Standard 440.
Reliability Features
- Coils are factory leak tested at 300 psig air pressure with coil submerged in water.
- All equipment wiring complies with NEC requirements.
- Optional electric heaters are fully sheathed for marine applications.
- Unit casing meets UL 181 and NFPA 90A standards.
Maintenance Features
- Cleanable or throwaway filters available.
- Removable panels make access to components and connections easy.
- Label information adhered to each unit includes model, size, coil information, electrical information, and tagging data.
- Units include stainless steel marine double drain pan for positive drainage during pitch and roll.
Installation Features
- Piping, drain, and wiring connections are readily accessible.
- Factory-installed controls.
- Single point electrical connection.
- Valve packages available.
Standard Warranty
- One-year parts.
Factory-Installed Options
- 3-speed switches.
- Line voltage thermostats.
- 24 v Carrier Debonair® programmable or non-programmable thermostats.
- Product Integrated direct digital electronic controls (i-Vu® control system using BACnet® protocol).
- Chilled water or direct expansion cooling coils.
- Hot water or steam heating coils.
- Total or auxiliary electric heat (fully sheathed).
- Service switches.
- Custom colors.
- Permanent or throwaway filters.
- Automatic air vent and drain on water coils.
- Double deflection discharge grilles.
- Tell-tale drains and stainless steel drain pans.
- Condensate overflow switch.
- Dual density fiberglass, foil faced fiberglass or closed cell insulation.
- PSC, High Static PSC, or ECM motors.
- Tamper proof locks on access panels and doors.
- Leveling legs.
- Outside air damper (42VA,VB,VF units only).
- Outside air wall box (42VA,VB,VF units only).
- 16 gage, galvanized steel front panel (42VB,VF units only).
Field-Installed Accessories
- Remote mounted thermostats.
- Valve packages factory wired and assembled for field mounting.
- Drip lips for collection of condensate under valve packages.
- Wall panels for recessed units.
Physical data (Sizes 01-04)
| Size | 01 | 02 | 03 | 04 |
|---|---|---|---|---|
| Nominal airflow (cfm) | 150 | 200 | 300 | 400 |
| Shipping weight (lb)* | ||||
| 42V | -- | 42 | 47 | 57 |
| 42VB | -- | 63 | 68 | 82 |
| 42VC | -- | 50 | 60 | 72 |
| 42VE | -- | 72 | 100 | 108 |
| 42VF | -- | 64 | 69 | 83 |
| 42VG | 40 | -- | 74 | -- |
| Coil water weight (approx. lb per row of coil) | ||||
| 42VA, VB, VC†, VF | -- | 0.7 | 0.8 | 1.0 |
| 42VE | -- | 0.9 | 1.2 | 1.6 |
| 42VG | 0.4 | -- | 1.0 | -- |
| Coils (FPI) | ||||
| FPI (42VA, VB,VF) | 12 | 12 | 12 | 12 |
| FPI (42VC, VE, VG) | 10 | 10 | 10 | 10 |
| Coil Face Area (sq ft) | 0.8 | 0.8 | 1.1 | 1.4 |
| Motor (qty) | ||||
| 42VA, VB, VF | -- | 1 | 1 | 1 |
| 42VC, VE | -- | 1 | 1 | 1 |
| 42VG | 1 | -- | 2 | -- |
| Filters nominal size (in) (1-in. thick) | ||||
| 42VA, VB, VF | -- | 7-3/4 x 21-3/4 | 7-3/4 x 21-3/4 | 7-3/4 x 31-3/4 |
| 42VC, VE | -- | 7 x 21-3/4 | 7 x 26-3/4 | 7 x 34-3/4 |
| 42VG | 10 x 14-1/2 | -- | 10 x 28 | -- |
| Qty | 1 | 1 | 1 | 1 |
| Supply duct collar | 1-in | 1-in | 1-in | 1-in |
| Piping connections (sweat) (in.) | ||||
| Coil outlet and inlet | 5/8 OD | 5/8 OD | 5/8 OD | 5/8 OD |
| Drain connection | 3/4 MPT | 3/4 MPT | 3/4 MPT | 3/4 MPT |
Physical data (Sizes 06-12)
| Unit size | 06 | 08 | 10 | 12 |
|---|---|---|---|---|
| Nominal airflow (cfm) | 600 | 800 | 1000 | 1200 |
| Shipping weight (lb)* | ||||
| 42V | 77 | 79 | 108 | 127 |
| 42VB | 99 | 101 | 133 | 154 |
| 42VC | 110 | -- | -- | -- |
| 42VE | 154 | -- | -- | -- |
| 42VF | 100 | 102 | 135 | 156 |
| 42VG | -- | -- | -- | -- |
| Coil water weight (approx. lb per row of coil) | ||||
| 42VA, VB, VC†, VF | 1.4 | 4.7 | 2.3 | 2.7 |
| 42VE | 2.3 | -- | -- | -- |
| 42VG | -- | -- | -- | -- |
| Coils (FPI) | ||||
| FPI (42VA, VB,VF) | 12 | 12 | 12 | 12 |
| FPI (42VC, VE, VG) | 10 | 10 | 10 | 10 |
| Coil face area (sq. ft.) | 1.9 | 2.3 | 3.2 | 3.7 |
| Motor (qty) | ||||
| 42VA, VB, VF | 1 | 1 | 2 | 2 |
| 42VC, VE | 2 | -- | -- | -- |
| 42VG | -- | -- | -- | -- |
| Filters nominal size (in) (1-in. thick) | ||||
| 42VA, VB, VF | 7-3/4 x 41-3/4 | 7-3/4 x 43-3/4 | 7-3/4 x 57-3/4 | 7-3/4 x 65-3/4 |
| 42VC, VE | 7 x 48-3/4 | -- | -- | -- |
| 42VG | -- | -- | -- | -- |
| Qty | 1 | 1 | 1 | 1 |
| Supply duct collar | 1-in | 1-in | 1-in | 1-in |
| Piping connections (sweat) (in.) | ||||
| Coil outlet and inlet | 5/8 OD | 5/8 OD | 5/8 OD | 5/8 OD |
| Drain connection | 3/4 MPT | 3/4 MPT | 3/4 MPT | 3/4 MPT |
*Calculate operating weight of unit: Shipping weight + coil water weight x number of coil rows
†Available in sizes 02-06.
