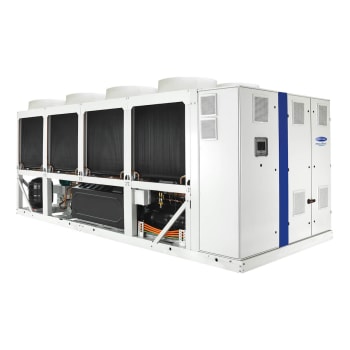

AquaForce^® - Variable-speed air-cooled screw liquid chiller using HFO R-1234ze refrigerant
30KAVP/30KAVPZE

The range is available in 4 efficiency levels:

• 30KAVZE standard unit
• 30KAVZE with EC fans (option 17) - enhances the seasonal energy efficiency
• 30KAVZE with High Energy Efficiency (option 119) - equipped with additional heat exchange surface to deliver optimum performance at both full load and part load
• 30KAVZE with High Energy Efficiency+ (option 119+) - equipped with EC fans and additional heat exchange surface to provide the highest possible seasonal energy efficiency

Outstanding energy performance

• 2nd generation of Carrier high-efficiency variable-speed twin-screw compressors with built in volume index control (Vi) valve for both optimal full and part load performance
• Variable-speed Flying Bird™ fans with EC motor minimizing power consumption
• Novation^® aluminum condenser with high-efficiency micro-channel coils technology
• Optimized electrical performance
• Hydraulic module with variable-speed dual pump
• Smart energy monitoring

Built-in reliability and easy servicing

• Screw compressors are industrial-type with oversize bearings and motor cooled by suction gas
• Variable-speed fans
• Novation^® aluminum micro-channel heat exchangers (MCHE) with high corrosion resistance
• Flooded evaporator with mechanically cleanable water tubes
• Two independent refrigerant circuits to secure partial cooling
• Auto-adaptive control
• Exceptional endurance tests

Minimized operating sound levels

• Greenspeed^® Intelligence, featuring variable-speed screw compressors and condenser fans, minimizes noise levels at part load operation
• New generation of Carrier 06Z variable-speed twin screw compressor with integrated resonator array
• 6th generation of silent Flying Bird™ fans
• 4 sound levels to match the most sensitive environments

Easy and fast installation

• Built-in variable speed pumps up to 800 kW
• Compact units for easy transportation and installation
• Simplified electrical connections
• Simplified water connections
• Fast commissioning

Environmental care

• Automatic energy meter
• PUREtec™ R-1234ze long-term refrigerant solution
• 40% less refrigerant allowed by the micro-channel technology
• Leak tight refrigerant circuits
• Refrigerant leak alert
• Refrigerant leak detection (option)

Designed to support Green Building Design

•  LEED^® (Leadership in Energy and Environmental Design) certification

New generation of Carrier 06Z variable-speed twin screw compressor

• Twin screw compressor optimized for variable speed operation
• Separate air-cooled inverter drive for increased reliability
• Integrated Resonator Array (IRA) to reduce the sound level by up to 6 dB(A) when compared with previous 06T generation
• Integrated Check Valve for quiet shutdown
• Bearing life exceeding 100 000 hours
• A dedicated oil separator is installed at the discharge of each compressor to ensure maximum oil return
• Volume index control (Vi) valve provides a reliable method of adjusting the compression ratio to better match system demand
• Screw compressors work on the positive displacement principle to compress gas to a higher pressure. As a result, if there is an unusually high pressure in the condenser, the compressor does not switch off, but continues operation at reduced capacity (unloaded mode)
• The silencer in the oil separator line considerably reduces discharge gas pulsations for much quieter operation

• 30KAVZE : SEER LT 12/7 up to 5.3 and SEPR HT 12/7 up to 6.52
• 30KAVZE : with EC fan motors (option 17) SEER LT is up to 5.39 and SEPR HT up to 6.6
• 30KAVZE : with High Energy Efficiency (option 119) SEER LT is up to 5.48 and SEPR HT up to 6.84
• 30KAVZE : with High Energy Efficiency+ (option 119+) SEER LT is up to 5.55 and SEPR HT up to 6.95
• 30KAVPZE : SEER LT is up to 5.71 and SEPR HT up to 7.18

SmartVu™ control

• Intuitive and user-friendly, coloured, 7" interface
• 10 languages available
• Easy access to the controller box
• Password protection
• Night-mode
• Energy management

Remote management as standard

• Easily accessed from the internet
• Multiple remote control, monitoring and diagnostic possibilities
• Optional communication gateways
• Start/Stop of the machine
• Dual set-point management
• Water pump control

Remote management (EMM option)

• Extended remote control possibilities: room temperature, set-point reset, etc.

• EC fans
• High energy efficiency and High energy efficiency+
• Low and high pressure variable-speed dual pumps
• Low noise and very low noise
• Side enclosure panels and grilles
• High ambient temperature operation up to 55°C
• IP 54 control box
• Evaporator and pumps aluminum jacket
• Service valves
• BACnet, JBus and Lon communication interfaces
• Wireless connectivity for remote energy monitoring
