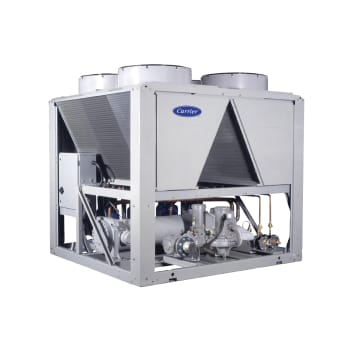

AquaSnap®
30RB
30RB with Greenspeed® Intelligence
Air-Cooled Liquid Chiller
Puron® Refrigerant (R-410A)
211 to 1,371 Nominal kW
60 to 390 Nominal Tons
The AquaSnap 30RB chiller is an effective all-in-one package that is easy to install and easy to own. The chiller costs less to purchase and install and then operates quietly and efficiently. Value-added features include rotary scroll compression, Puron® refrigerant (R-410A), a quiet AeroAcoustic™ fan system, easy to use ComfortLink™ controls, microchannel condenser coil technology, optional integrated hydronic pump package (with or without VFD), optional full heat recovery package, and optional high-efficiency variable condenser fans (Greenspeed® intelligence). Greenspeed intelligence results in best-in-class part-load efficiency with quiet part-load operation.
Performance Features
- Full-load EER values up to 10.3 and IPLV values up to 17.1 (units with Greenspeed™ intelligence).
- ASHRAE 90.1 complaint / AHRI certified.
- High efficiency variable condenser fans (Greenspeed intelligence) / Low sound levels.
- Operation from -20 °F to 125 °F ambient conditions.
- Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) condenser coils.
- Hydronic pump package (with or without VFD) on sizes 060-190.
- Full heat recovery on sizes 060-190 (factory-installed option, but N/A with hydronic package).
Additional Important Options
- Energy Management Module minimizes chiller energy consumption.
- Non-fused disconnect switch.
- Minimum load control.
- Low ambient head pressure control.
- ComfortLink controls with scrolling marquee display module.
- BACnet® communication or BACnet and LON translator control.
- EXV (electronic expansion valve).
Reliability Features
- ASME constructed evaporators / ETL (and ETL Canada) listed.
- Heavy-gauge galvanized steel frame.
- Security grilles and hail guards/privacy screen choices.
- Low ambient head pressure control.
- Coil corrosion coatings available on all coil types.
- High short circuit current rating.
- EXV (Electronic expansion valve).
Maintenance Features
- Over 15 diagnostic functions.
- Permanently lubricated fan motor bearings.
- Compressor suction service valves.
- Microchannel condenser coils with inherent corrosion resistance and offering simplified cleaning.
- Unit-mounted, non-fused disconnect.
- Remote service port for easier machine diagnostics.
Installation Features
- Factory charged with Puron® (R-410A) refrigerant.
- Integrated hydronic pump package (with or without VFD) on sizes 060-190 (factory-installed option, but N/A with heat recovery option).
- Full heat recovery on sizes 060-190 (factory-installed option, but N/A with hydronic package).
- Remote cooler kit.
- Single or dual-point electrical connections available.
- Integral control transformer.
- Structurally robust base.
Standard Warranty
- 3 year coil parts only on Novation microchannel heat exchanger.
- One year from start-up or 18 months from shipment limited warranty.
- Extended warranty packages available.
Factory-Installed Options
- High efficiency variable condenser fans (Greenspeed™ intelligence).
- Hydronic pump package with or without VFD (sizes 060-190).
- Heat Reclaim.
- Condenser coil options:
- Microchannel:
- Non-coated
- E-coated
- Aluminum fins:
- Non-coated
- Pre-coated
- E-coated
- Copper fins:
- Non-coated
- E-coated
- Microchannel:
- Non-fused disconnect.
- Minimum load control.
- Security grilles.
- Energy Management Module.
- Compressor sound reduction enclosures.
- Service option.
- Compressor suction service valve.
- Condenser coil trim panels.
- Condenser coil upper hail guards.
- Full end screen.
- BACnet® communication.
- BACnet® translator control.
- LON (local operating network) translator control.
- Low ambient temperature head pressure control.
- Single or dual-point electrical connection.
- Freeze protection (cooler heaters).
- Suction line insulation.
- High short circuit current rating.
- CRN cooler.
Field-Installed Accessories
- Minimum load control.
- Security grilles.
- Condenser coil full hail guards.
- Navigator™ display.
- Remote enhanced display.
- Chillervisor System Manger III multi-unit control.
- GFI convenience outlet.
- Energy Management Module.
- Touch Pilot™ display.
- LON (local operating network) translator control.
- BACnet® translator control.
- Remote service port.
- Remote cooler.
- Condenser coil trim panels.
- Low ambient temperature head pressure control.
- Dual-chiller accessory kit.
AHRI Capacity Ratings* - Standard Units
Size | Capacity
(Tons) |
Capacity
(kW) |
Compressor
(kW) |
Fan
(kW) |
---|---|---|---|---|
060 | 57.1 | 200.6 | 60.3 | 10.3 |
070 | 66.2 | 232.8 | 70.1 | 10.3 |
080 | 76.0 | 267.3 | 83.1 | 10.3 |
090 | 86.6 | 304.6 | 85.2 | 15.5 |
100 | 92.8 | 326.5 | 94.1 | 15.5 |
110 | 106.0 | 372.8 | 110.2 | 15.5 |
120 | 118.0 | 415.0 | 119.7 | 18.1 |
130 | 127.4 | 448.1 | 129.6 | 20.6 |
150 | 140.0 | 492.4 | 145.9 | 20.6 |
160 | 152.8 | 537.5 | 151.7 | 25.8 |
170 | 164.1 | 576.9 | 168.0 | 25.8 |
190 | 186.1 | 654.7 | 188.8 | 31.0 |
210 | 195.4 | 687.3 | 208.3 | 31.0 |
225 | 206.2 | 725.0 | 222.2 | 31.0 |
250 | 227.6 | 800.3 | 243.2 | 36.1 |
275 | 250.5 | 881.0 | 263.9 | 41.3 |
300 | 271.8 | 955.8 | 283.9 | 46.5 |
315 | 305.7 | 1075.1 | 303.4 | 51.6 |
330 | 316.9 | 1114.5 | 319.7 | 51.6 |
345 | 328.1 | 1153.9 | 336.0 | 51.6 |
360 | 350.2 | 1231.6 | 356.7 | 56.8 |
390 | 372.3 | 1309.3 | 377.5 | 61.9 |
AHRI Capacity Ratings* - Standard Units (Continued)
Size | Total power
(kW) |
Full load | IPLV | ||
---|---|---|---|---|---|
EER | COR | EER | COR | ||
060 | 70.6 | 9.7 | 2.8 | 13.1 | 3.8 |
070 | 80.4 | 9.9 | 2.9 | 13.4 | 3.9 |
080 | 93.4 | 9.8 | 2.9 | 14.3 | 4.2 |
090 | 100.7 | 10.3 | 3.0 | 13.7 | 4.0 |
100 | 109.6 | 10.2 | 3.0 | 13.5 | 4.0 |
110 | 125.7 | 10.1 | 3.0 | 13.9 | 4.1 |
120 | 137.7 | 10.3 | 3.0 | 13.8 | 4.0 |
130 | 150.2 | 10.2 | 3.0 | 13.8 | 4.0 |
150 | 166.6 | 10.0 | 3.0 | 13.6 | 4.0 |
160 | 177.5 | 10.3 | 3.0 | 13.6 | 4.0 |
170 | 193.8 | 10.2 | 3.0 | 13.6 | 4.0 |
190 | 219.7 | 10.2 | 3.0 | 13.4 | 3.9 |
210 | 239.3 | 9.8 | 2.9 | 13.3 | 3.9 |
225 | 253.1 | 9.8 | 2.9 | 13.4 | 3.9 |
250 | 279.4 | 9.8 | 2.9 | 13.4 | 3.9 |
275 | 305.2 | 9.8 | 2.9 | 13.3 | 3.9 |
300 | 330.4 | 9.9 | 2.9 | 13.2 | 3.9 |
315 | 355.0 | 10.3 | 3.0 | 13.6 | 4.0 |
330 | 371.3 | 10.2 | 3.0 | 13.6 | 4.0 |
345 | 387.6 | 10.2 | 3.0 | 13.6 | 4.0 |
360 | 413.5 | 10.2 | 3.0 | 13.4 | 4.0 |
390 | 439.5 | 10.2 | 3.0 | 13.4 | 4.0 |
AHRI Capacity Ratings* - Standard Units (Continued)
Size | Cooler flow rate | Cooler pressure drop | ||
---|---|---|---|---|
gpm | L/s | (ft) | (kPa) | |
060 | 136.5 | 8.6 | 8.9 | 26.6 |
070 | 158.9 | 10.0 | 11.7 | 34.9 |
080 | 182.4 | 11.5 | 7.0 | 21.1 |
090 | 207.8 | 13.1 | 9.0 | 26.8 |
100 | 222.0 | 14.1 | 10.2 | 30.4 |
110 | 254.4 | 16.1 | 9.0 | 26.8 |
120 | 283.2 | 17.9 | 10.9 | 32.6 |
130 | 305.8 | 19.3 | 12.6 | 37.6 |
150 | 336.0 | 21.2 | 7.2 | 21.4 |
160 | 366.8 | 23.1 | 8.4 | 25.2 |
170 | 393.7 | 24.8 | 9.6 | 28.8 |
190 | 446.8 | 28.2 | 12.2 | 36.6 |
210 | 469.1 | 29.6 | 9.4 | 28.1 |
225 | 494.8 | 31.2 | 10.4 | 31.2 |
250 | 546.1 | 34.5 | 12.6 | 37.7 |
275 | 601.2 | 37.9 | 15.2 | 45.3 |
300 | 652.2 | 41.1 | 17.7 | 53.0 |
315 | 733.7 | 46.3 | 8.4 | 25.1 |
330 | 760.6 | 48.0 | 9.6 | 28.7 |
345 | 787.5 | 49.7 | 9.6 | 28.7 |
360 | 840.5 | 53.0 | 12.2 | 36.5 |
390 | 893.5 | 56.4 | 12.2 | 36.5 |
AHRI Capacity Ratings* - Units with Greenspeed® Intelligence
Size | Capacity
(Tons) |
Capacity
(kW) |
Compressor
(kW) |
Fan
(kW) |
---|---|---|---|---|
080 | 76.0 | 267.4 | 83.1 | 10.3 |
090 | 86.6 | 304.6 | 85.2 | 15.5 |
100 | 92.8 | 326.5 | 94.1 | 15.5 |
110 | 106.0 | 372.8 | 110.2 | 15.5 |
120 | 118.0 | 415.0 | 119.7 | 18.1 |
130 | 127.4 | 448.1 | 129.6 | 20.6 |
150 | 140.0 | 492.4 | 146.0 | 20.6 |
160 | 152.8 | 537.5 | 151.7 | 25.8 |
170 | 164.1 | 576.9 | 167.8 | 25.8 |
190 | 186.1 | 654.7 | 188.8 | 31.0 |
210 | 195.4 | 687.4 | 208.3 | 31.0 |
225 | 206.1 | 725.0 | 222.2 | 31.0 |
250 | 227.6 | 800.3 | 243.2 | 36.1 |
275 | 250.5 | 880.9 | 263.9 | 41.3 |
300 | 271.8 | 955.7 | 283.8 | 46.5 |
315 | 305.7 | 1075.1 | 303.2 | 51.6 |
330 | 316.9 | 1114.5 | 319.4 | 51.6 |
345 | 328.1 | 1153.9 | 335.6 | 51.6 |
360 | 350.2 | 1231.6 | 356.6 | 56.8 |
390 | 372.3 | 1309.3 | 377.6 | 61.9 |
AHRI Capacity Ratings* - Units with Greenspeed® Intelligence (Continued)
Size | Total power
(kW) |
Full load | IPLV | ||
---|---|---|---|---|---|
EER | COP | EER | COP | ||
080 | 93.4 | 9.8 | 2.9 | 15.8 | 4.6 |
090 | 100.7 | 10.3 | 3.0 | 16.0 | 4.7 |
100 | 109.6 | 10.2 | 3.0 | 15.9 | 4.6 |
110 | 125.7 | 10.1 | 3.0 | 16.7 | 4.9 |
120 | 137.8 | 10.3 | 3.0 | 16.9 | 4.9 |
130 | 150.2 | 10.2 | 3.0 | 16.8 | 4.9 |
150 | 166.7 | 10.1 | 3.0 | 16.8 | 4.9 |
160 | 177.4 | 10.3 | 3.0 | 17.0 | 5.0 |
170 | 193.8 | 10.2 | 3.0 | 17.1 | 5.0 |
190 | 219.8 | 10.2 | 3.0 | 17.1 | 5.0 |
210 | 239.3 | 9.8 | 2.9 | 16.3 | 4.8 |
225 | 253.2 | 9.8 | 2.9 | 16.4 | 4.8 |
250 | 279.4 | 9.8 | 2.9 | 16.4 | 4.8 |
275 | 305.2 | 9.8 | 2.9 | 16.4 | 4.8 |
300 | 330.2 | 9.9 | 2.9 | 16.4 | 4.8 |
315 | 354.9 | 10.3 | 3.0 | 17.0 | 5.0 |
330 | 371.1 | 10.2 | 3.0 | 17.1 | 5.0 |
345 | 387.3 | 10.2 | 3.0 | 17.1 | 5.0 |
360 | 413.4 | 10.2 | 3.0 | 17.1 | 5.0 |
390 | 439.5 | 10.2 | 3.0 | 17.1 | 5.0 |
AHRI Capacity Ratings* - Units with Greenspeed® Intelligence (Continued)
Size | Cooler flow rate | Cooler pressure drop | ||
---|---|---|---|---|
(gpm) | (L/s) | (ft) | (kPa) | |
080 | 182.5 | 11.5 | 7.1 | 21.1 |
090 | 207.8 | 13.1 | 9.0 | 26.8 |
100 | 222.8 | 14.1 | 10.2 | 30.4 |
110 | 254.4 | 16.1 | 9.0 | 26.8 |
120 | 283.3 | 17.9 | 10.9 | 32.6 |
130 | 305.8 | 19.3 | 12.6 | 37.6 |
150 | 336.0 | 21.2 | 7.2 | 21.4 |
160 | 366.8 | 23.1 | 8.4 | 25.2 |
170 | 393.7 | 24.8 | 9.6 | 28.8 |
190 | 446.8 | 28.2 | 12.2 | 36.6 |
210 | 469.1 | 29.6 | 9.4 | 28.1 |
225 | 494.8 | 31.2 | 10.4 | 31.2 |
250 | 546.1 | 34.5 | 12.6 | 37.7 |
275 | 601.2 | 37.9 | 15.2 | 45.3 |
300 | 652.2 | 41.2 | 17.7 | 53.0 |
315 | 733.7 | 46.3 | 8.4 | 25.2 |
330 | 757.9 | 47.7 | 9.0 | 26.8 |
345 | 787.4 | 49.7 | 9.6 | 28.8 |
360 | 840.5 | 53.0 | 12.2 | 36.6 |
390 | 893.5 | 56.4 | 12.2 | 36.6 |
LEGEND
COP = Coefficient of performance
IPLV = Integrated part load value
EER = Energy efficiency ratio
*Air Conditioning, Heating & Refrigeration Institute
NOTES
1. Based on AHRI-550/590 standard rating conditions. Ratings are for standard chillers only. Ratings do not include options.
2. Standard rating conditions are as follows:
Cooler Conditions:
Leaving water temperature: 44°F (6.7°C)
Flow rate: 2.4gpm/ton (0.043 l/s/k/W)
Fouling Factor:
0.00010 hr x sq ft °F/Btu (0.000018m2x °C/W)
Condenser Conditions:
Entering Air Temperature: 95°F (35°C)
3. 30RB with Greenspeed Intelligence is not available on unit sizes 060 and 070.
Weights and Dimensions
Size | Operating weight* (Lbs) | Dimensions (ft-in) | ||
---|---|---|---|---|
Length | Width | Height | ||
060 | 4,593 | 7-11 | 7-4 | 7-6 |
070 | 4,799 | 7-11 | 7-4 | 7-6 |
080 | 5,082 | 7-11 | 7-4 | 7-6 |
090 | 6,656 | 11-10 | 7-4 | 7-6 |
100 | 6,879 | 11-10 | 7-4 | 7-6 |
110 | 7,243 | 11-10 | 7-4 | 7-6 |
120 | 8,534 | 15-9 | 7-4 | 7-6 |
130 | 9,010 | 15-9 | 7-4 | 7-6 |
150 | 10,139 | 15-9 | 7-4 | 7-6 |
160 | 11,472 | 19-8 | 7-4 | 7-6 |
170 | 11,807 | 19-8 | 7-4 | 7-6 |
190 | 13,460 | 23-7 | 7-4 | 7-6 |
210 | 15,181 | 23-7 | 7-4 | 7-6 |
225 | 15,514 | 23-7 | 7-4 | 7-6 |
250 | 17,157 | 27-6 | 7-4 | 7-6 |
275 | 18,845 | 31-5 | 7-4 | 7-6 |
300 | 20,477 | 35-4 | 7-4 | 7-6 |
315 | 11,472/11,472** | 19-8/19-8 | 7-4 | 7-6 |
330 | 11,807/11,472** | 19-8/19-8 | 7-4 | 7-6 |
345 | 11,807/11,807** | 19-8/19-8 | 7-4 | 7-6 |
360 | 13,460/11,807** | 23-7/19-8 | 7-4 | 7-6 |
390 | 13,460/13,460** | 23-7/23-7 | 7-4 | 7-6 |
*Cu-Al Coils
**Module A/Module B
Performance Features
- Full-load EER values up to 10.3 and IPLV values up to 17.1 (units with Greenspeed™ intelligence).
- ASHRAE 90.1 complaint / AHRI certified.
- High efficiency variable condenser fans (Greenspeed intelligence) / Low sound levels.
- Operation from -20 °F to 125 °F ambient conditions.
- Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) condenser coils.
- Hydronic pump package (with or without VFD) on sizes 060-190.
- Full heat recovery on sizes 060-190 (factory-installed option, but N/A with hydronic package).
Additional Important Options
- Energy Management Module minimizes chiller energy consumption.
- Non-fused disconnect switch.
- Minimum load control.
- Low ambient head pressure control.
- ComfortLink controls with scrolling marquee display module.
- BACnet® communication or BACnet and LON translator control.
- EXV (electronic expansion valve).
Reliability Features
- ASME constructed evaporators / ETL (and ETL Canada) listed.
- Heavy-gauge galvanized steel frame.
- Security grilles and hail guards/privacy screen choices.
- Low ambient head pressure control.
- Coil corrosion coatings available on all coil types.
- High short circuit current rating.
- EXV (Electronic expansion valve).
Maintenance Features
- Over 15 diagnostic functions.
- Permanently lubricated fan motor bearings.
- Compressor suction service valves.
- Microchannel condenser coils with inherent corrosion resistance and offering simplified cleaning.
- Unit-mounted, non-fused disconnect.
- Remote service port for easier machine diagnostics.
Installation Features
- Factory charged with Puron® (R-410A) refrigerant.
- Integrated hydronic pump package (with or without VFD) on sizes 060-190 (factory-installed option, but N/A with heat recovery option).
- Full heat recovery on sizes 060-190 (factory-installed option, but N/A with hydronic package).
- Remote cooler kit.
- Single or dual-point electrical connections available.
- Integral control transformer.
- Structurally robust base.
Standard Warranty
- 3 year coil parts only on Novation microchannel heat exchanger.
- One year from start-up or 18 months from shipment limited warranty.
- Extended warranty packages available.
Factory-Installed Options
- High efficiency variable condenser fans (Greenspeed™ intelligence).
- Hydronic pump package with or without VFD (sizes 060-190).
- Heat Reclaim.
- Condenser coil options:
- Microchannel:
- Non-coated
- E-coated
- Aluminum fins:
- Non-coated
- Pre-coated
- E-coated
- Copper fins:
- Non-coated
- E-coated
- Microchannel:
- Non-fused disconnect.
- Minimum load control.
- Security grilles.
- Energy Management Module.
- Compressor sound reduction enclosures.
- Service option.
- Compressor suction service valve.
- Condenser coil trim panels.
- Condenser coil upper hail guards.
- Full end screen.
- BACnet® communication.
- BACnet® translator control.
- LON (local operating network) translator control.
- Low ambient temperature head pressure control.
- Single or dual-point electrical connection.
- Freeze protection (cooler heaters).
- Suction line insulation.
- High short circuit current rating.
- CRN cooler.
Field-Installed Accessories
- Minimum load control.
- Security grilles.
- Condenser coil full hail guards.
- Navigator™ display.
- Remote enhanced display.
- Chillervisor System Manger III multi-unit control.
- GFI convenience outlet.
- Energy Management Module.
- Touch Pilot™ display.
- LON (local operating network) translator control.
- BACnet® translator control.
- Remote service port.
- Remote cooler.
- Condenser coil trim panels.
- Low ambient temperature head pressure control.
- Dual-chiller accessory kit.
AHRI Capacity Ratings* - Standard Units
Size | Capacity
(Tons) |
Capacity
(kW) |
Compressor
(kW) |
Fan
(kW) |
---|---|---|---|---|
060 | 57.1 | 200.6 | 60.3 | 10.3 |
070 | 66.2 | 232.8 | 70.1 | 10.3 |
080 | 76.0 | 267.3 | 83.1 | 10.3 |
090 | 86.6 | 304.6 | 85.2 | 15.5 |
100 | 92.8 | 326.5 | 94.1 | 15.5 |
110 | 106.0 | 372.8 | 110.2 | 15.5 |
120 | 118.0 | 415.0 | 119.7 | 18.1 |
130 | 127.4 | 448.1 | 129.6 | 20.6 |
150 | 140.0 | 492.4 | 145.9 | 20.6 |
160 | 152.8 | 537.5 | 151.7 | 25.8 |
170 | 164.1 | 576.9 | 168.0 | 25.8 |
190 | 186.1 | 654.7 | 188.8 | 31.0 |
210 | 195.4 | 687.3 | 208.3 | 31.0 |
225 | 206.2 | 725.0 | 222.2 | 31.0 |
250 | 227.6 | 800.3 | 243.2 | 36.1 |
275 | 250.5 | 881.0 | 263.9 | 41.3 |
300 | 271.8 | 955.8 | 283.9 | 46.5 |
315 | 305.7 | 1075.1 | 303.4 | 51.6 |
330 | 316.9 | 1114.5 | 319.7 | 51.6 |
345 | 328.1 | 1153.9 | 336.0 | 51.6 |
360 | 350.2 | 1231.6 | 356.7 | 56.8 |
390 | 372.3 | 1309.3 | 377.5 | 61.9 |
AHRI Capacity Ratings* - Standard Units (Continued)
Size | Total power
(kW) |
Full load | IPLV | ||
---|---|---|---|---|---|
EER | COR | EER | COR | ||
060 | 70.6 | 9.7 | 2.8 | 13.1 | 3.8 |
070 | 80.4 | 9.9 | 2.9 | 13.4 | 3.9 |
080 | 93.4 | 9.8 | 2.9 | 14.3 | 4.2 |
090 | 100.7 | 10.3 | 3.0 | 13.7 | 4.0 |
100 | 109.6 | 10.2 | 3.0 | 13.5 | 4.0 |
110 | 125.7 | 10.1 | 3.0 | 13.9 | 4.1 |
120 | 137.7 | 10.3 | 3.0 | 13.8 | 4.0 |
130 | 150.2 | 10.2 | 3.0 | 13.8 | 4.0 |
150 | 166.6 | 10.0 | 3.0 | 13.6 | 4.0 |
160 | 177.5 | 10.3 | 3.0 | 13.6 | 4.0 |
170 | 193.8 | 10.2 | 3.0 | 13.6 | 4.0 |
190 | 219.7 | 10.2 | 3.0 | 13.4 | 3.9 |
210 | 239.3 | 9.8 | 2.9 | 13.3 | 3.9 |
225 | 253.1 | 9.8 | 2.9 | 13.4 | 3.9 |
250 | 279.4 | 9.8 | 2.9 | 13.4 | 3.9 |
275 | 305.2 | 9.8 | 2.9 | 13.3 | 3.9 |
300 | 330.4 | 9.9 | 2.9 | 13.2 | 3.9 |
315 | 355.0 | 10.3 | 3.0 | 13.6 | 4.0 |
330 | 371.3 | 10.2 | 3.0 | 13.6 | 4.0 |
345 | 387.6 | 10.2 | 3.0 | 13.6 | 4.0 |
360 | 413.5 | 10.2 | 3.0 | 13.4 | 4.0 |
390 | 439.5 | 10.2 | 3.0 | 13.4 | 4.0 |
AHRI Capacity Ratings* - Standard Units (Continued)
Size | Cooler flow rate | Cooler pressure drop | ||
---|---|---|---|---|
gpm | L/s | (ft) | (kPa) | |
060 | 136.5 | 8.6 | 8.9 | 26.6 |
070 | 158.9 | 10.0 | 11.7 | 34.9 |
080 | 182.4 | 11.5 | 7.0 | 21.1 |
090 | 207.8 | 13.1 | 9.0 | 26.8 |
100 | 222.0 | 14.1 | 10.2 | 30.4 |
110 | 254.4 | 16.1 | 9.0 | 26.8 |
120 | 283.2 | 17.9 | 10.9 | 32.6 |
130 | 305.8 | 19.3 | 12.6 | 37.6 |
150 | 336.0 | 21.2 | 7.2 | 21.4 |
160 | 366.8 | 23.1 | 8.4 | 25.2 |
170 | 393.7 | 24.8 | 9.6 | 28.8 |
190 | 446.8 | 28.2 | 12.2 | 36.6 |
210 | 469.1 | 29.6 | 9.4 | 28.1 |
225 | 494.8 | 31.2 | 10.4 | 31.2 |
250 | 546.1 | 34.5 | 12.6 | 37.7 |
275 | 601.2 | 37.9 | 15.2 | 45.3 |
300 | 652.2 | 41.1 | 17.7 | 53.0 |
315 | 733.7 | 46.3 | 8.4 | 25.1 |
330 | 760.6 | 48.0 | 9.6 | 28.7 |
345 | 787.5 | 49.7 | 9.6 | 28.7 |
360 | 840.5 | 53.0 | 12.2 | 36.5 |
390 | 893.5 | 56.4 | 12.2 | 36.5 |
AHRI Capacity Ratings* - Units with Greenspeed® Intelligence
Size | Capacity
(Tons) |
Capacity
(kW) |
Compressor
(kW) |
Fan
(kW) |
---|---|---|---|---|
080 | 76.0 | 267.4 | 83.1 | 10.3 |
090 | 86.6 | 304.6 | 85.2 | 15.5 |
100 | 92.8 | 326.5 | 94.1 | 15.5 |
110 | 106.0 | 372.8 | 110.2 | 15.5 |
120 | 118.0 | 415.0 | 119.7 | 18.1 |
130 | 127.4 | 448.1 | 129.6 | 20.6 |
150 | 140.0 | 492.4 | 146.0 | 20.6 |
160 | 152.8 | 537.5 | 151.7 | 25.8 |
170 | 164.1 | 576.9 | 167.8 | 25.8 |
190 | 186.1 | 654.7 | 188.8 | 31.0 |
210 | 195.4 | 687.4 | 208.3 | 31.0 |
225 | 206.1 | 725.0 | 222.2 | 31.0 |
250 | 227.6 | 800.3 | 243.2 | 36.1 |
275 | 250.5 | 880.9 | 263.9 | 41.3 |
300 | 271.8 | 955.7 | 283.8 | 46.5 |
315 | 305.7 | 1075.1 | 303.2 | 51.6 |
330 | 316.9 | 1114.5 | 319.4 | 51.6 |
345 | 328.1 | 1153.9 | 335.6 | 51.6 |
360 | 350.2 | 1231.6 | 356.6 | 56.8 |
390 | 372.3 | 1309.3 | 377.6 | 61.9 |
AHRI Capacity Ratings* - Units with Greenspeed® Intelligence (Continued)
Size | Total power
(kW) |
Full load | IPLV | ||
---|---|---|---|---|---|
EER | COP | EER | COP | ||
080 | 93.4 | 9.8 | 2.9 | 15.8 | 4.6 |
090 | 100.7 | 10.3 | 3.0 | 16.0 | 4.7 |
100 | 109.6 | 10.2 | 3.0 | 15.9 | 4.6 |
110 | 125.7 | 10.1 | 3.0 | 16.7 | 4.9 |
120 | 137.8 | 10.3 | 3.0 | 16.9 | 4.9 |
130 | 150.2 | 10.2 | 3.0 | 16.8 | 4.9 |
150 | 166.7 | 10.1 | 3.0 | 16.8 | 4.9 |
160 | 177.4 | 10.3 | 3.0 | 17.0 | 5.0 |
170 | 193.8 | 10.2 | 3.0 | 17.1 | 5.0 |
190 | 219.8 | 10.2 | 3.0 | 17.1 | 5.0 |
210 | 239.3 | 9.8 | 2.9 | 16.3 | 4.8 |
225 | 253.2 | 9.8 | 2.9 | 16.4 | 4.8 |
250 | 279.4 | 9.8 | 2.9 | 16.4 | 4.8 |
275 | 305.2 | 9.8 | 2.9 | 16.4 | 4.8 |
300 | 330.2 | 9.9 | 2.9 | 16.4 | 4.8 |
315 | 354.9 | 10.3 | 3.0 | 17.0 | 5.0 |
330 | 371.1 | 10.2 | 3.0 | 17.1 | 5.0 |
345 | 387.3 | 10.2 | 3.0 | 17.1 | 5.0 |
360 | 413.4 | 10.2 | 3.0 | 17.1 | 5.0 |
390 | 439.5 | 10.2 | 3.0 | 17.1 | 5.0 |
AHRI Capacity Ratings* - Units with Greenspeed® Intelligence (Continued)
Size | Cooler flow rate | Cooler pressure drop | ||
---|---|---|---|---|
(gpm) | (L/s) | (ft) | (kPa) | |
080 | 182.5 | 11.5 | 7.1 | 21.1 |
090 | 207.8 | 13.1 | 9.0 | 26.8 |
100 | 222.8 | 14.1 | 10.2 | 30.4 |
110 | 254.4 | 16.1 | 9.0 | 26.8 |
120 | 283.3 | 17.9 | 10.9 | 32.6 |
130 | 305.8 | 19.3 | 12.6 | 37.6 |
150 | 336.0 | 21.2 | 7.2 | 21.4 |
160 | 366.8 | 23.1 | 8.4 | 25.2 |
170 | 393.7 | 24.8 | 9.6 | 28.8 |
190 | 446.8 | 28.2 | 12.2 | 36.6 |
210 | 469.1 | 29.6 | 9.4 | 28.1 |
225 | 494.8 | 31.2 | 10.4 | 31.2 |
250 | 546.1 | 34.5 | 12.6 | 37.7 |
275 | 601.2 | 37.9 | 15.2 | 45.3 |
300 | 652.2 | 41.2 | 17.7 | 53.0 |
315 | 733.7 | 46.3 | 8.4 | 25.2 |
330 | 757.9 | 47.7 | 9.0 | 26.8 |
345 | 787.4 | 49.7 | 9.6 | 28.8 |
360 | 840.5 | 53.0 | 12.2 | 36.6 |
390 | 893.5 | 56.4 | 12.2 | 36.6 |
LEGEND
COP = Coefficient of performance
IPLV = Integrated part load value
EER = Energy efficiency ratio
*Air Conditioning, Heating & Refrigeration Institute
NOTES
1. Based on AHRI-550/590 standard rating conditions. Ratings are for standard chillers only. Ratings do not include options.
2. Standard rating conditions are as follows:
Cooler Conditions:
Leaving water temperature: 44°F (6.7°C)
Flow rate: 2.4gpm/ton (0.043 l/s/k/W)
Fouling Factor:
0.00010 hr x sq ft °F/Btu (0.000018m2x °C/W)
Condenser Conditions:
Entering Air Temperature: 95°F (35°C)
3. 30RB with Greenspeed Intelligence is not available on unit sizes 060 and 070.
Weights and Dimensions
Size | Operating weight* (Lbs) | Dimensions (ft-in) | ||
---|---|---|---|---|
Length | Width | Height | ||
060 | 4,593 | 7-11 | 7-4 | 7-6 |
070 | 4,799 | 7-11 | 7-4 | 7-6 |
080 | 5,082 | 7-11 | 7-4 | 7-6 |
090 | 6,656 | 11-10 | 7-4 | 7-6 |
100 | 6,879 | 11-10 | 7-4 | 7-6 |
110 | 7,243 | 11-10 | 7-4 | 7-6 |
120 | 8,534 | 15-9 | 7-4 | 7-6 |
130 | 9,010 | 15-9 | 7-4 | 7-6 |
150 | 10,139 | 15-9 | 7-4 | 7-6 |
160 | 11,472 | 19-8 | 7-4 | 7-6 |
170 | 11,807 | 19-8 | 7-4 | 7-6 |
190 | 13,460 | 23-7 | 7-4 | 7-6 |
210 | 15,181 | 23-7 | 7-4 | 7-6 |
225 | 15,514 | 23-7 | 7-4 | 7-6 |
250 | 17,157 | 27-6 | 7-4 | 7-6 |
275 | 18,845 | 31-5 | 7-4 | 7-6 |
300 | 20,477 | 35-4 | 7-4 | 7-6 |
315 | 11,472/11,472** | 19-8/19-8 | 7-4 | 7-6 |
330 | 11,807/11,472** | 19-8/19-8 | 7-4 | 7-6 |
345 | 11,807/11,807** | 19-8/19-8 | 7-4 | 7-6 |
360 | 13,460/11,807** | 23-7/19-8 | 7-4 | 7-6 |
390 | 13,460/13,460** | 23-7/23-7 | 7-4 | 7-6 |
*Cu-Al Coils
**Module A/Module B
