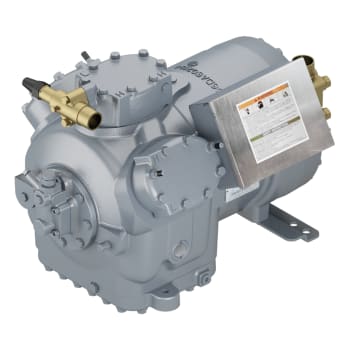

06D
Semi-Hermetic
Reciprocating Compressor
3 to 15 Nominal HP
14 to 70 Nominal m³/h
8 to 41 Nominal cfm
- Versatile and reliable performer for comfort or refrigeration.
- Compatible with R-134a, R-404A, R-407C refrigerants.
Suitable for air conditioning or refrigeration applications, purchase the bare compressor and build up your own system, or let Carrier build a complete marine condensing unit for you.
Features
- High-flow, automatically reversible oil pump provides positive-displacement oil lubrication.
- Crankcase venting system equalizes pressure during startup and assures oil return to sump.
- Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts.
- Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency.
- High-efficiency valves provide increased refrigerant flow and lower pressure drops.
- Electronic oil-pressure switch.
Performance & Physical Data
Size | Capacity low temp.
(Tons) |
Capacity medium temp.
(Tons) |
Capacity high temp.
(Tons) |
Length / depth
(in.) |
Width
(in.) |
Height
(in.) |
Operating weight
(lbs.) |
---|---|---|---|---|---|---|---|
8 | 0.62 | 1.74 | 3.04 | 19 | 10 | 15 | 160 |
13 | 0.98 | 2.66 | 4.74 | 22 | 15 | 15 | 235 |
16 | 1.23 | 3.4 | 5.9 | 22 | 15 | 15 | 235 |
18 | 1.46 | 3.95 | 6.91 | 24 | 15 | 17 | 250 |
20 | 1.73 | 4.8 | 7.95 | 24 | 15 | 17 | 260 |
24 | 1.83 | 5.48 | 8.81 | 24 | 16 | 15 | 310 |
28 | 2.19 | 6.19 | 10.64 | 24 | 18 | 16 | 315 |
37 | 2.97 | 8.6 | 14.6 | 24 | 18 | 16 | 325 |
Suitable for air conditioning or refrigeration applications, purchase the bare compressor and build up your own system, or let Carrier build a complete marine condensing unit for you.
Features
- High-flow, automatically reversible oil pump provides positive-displacement oil lubrication.
- Crankcase venting system equalizes pressure during startup and assures oil return to sump.
- Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts.
- Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency.
- High-efficiency valves provide increased refrigerant flow and lower pressure drops.
- Electronic oil-pressure switch.
Performance & Physical Data
Size | Capacity low temp.
(Tons) |
Capacity medium temp.
(Tons) |
Capacity high temp.
(Tons) |
Length / depth
(in.) |
Width
(in.) |
Height
(in.) |
Operating weight
(lbs.) |
---|---|---|---|---|---|---|---|
8 | 0.62 | 1.74 | 3.04 | 19 | 10 | 15 | 160 |
13 | 0.98 | 2.66 | 4.74 | 22 | 15 | 15 | 235 |
16 | 1.23 | 3.4 | 5.9 | 22 | 15 | 15 | 235 |
18 | 1.46 | 3.95 | 6.91 | 24 | 15 | 17 | 250 |
20 | 1.73 | 4.8 | 7.95 | 24 | 15 | 17 | 260 |
24 | 1.83 | 5.48 | 8.81 | 24 | 16 | 15 | 310 |
28 | 2.19 | 6.19 | 10.64 | 24 | 18 | 16 | 315 |
37 | 2.97 | 8.6 | 14.6 | 24 | 18 | 16 | 325 |
