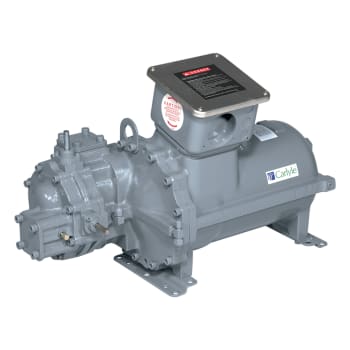

06T
Semi-Hermetic
Twin Screw Compressor
15 to 50 Nominal HP
56 to 150 Nominal m³/h
33 to 88 Nominal cfm
- Versatile and reliable performer for comfort or refrigeration.
- Compatible with R-134a, R-404A refrigerants.
Suitable for air conditioning or refrigeration applications, purchase the bare compressor and build up your own system, or let Carrier build a complete marine condensing unit for you.
Features
- Automatic unloaded starting, expensive high-torque motors are unnecessary, reducing initial expense.
- High-efficiency motor can further increase efficiency of 5F and 5H compressors.
- Crankcase casting, cylinder head, and valve plate designs allow for a smooth, unrestricted refrigerant flow.
- Refined, two-piece shaft seal assembly virtually eliminates seal leakage for maximum reliability over a wide temperature range.
- Efficient crankcase heater design prevents accumulation of liquid refrigerant in the crankcase during shutdown, dilution of the compressor oil supply.
- As suction pressure changes, capacity control automatically reduces compressor capacity to as low as 35% of full-design load, reducing horsepower requirements as demand changes. Part-load operation increases energy efficiency, reducing utility bills.
- Large-capacity, manually reversible oil pump, automatic pressure regulator, and oil-filtering system provide positive pressure lubrication, extending life.
- Suction gases flow around cylinder sleeve to keep the cylinder cool, reducing cylinder wear.
- Greater operating efficiencies by running an over sized compressor at a reduced RPM.
Performance & Physical Data
Size | Capacity low temp.
(Tons) |
Capacity medium temp.
(Tons) |
Capacity high temp.
(Tons) |
Length / depth
(in.) |
Width
(in.) |
Height
(in.) |
Operating weight
(lbs.) |
---|---|---|---|---|---|---|---|
33 | 8.11 | 8.11 | 12.44 | 33 | 15 | 20 | 365 |
39 | 10.01 | 10.01 | 15.24 | 33 | 15 | 20 | 380 |
44 | 11.37 | 11.37 | 17.26 | 33 | 15 | 20 | 380 |
48 | 12.69 | 12.69 | 19.38 | 33 | 15 | 20 | 390 |
54 | 14.56 | 14.56 | 22.04 | 33 | 15 | 20 | 390 |
65 | 18.35 | 18.35 | 28.09 | 33 | 15 | 20 | 400 |
78 | 22.11 | 22.11 | 33.63 | 33 | 15 | 20 | 405 |
88 | 24.98 | 24.98 | 38.1 | 33 | 15 | 20 | 405 |
Suitable for air conditioning or refrigeration applications, purchase the bare compressor and build up your own system, or let Carrier build a complete marine condensing unit for you.
Features
- Automatic unloaded starting, expensive high-torque motors are unnecessary, reducing initial expense.
- High-efficiency motor can further increase efficiency of 5F and 5H compressors.
- Crankcase casting, cylinder head, and valve plate designs allow for a smooth, unrestricted refrigerant flow.
- Refined, two-piece shaft seal assembly virtually eliminates seal leakage for maximum reliability over a wide temperature range.
- Efficient crankcase heater design prevents accumulation of liquid refrigerant in the crankcase during shutdown, dilution of the compressor oil supply.
- As suction pressure changes, capacity control automatically reduces compressor capacity to as low as 35% of full-design load, reducing horsepower requirements as demand changes. Part-load operation increases energy efficiency, reducing utility bills.
- Large-capacity, manually reversible oil pump, automatic pressure regulator, and oil-filtering system provide positive pressure lubrication, extending life.
- Suction gases flow around cylinder sleeve to keep the cylinder cool, reducing cylinder wear.
- Greater operating efficiencies by running an over sized compressor at a reduced RPM.
Performance & Physical Data
Size | Capacity low temp.
(Tons) |
Capacity medium temp.
(Tons) |
Capacity high temp.
(Tons) |
Length / depth
(in.) |
Width
(in.) |
Height
(in.) |
Operating weight
(lbs.) |
---|---|---|---|---|---|---|---|
33 | 8.11 | 8.11 | 12.44 | 33 | 15 | 20 | 365 |
39 | 10.01 | 10.01 | 15.24 | 33 | 15 | 20 | 380 |
44 | 11.37 | 11.37 | 17.26 | 33 | 15 | 20 | 380 |
48 | 12.69 | 12.69 | 19.38 | 33 | 15 | 20 | 390 |
54 | 14.56 | 14.56 | 22.04 | 33 | 15 | 20 | 390 |
65 | 18.35 | 18.35 | 28.09 | 33 | 15 | 20 | 400 |
78 | 22.11 | 22.11 | 33.63 | 33 | 15 | 20 | 405 |
88 | 24.98 | 24.98 | 38.1 | 33 | 15 | 20 | 405 |
