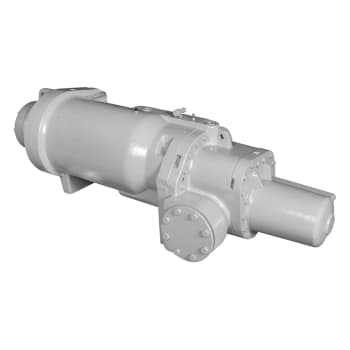

Paragon
06TV
Semi-Hermetic
Twin-Screw Compressor
for water-cooled condensing operation
340 Nominal HP
1,155 to 1,391 Nominal m³/h
680 to 819 Nominal cfm
- Easy application, high efficiency, and reliability.
- Compatible with R-134a.
Carrier's latest twin-screw technology with slide valve. Purchase the bare compressor and build up your own system, or let Carrier build a complete marine condensing unit for you.
Features
- Patented rotor profile geometry produced on state-of-the-art manufacturing processes for unequaled performance.
- Automatic unloaded starting and continuous unloading down to 25%, with built-in Vi compensation at part load.
- Dependable rolling element bearing design with sealed cavity for reduced loads.
- Oil pump is not required.
- 100% factory run tested.
- Integrated check valve for quiet shutdown and flexibility to use multiple compressors in parallel.
- High efficiency, suction cooled motor with integrated NTC winding sensor for thermal protection.
- Pre-engineered oil management accessories and flexible oil separator selections to match design requirements.
- Standard commercial marine parts warranty, OEM-backed.
Weights & Dimensions (English Units)
Model | Weight
(lbs.) |
Height
(in.) |
Width
(in.) |
Length
(in.) |
---|---|---|---|---|
06TV-680--- | 2585 | 23 | 24 | 68 |
06TV-753--- | 2608 | 23 | 24 | 68 |
06TV-819--- | 2626 | 23 | 24 | 68 |
Weights & Dimensions (Metric Units)
Model | Weight
(kg) |
Height
(mm) |
Width
(mm) |
Length
(mm) |
---|---|---|---|---|
06TV-680--- | 1173 | 583 | 608 | 1731 |
06TV-753--- | 1183 | 583 | 608 | 1731 |
06TV-819--- | 1191 | 583 | 608 | 1731 |
Carrier's latest twin-screw technology with slide valve. Purchase the bare compressor and build up your own system, or let Carrier build a complete marine condensing unit for you.
Features
- Patented rotor profile geometry produced on state-of-the-art manufacturing processes for unequaled performance.
- Automatic unloaded starting and continuous unloading down to 25%, with built-in Vi compensation at part load.
- Dependable rolling element bearing design with sealed cavity for reduced loads.
- Oil pump is not required.
- 100% factory run tested.
- Integrated check valve for quiet shutdown and flexibility to use multiple compressors in parallel.
- High efficiency, suction cooled motor with integrated NTC winding sensor for thermal protection.
- Pre-engineered oil management accessories and flexible oil separator selections to match design requirements.
- Standard commercial marine parts warranty, OEM-backed.
Weights & Dimensions (English Units)
Model | Weight
(lbs.) |
Height
(in.) |
Width
(in.) |
Length
(in.) |
---|---|---|---|---|
06TV-680--- | 2585 | 23 | 24 | 68 |
06TV-753--- | 2608 | 23 | 24 | 68 |
06TV-819--- | 2626 | 23 | 24 | 68 |
Weights & Dimensions (Metric Units)
Model | Weight
(kg) |
Height
(mm) |
Width
(mm) |
Length
(mm) |
---|---|---|---|---|
06TV-680--- | 1173 | 583 | 608 | 1731 |
06TV-753--- | 1183 | 583 | 608 | 1731 |
06TV-819--- | 1191 | 583 | 608 | 1731 |
