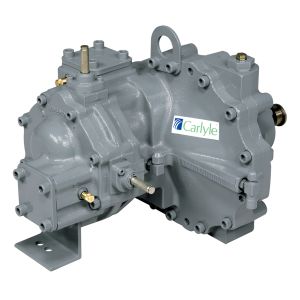

5H
Open-Drive
Reciprocating Compressor
25 to 150 Nominal HP
156 to 588 Nominal m³/h
92 to 346 Nominal cfm
- Versatile and reliable performer for comfort or refrigeration.
- Belt- or direct drive.
- Compatible with R-134a, R-404A, R-407C refrigerants.
Suitable for air conditioning or refrigeration applications, belt drive or direct drive, purchase the bare compressor and build up your own system, or let Carrier build a complete marine condensing unit for you.
Features
- Automatic unloaded starting, expensive high-torque motors are unnecessary, reducing initial expense.
- High-efficiency motor can further increase efficiency of 5F and 5H compressors.
- Crankcase casting, cylinder head, and valve plate designs allow for a smooth, unrestricted refrigerant flow.
- Refined, two-piece shaft seal assembly virtually eliminates seal leakage for maximum reliability over a wide temperature range.
- Efficient crankcase heater design prevents accumulation of liquid refrigerant in the crankcase during shutdown, dilution of the compressor oil supply.
- As suction pressure changes, capacity control automatically reduces compressor capacity to as low as 35% of full-design load, reducing horsepower requirements as demand changes. Part-load operation increases energy efficiency, reducing utility bills.
- Large-capacity, manually reversible oil pump, automatic pressure regulator, and oil-filtering system provide positive pressure lubrication, extending life.
- Suction gases flow around cylinder sleeve to keep the cylinder cool, reducing cylinder wear.
- Greater operating efficiencies by running an over sized compressor at a reduced RPM.
Performance & Physical Data
Size | Capacity low temp.
(Tons) |
Capacity medium temp.
(Tons) |
Capacity high temp.
(Tons) |
Length / depth
(in.) |
Width
(in.) |
Height
(in.) |
Operating weight
(lbs.) |
---|---|---|---|---|---|---|---|
40 | 6.11 | 22.4 | 36.07 | 31 | 25 | 29 | 610 |
60 | 9.12 | 33.58 | 53.81 | 32 | 27 | 30 | 795 |
80 | 12.24 | 44.64 | 71.45 | 44 | 25 | 32 | 1,115 |
120 | 18.33 | 67.04 | 107.39 | 47 | 27 | 35 | 1,580 |
46 | 7.61 | 27.9 | 45.69 | 31 | 25 | 29 | 610 |
66 | 11.38 | 41.82 | 67.34 | 32 | 27 | 30 | 795 |
86 | 15.27 | 55.57 | 89.31 | 44 | 25 | 32 | 1,115 |
126 | 22.77 | 83.56 | 134.51 | 47 | 27 | 35 | 1,580 |
Suitable for air conditioning or refrigeration applications, belt drive or direct drive, purchase the bare compressor and build up your own system, or let Carrier build a complete marine condensing unit for you.
Features
- Automatic unloaded starting, expensive high-torque motors are unnecessary, reducing initial expense.
- High-efficiency motor can further increase efficiency of 5F and 5H compressors.
- Crankcase casting, cylinder head, and valve plate designs allow for a smooth, unrestricted refrigerant flow.
- Refined, two-piece shaft seal assembly virtually eliminates seal leakage for maximum reliability over a wide temperature range.
- Efficient crankcase heater design prevents accumulation of liquid refrigerant in the crankcase during shutdown, dilution of the compressor oil supply.
- As suction pressure changes, capacity control automatically reduces compressor capacity to as low as 35% of full-design load, reducing horsepower requirements as demand changes. Part-load operation increases energy efficiency, reducing utility bills.
- Large-capacity, manually reversible oil pump, automatic pressure regulator, and oil-filtering system provide positive pressure lubrication, extending life.
- Suction gases flow around cylinder sleeve to keep the cylinder cool, reducing cylinder wear.
- Greater operating efficiencies by running an over sized compressor at a reduced RPM.
Performance & Physical Data
Size | Capacity low temp.
(Tons) |
Capacity medium temp.
(Tons) |
Capacity high temp.
(Tons) |
Length / depth
(in.) |
Width
(in.) |
Height
(in.) |
Operating weight
(lbs.) |
---|---|---|---|---|---|---|---|
40 | 6.11 | 22.4 | 36.07 | 31 | 25 | 29 | 610 |
60 | 9.12 | 33.58 | 53.81 | 32 | 27 | 30 | 795 |
80 | 12.24 | 44.64 | 71.45 | 44 | 25 | 32 | 1,115 |
120 | 18.33 | 67.04 | 107.39 | 47 | 27 | 35 | 1,580 |
46 | 7.61 | 27.9 | 45.69 | 31 | 25 | 29 | 610 |
66 | 11.38 | 41.82 | 67.34 | 32 | 27 | 30 | 795 |
86 | 15.27 | 55.57 | 89.31 | 44 | 25 | 32 | 1,115 |
126 | 22.77 | 83.56 | 134.51 | 47 | 27 | 35 | 1,580 |
