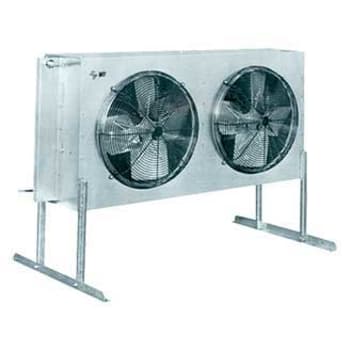

09AZ
Remote Outdoor
Air-Cooled Condenser
18 to 703 Nominal kW
5 to 200 Nominal Tons
The 09AZ remote outdoor air-cooled condensers are designed for use with Carrier’s 50XCR indoor self-contained units. These systems provide a practical and economical approach for comfort conditioning requirements in commercial re-fit or newbuild applications.
Performance Features
- High-static, direct-drive condenser fans.
- 09AZ unit specially configured for use with Carrier's 50XCR indoor self-contained unit.
- Condenser coil with integral subcooling circuit.
- Low sound motor.
- Copper tube with aluminum plate finned coils.
- E-coated coils available.
- One or two circuits, each with an integral subcooling circuit.
- TEAO (totally enclosed fan-cooled) or ODP (open drip proof) motors.
- Application customization with multiple factory-installed options.
Reliability Features
- Painted weather resistant cabinet with additional corrosion-resistant options available.
- Propeller type and dynamically balanced fans with direct-drive motors.
- Weatherproof and inherently protected motors operate at specified electrical characteristics.
- Low ambient kit.
- Condenser fan motor contactor.
- Manufactured in an ISO 9001:2000 certified factory.
Installation Features
- Horizontal or vertical airflow configuration.
- Mounting legs shipped with unit.
- Pre-piped and wired at factory.
- Low voltage 24-v control located in unit control box.
- Single point electrical connection.
Standard Warranty
- One year parts.
Factory-Installed Options
- Aluminum cabinet
- Control transformer
- Fused disconnect switch
- Motor options:
- TEAO
- ODP
- Low sound
- Motor control options:
- Fan cycling head pressure control
- Low ambient kit (includes fan cycling and speed head pressure control)
- Circuiting options:
- Single circuit
- Dual circuit
- Subcooling circuit
- Coil fin treatment options:
- Pre-coated
- E-coated
- Quick removal access panels
- Convenient access electrical control panel
Field-Installed Accessories
- Extended length mounting legs (for 09AZ012-016)
- Winter start
Physical Data
Model | Capacity
(Tons) |
Nominal airflow
(cfm) |
Weight
(lbs) |
Circuits | Fan HP |
---|---|---|---|---|---|
09AZ006 (H,V) | 5 | 3600 | 234 | 1 | 1/2 |
09AZ008 (H,V) | 7-1/2 | 7500 | 259 | 1 | 1/2 |
09AZ012 (H,V) | 10 | 15260 | 510 | 2 | 1 |
09AZ014 (H,V) | 12 | 15132 | 518 | 2 | 1 |
09AZ016 (H,V) | 15 | 14872 | 518 | 2 | 1 |
09AZ006 (L,W) | 5 | 6400 | 234 | 1 | 1/4 |
09AZ008 (L,W) | 7-1/2 | 5300 | 259 | 1 | 1/4 |
09AZ012 (L,W) | 10 | 11070 | 518 | 2 | 1/2 |
09AZ014 (L,W) | 12 | 10872 | 536 | 2 | 1/2 |
09AZ016 (L,W) | 15 | 10566 | 555 | 2 | 1/2 |
Physical Data (Continued)
Model | Refrigerant connections | Dimensions
(in) |
|||
---|---|---|---|---|---|
Liquid | Gas | Length | Depth | Height | |
09AZ006 (H,V) | 7/8 | 1-1/8 | 37-3/4 | 17-3/4 | 45-5/8 |
09AZ008 (H,V) | 1-1/8 | 1-3/8 | 69-3/4 | 17-3/4 | 45-5/8 |
09AZ012 (H,V) | 1-1/8 | 1-3/8 | 104-1/4 | 48 | 42-5/8 |
09AZ014 (H,V) | 1-3/8 | 1-5/8 | 104-1/4 | 48 | 42-5/8 |
09AZ016 (H,V) | 1-3/8 | 1-5/8 | 69-3/4 | 48 | 42-5/8 |
09AZ006 (L,W) | 7/8 | 1-1/8 | 69-3/4 | 17-3/4 | 45-5/8 |
09AZ008 (L,W) | 1-1/8 | 1-3/8 | 69-3/4 | 17-3/4 | 45-5/8 |
09AZ012 (L,W) | 1-3/8 | 1-5/8 | 104-1/4 | 48 | 42-3/4 |
09AZ014 (L,W) | 1-3/8 | 1-5/8 | 104-1/4 | 48 | 42-3/4 |
09AZ016 (L,W) | 1-3/8 | 1-5/8 | 104-1/4 | 48 | 42-3/4 |
Electrical Data
Model | Motor HP | 208/230-1-60 | 208/230-3-60 | ||
---|---|---|---|---|---|
MCA | MOCP | MCA | MOCP | ||
09AZ006 (H,V) | 1/2 | 15 | 15 | 15 | 20 |
09AZ008 (H,V) | 1/2 | 15 | 15 | 15 | 20 |
09AZ012 (H,V) | 1-1/2* | 15 | 15 | 15 | 20 |
09AZ014 (H,V) | 1-1/2* | 15 | 15 | 15 | 20 |
09AZ016 (H,V) | 1-1/2* | 15 | 15 | 15 | 20 |
09AZ006 (L,W) | 1/4 | 15 | 15 | 15 | 20 |
09AZ008 (L,W) | 1/4 | 15 | 15 | 15 | 20 |
09AZ012 (L,W) | 1-1/2 | N/A | N/A | 15 | 20 |
09AZ014 (L,W) | 1-1/2 | N/A | N/A | 15 | 20 |
09AZ016 (L,W) | 1-1/2 | N/A | N/A | 15 | 20 |
Electrical Data (Continued)
Model | Motor HP | 460-3-60 | 575-3-60 | ||
---|---|---|---|---|---|
MCA | MOCP | MCA | MOCP | ||
09AZ006 (H,V) | 1/2 | 15 | 15 | 15 | 15 |
09AZ008 (H,V) | 1/2 | 15 | 15 | 15 | 15 |
09AZ012 (H,V) | 1-1/2* | 15 | 15 | 15 | 15 |
09AZ014 (H,V) | 1-1/2* | 15 | 15 | 15 | 15 |
09AZ016 (H,V) | 1-1/2* | 15 | 15 | 15 | 15 |
09AZ006 (L,W) | 1/4 | 15 | 15 | 15 | 15 |
09AZ008 (L,W) | 1/4 | 15 | 15 | 15 | 15 |
09AZ012 (L,W) | 1-1/2 | 15 | 15 | N/A | N/A |
09AZ014 (L,W) | 1-1/2 | 15 | 15 | N/A | N/A |
09AZ016 (L,W) | 1-1/2 | 15 | 15 | N/A | N/A |
*1 HP motor on 208/230-1-60 (1140 rpm)
Performance Features
- High-static, direct-drive condenser fans.
- 09AZ unit specially configured for use with Carrier's 50XCR indoor self-contained unit.
- Condenser coil with integral subcooling circuit.
- Low sound motor.
- Copper tube with aluminum plate finned coils.
- E-coated coils available.
- One or two circuits, each with an integral subcooling circuit.
- TEAO (totally enclosed fan-cooled) or ODP (open drip proof) motors.
- Application customization with multiple factory-installed options.
Reliability Features
- Painted weather resistant cabinet with additional corrosion-resistant options available.
- Propeller type and dynamically balanced fans with direct-drive motors.
- Weatherproof and inherently protected motors operate at specified electrical characteristics.
- Low ambient kit.
- Condenser fan motor contactor.
- Manufactured in an ISO 9001:2000 certified factory.
Installation Features
- Horizontal or vertical airflow configuration.
- Mounting legs shipped with unit.
- Pre-piped and wired at factory.
- Low voltage 24-v control located in unit control box.
- Single point electrical connection.
Standard Warranty
- One year parts.
Factory-Installed Options
- Aluminum cabinet
- Control transformer
- Fused disconnect switch
- Motor options:
- TEAO
- ODP
- Low sound
- Motor control options:
- Fan cycling head pressure control
- Low ambient kit (includes fan cycling and speed head pressure control)
- Circuiting options:
- Single circuit
- Dual circuit
- Subcooling circuit
- Coil fin treatment options:
- Pre-coated
- E-coated
- Quick removal access panels
- Convenient access electrical control panel
Field-Installed Accessories
- Extended length mounting legs (for 09AZ012-016)
- Winter start
Physical Data
Model | Capacity
(Tons) |
Nominal airflow
(cfm) |
Weight
(lbs) |
Circuits | Fan HP |
---|---|---|---|---|---|
09AZ006 (H,V) | 5 | 3600 | 234 | 1 | 1/2 |
09AZ008 (H,V) | 7-1/2 | 7500 | 259 | 1 | 1/2 |
09AZ012 (H,V) | 10 | 15260 | 510 | 2 | 1 |
09AZ014 (H,V) | 12 | 15132 | 518 | 2 | 1 |
09AZ016 (H,V) | 15 | 14872 | 518 | 2 | 1 |
09AZ006 (L,W) | 5 | 6400 | 234 | 1 | 1/4 |
09AZ008 (L,W) | 7-1/2 | 5300 | 259 | 1 | 1/4 |
09AZ012 (L,W) | 10 | 11070 | 518 | 2 | 1/2 |
09AZ014 (L,W) | 12 | 10872 | 536 | 2 | 1/2 |
09AZ016 (L,W) | 15 | 10566 | 555 | 2 | 1/2 |
Physical Data (Continued)
Model | Refrigerant connections | Dimensions
(in) |
|||
---|---|---|---|---|---|
Liquid | Gas | Length | Depth | Height | |
09AZ006 (H,V) | 7/8 | 1-1/8 | 37-3/4 | 17-3/4 | 45-5/8 |
09AZ008 (H,V) | 1-1/8 | 1-3/8 | 69-3/4 | 17-3/4 | 45-5/8 |
09AZ012 (H,V) | 1-1/8 | 1-3/8 | 104-1/4 | 48 | 42-5/8 |
09AZ014 (H,V) | 1-3/8 | 1-5/8 | 104-1/4 | 48 | 42-5/8 |
09AZ016 (H,V) | 1-3/8 | 1-5/8 | 69-3/4 | 48 | 42-5/8 |
09AZ006 (L,W) | 7/8 | 1-1/8 | 69-3/4 | 17-3/4 | 45-5/8 |
09AZ008 (L,W) | 1-1/8 | 1-3/8 | 69-3/4 | 17-3/4 | 45-5/8 |
09AZ012 (L,W) | 1-3/8 | 1-5/8 | 104-1/4 | 48 | 42-3/4 |
09AZ014 (L,W) | 1-3/8 | 1-5/8 | 104-1/4 | 48 | 42-3/4 |
09AZ016 (L,W) | 1-3/8 | 1-5/8 | 104-1/4 | 48 | 42-3/4 |
Electrical Data
Model | Motor HP | 208/230-1-60 | 208/230-3-60 | ||
---|---|---|---|---|---|
MCA | MOCP | MCA | MOCP | ||
09AZ006 (H,V) | 1/2 | 15 | 15 | 15 | 20 |
09AZ008 (H,V) | 1/2 | 15 | 15 | 15 | 20 |
09AZ012 (H,V) | 1-1/2* | 15 | 15 | 15 | 20 |
09AZ014 (H,V) | 1-1/2* | 15 | 15 | 15 | 20 |
09AZ016 (H,V) | 1-1/2* | 15 | 15 | 15 | 20 |
09AZ006 (L,W) | 1/4 | 15 | 15 | 15 | 20 |
09AZ008 (L,W) | 1/4 | 15 | 15 | 15 | 20 |
09AZ012 (L,W) | 1-1/2 | N/A | N/A | 15 | 20 |
09AZ014 (L,W) | 1-1/2 | N/A | N/A | 15 | 20 |
09AZ016 (L,W) | 1-1/2 | N/A | N/A | 15 | 20 |
Electrical Data (Continued)
Model | Motor HP | 460-3-60 | 575-3-60 | ||
---|---|---|---|---|---|
MCA | MOCP | MCA | MOCP | ||
09AZ006 (H,V) | 1/2 | 15 | 15 | 15 | 15 |
09AZ008 (H,V) | 1/2 | 15 | 15 | 15 | 15 |
09AZ012 (H,V) | 1-1/2* | 15 | 15 | 15 | 15 |
09AZ014 (H,V) | 1-1/2* | 15 | 15 | 15 | 15 |
09AZ016 (H,V) | 1-1/2* | 15 | 15 | 15 | 15 |
09AZ006 (L,W) | 1/4 | 15 | 15 | 15 | 15 |
09AZ008 (L,W) | 1/4 | 15 | 15 | 15 | 15 |
09AZ012 (L,W) | 1-1/2 | 15 | 15 | N/A | N/A |
09AZ014 (L,W) | 1-1/2 | 15 | 15 | N/A | N/A |
09AZ016 (L,W) | 1-1/2 | 15 | 15 | N/A | N/A |
*1 HP motor on 208/230-1-60 (1140 rpm)
