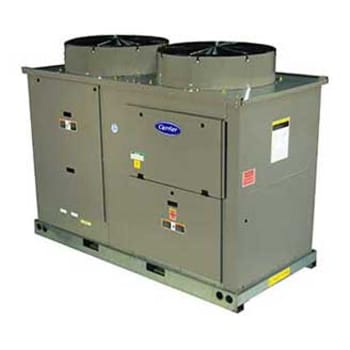

Gemini™
09DP
Air Cooled Condenser
with Puron® (R-410A) refrigerant
50/60 hZ
63 to 457 Nominal kW
18 to 130 Nominal Tons
These condensers feature one or two independent refrigerant circuits depending on the unit size. All units are factory wired, nitrogen charged, and easily connected by refrigerant lines and control wiring to the matching Carrier indoor unit. Various combinations of these extremely flexible condensers matched with the compressor /evaporator section provide customized packages to cover a wide range of cooling requirements. Multiple coil and cabinet construction options make these condensers an excellent choice for exposed deck or platform applications.
Performance Features
- High short circuit interrupt protection option.
- Motormaster® V low ambient temperature controller option.
- Single (09DPS) and multiple (09DPM) split combinations.
- AeroAcoustic low sound fan option.
Reliability Features
- MCHX coil with E-coating option.
- Galvanized steel cabinet, bonderized and finished with baked enamel (SS316 construction and coatings also available).
- Non-fused disconnect protection option.
- Security grilles/hail guards option.

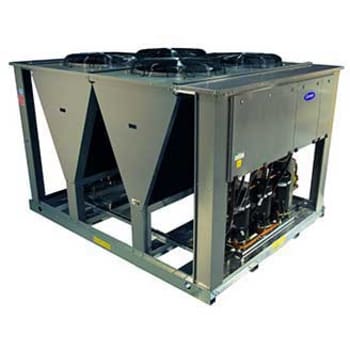

- V-coil design (065-130 models).
Installation Features
- Exposed deck installation.
- Small footprint.
- Single circuit manifold tubing kit with all 09DPM model.
- Fork truck lift pockets (018-060) and lifting holes in base rail construction (065-130 models).
Factory-Installed Options
- Condenser coil/low sound options
- E-coated MCHX
- Low sound fan(s)
- Ambient/capacity control/interrupt options
- High short circuit current rating interrupt
- Motormaster V low ambient control
- Electrical options
- Non-fused disconnect
- Packaging/security options
- Bottom skid
- Bottom skid, top crate, bag
- Security grilles/hail guards
- Zone II or Class I, Division 2 hazardous location modifications
Field-Installed Accessories
- Condenser coil/low sound options
- Low sound fan(s)
- Vibration isolation pads
- Ambient/capacity control/interrupt options
- Motormaster V low ambient control
- Packaging/security options
- Security grilles/hail guards
- Wind baffles
Physical Data
Model | Total heat of rejection
(Tons) |
Number of refrigerant circuits | Total operating weight
(lbs) |
---|---|---|---|
09DPS018 | 20.7 | 1 | 638 |
09DPS020 | 33.1 | 1 | 719 |
09DPS030 | 37.7 | 1 | 869 |
09DPM035 | 43.3 | 2 | 1126 |
09DPM040 | 54.9 | 2 | 1204 |
09DPM050 | 66.4 | 2 | 1282 |
09DPM060 | 75.3 | 2 | 1524 |
09DPM065 | 85.8 | 2 | 1622 |
09DPM075 | 107.6 | 2 | 1846 |
09DPM085 | 115.6 | 2 | 1933 |
09DPM095 | 129.4 | 2 | 1933 |
09DPM115 | 149.4 | 2 | 2447 |
09DPM130 | 172.0 | 2 | 2533 |
Total heat of rejection based on a 15°F subcooling and 30°F difference between saturated condensing temperature and the outdoor ambient.
Capacities & Weights
Model | Length (ft-in) | Height (ft-in) | Width (ft-in) |
---|---|---|---|
09DPS018 | 7-5 | 5-1 | 3-5 |
09DPS020 | 7-5 | 5-1 | 3-5 |
09DPS030 | 7-5 | 6-2 | 3-5 |
09DPM035 | 7-9 | 5-1 | 7-5 |
09DPM040 | 7-9 | 5-1 | 7-5 |
09DPM050 | 7-9 | 5-1 | 7-5 |
09DPM060 | 7-9 | 5-1 | 7-5 |
09DPM065 | 9-3 | 6-1 | 7-5 |
09DPM075 | 12-8 | 6-1 | 7-5 |
09DPM085 | 12-8 | 6-1 | 7-5 |
09DPM095 | 12-8 | 6-1 | 7-5 |
09DPM115 | 16-0 | 6-1 | 7-5 |
09DPM130 | 16-0 | 6-1 | 7-5 |
Electrical Data
Model | MCA 208/230 | MOCP | MCA 380 | MOCP | MCA 460 | MOCP |
---|---|---|---|---|---|---|
09DPS018 | 8.3 | 15 | 4.9 | 15 | 4.1 | 15 |
09DPS020 | 14.9 | 20 | 8.8 | 15 | 7.4 | 15 |
09DPS030 | 14.9 | 20 | 8.8 | 15 | 7.4 | 15 |
09DPM035 | 14.9 | 20 | 7.4 | 15 | 7.4 | 15 |
09DPM040 | 212.5 | 25 | 12.7 | 15 | 10.7 | 15 |
09DPM050 | 28.1 | 30 | 16.6 | 20 | 14.0 | 15 |
09DPM060 | 28.1 | 30 | 16.6 | 20 | 14.0 | 15 |
09DPM065 | 28.1 | 30 | 16.6 | 20 | 14.0 | 15 |
09DPM075 | 34.7 | 40 | 20.5 | 25 | 17.3 | 20 |
09DPM085 | 41.3 | 45 | 24.4 | 25 | 20.6 | 25 |
09DPM095 | 41.3 | 45 | 24.4 | 25 | 20.6 | 25 |
09DPM115 | 47.9 | 45 | 23.9 | 25 | 23.9 | 25 |
09DPM130 | 54.5 | 60 | 32.2 | 35 | 27.2 | 30 |
Electrical Data (Continued)
Model | MCA 575 | MOCP |
---|---|---|
09DPS018 | 3.3 | 15 |
09DPS020 | 5.9 | 15 |
09DPS030 | 5.9 | 15 |
09DPM035 | 5.9 | 15 |
09DPM040 | 8.5 | 15 |
09DPM050 | 11.0 | 15 |
09DPM060 | 11.1 | 15 |
09DPM065 | 11.1 | 15 |
09DPM075 | 13.7 | 15 |
09DPM085 | 16.3 | 15 |
09DPM095 | 16.3 | 15 |
09DPM115 | 18.9 | 20 |
09DPM130 | 21.5 | 25 |
MCA = Minimum Circuit Amps
MOCP = Maximum Overcurrent Protection
