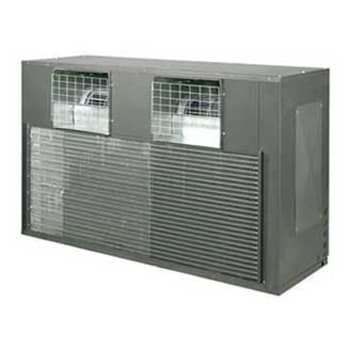

Omnizone™ 09XC
Omnizone™
09XC
Remote Air Cooled Condenser
Indoor Installation, Constant Volume Unit
with Puron® (R-410A) refrigerant
18 to 70 Nominal kW
5 to 20 Nominal Tons
The 09XC indoor remote air-cooled condenser units are designed for vertical installation with rear return air and horizontal air discharge. These units provide a practical and economical approach to comfort conditioning requirements in commercial re-fit or new build applications.
Performance Features
- Capacities of 7½, 10, and 15tons will match with 5 to 15 ton 50XCR remote units.
- ASHRAE 90.1 compliant.
- Adjustable belt-drive centrifugal condenser fan for high-static capability.
- Fan controlled by 24-volt control system.
- Designed for R-410A refrigerant.
- Fully insulated unit.
Reliability Features
- Aluminum fin/copper tube coils.
- Painted weather-resistant cabinet meets 500-hour salt spray requirements.
- Adjustable belt-drive fan motors.
- Manufactured in an ISO 9000 certified factory.
Installation Features
- Shipped with nitrogen charge.
- Flanges provided on condenser inlet and outlet.
- Single point electrical connection.
Maintenance Features
- Ducted or free return connections.
- All service can be done through unit front or side panels.
- Permanently lubricated TEFC (totally enclosed fan cooled) condenser fan motors.
Standard Limited Warranty
- One year parts.
Field-Installed Accessories
- Thermostats and controls.
AHRI Capacity Ratings*
| Size | Nominal Capacity (Tons) | Condenser Airflow (Cfm) | Heat Rejection (Btuh) | Total Power (kW) |
|---|---|---|---|---|
| 08 | 7.5 | 4500 | 126800 | 1.10 |
| 12 | 10 | 6000 | 169200 | 1.86 |
| 16 | 15 | 7500 | 253600 | 2.19 |
AHRI = Air Conditioning, Heating and Refrigeration Institute
Weights & Dimensions
| Size | Operating weight
(lb) |
Dimensions
(in) |
||
|---|---|---|---|---|
| Width | Height | Depth | ||
| 08 | 527 | 53.1 | 46.6 | 30.0 |
| 12 | 732 | 68.0 | 54.5 | 31.2 |
| 16 | 956 | 88.0 | 54.5 | 31.2 |
Performance Features
- Capacities of 7½, 10, and 15tons will match with 5 to 15 ton 50XCR remote units.
- ASHRAE 90.1 compliant.
- Adjustable belt-drive centrifugal condenser fan for high-static capability.
- Fan controlled by 24-volt control system.
- Designed for R-410A refrigerant.
- Fully insulated unit.
Reliability Features
- Aluminum fin/copper tube coils.
- Painted weather-resistant cabinet meets 500-hour salt spray requirements.
- Adjustable belt-drive fan motors.
- Manufactured in an ISO 9000 certified factory.
Installation Features
- Shipped with nitrogen charge.
- Flanges provided on condenser inlet and outlet.
- Single point electrical connection.
Maintenance Features
- Ducted or free return connections.
- All service can be done through unit front or side panels.
- Permanently lubricated TEFC (totally enclosed fan cooled) condenser fan motors.
Standard Limited Warranty
- One year parts.
Field-Installed Accessories
- Thermostats and controls.
AHRI Capacity Ratings*
| Size | Nominal Capacity (Tons) | Condenser Airflow (Cfm) | Heat Rejection (Btuh) | Total Power (kW) |
|---|---|---|---|---|
| 08 | 7.5 | 4500 | 126800 | 1.10 |
| 12 | 10 | 6000 | 169200 | 1.86 |
| 16 | 15 | 7500 | 253600 | 2.19 |
AHRI = Air Conditioning, Heating and Refrigeration Institute
Weights & Dimensions
| Size | Operating weight
(lb) |
Dimensions
(in) |
||
|---|---|---|---|---|
| Width | Height | Depth | ||
| 08 | 527 | 53.1 | 46.6 | 30.0 |
| 12 | 732 | 68.0 | 54.5 | 31.2 |
| 16 | 956 | 88.0 | 54.5 | 31.2 |
