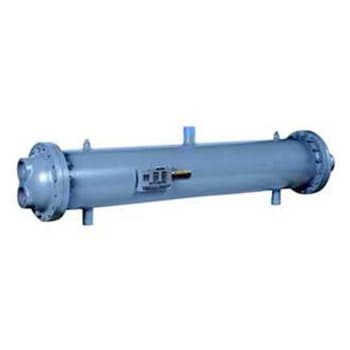

90C02

Water-Cooled Condenser

18 to 1,160 Nominal kW
5 to 330 Nominal Tons

  • Designed for high efficiency applications.
  • Shell and tube.
  • Can be custom-matched with compressors charged with your choice of refrigerants R-134a, R-22, or R-507/R-404A.
  • Can serve as refrigerant reservoirs when a system is not operating, eliminating the need for separate receivers.

90C02-1182 & 9212 MHX Seawater Condensers are available in standard designs for sea water duty. Standard MHX sea water condensers are available from 5 to 330 nominal tons of duty and are manufactured in large quantities to provide the lowest cost per ton available.

Features

  • Shells: Steel pipe to ASME specification. Shells are shot blasted and cleaned prior to assembly.
  • Tubes: 90/10 cupro-nickel high performance enhanced design roller expanded into grooved tube sheets.
  • Tube sheet: 90/10 cupro-nickel to ASME specifications. Precision machined for excellent sealing.
  • Tube supports: Quality steel manufactured to close tolerance to minimize vibration.
  • Heads: Cast bronze to withstand the corrosive effects of sea water duty. Single pass 14” & 16” heads are fabricated from steel and epoxy coated.
  • Connections: All water side connections are FPT except 12” 1-pass, 14” and 16”models which have flanges. Refrigerant connections are steel and bored to ODS of copper tubing. Relief, vent and drain connections are provided.  Dual liquid refrigerant outlets are included to maintain a liquid seal under pitch and roll conditions.
  • Codes: The refrigerant side is constructed to the latest edition of the ASME Section VIII Div 1 code and stamped. Refrigerant side dual-rated for 450 psi at 150°F or 305 psi at 250°F. Water side design pressure is 150°F at 150 psi. Shell side is tested at 1.1 times and tube side is tested is 1.3 times the design pressure.
  • Finish: Exterior surfaces are cleaned and painted with an enamel primer.
  • Warranty: 1 Year parts only

Part Numbers

Nominal Tons 90C02- Part Number
R-22, R-404A, R-134a R-407C R-410A
5 1182-31 1182-57 9212-31
7.5 1182-32 1182-58 9212-32
15 1182-33 1182-59 9212-33
20 1182-34 1182-60 9212-34
25 1182-35 1182-61 9212-35
30 1182-36 1182-62 9212-36
35 1182-37 1182-63 9212-37
45 1182-38 1182-64 9212-38
50 1182-44 1182-70 9212-44
65 1182-40 1182-66 9212-40
70 1182-42 1182-68 9212-42
85 1182-41 1182-67 9212-41
130 1182-43 1182-69 9212-43
60 1182-39 1182-65 9212-39
90 1182-45 1182-71 9212-45
110 1182-51 1182-77 9212-51
130 1182-47 1182-73 9212-47
140 1182-49 1182-75 9212-49
150 1182-48 1182-74 9212-48
200 1182-50 1182-76 9212-50
220 1182-52 1182-78 9212-52
230 1182-53 1182-79 9212-53
275 1182-46 1182-72 9212-46
330 1182-54 1182-80 9212-54

Weights

90C02 - Part number Weight
(lbs)
1182-31,57 / 9212-31 100
1182-32,58 / 9212-32 107
1182-33,59 / 9212-33 142
1182-34,60 / 9212-34 175
1182-35,61 / 9212-35 210
1182-36,62 / 9212-36 244
1182-37,63 / 9212-37 310
1182-38,64 / 9212-38 357
1182-39,65 / 9212-39 455
1182-44,70 / 9212-44 480
1182-40,66 / 9212-40 550
1182-41,67 / 9212-41 695
1182-42,68 / 9212-42 670
1182-45,71 / 9212-45 765
1182-51,77 / 9212-51 990
1182-43,69 / 9212-43 960
1182-48,74 / 9212-48 1155
1182-47,73 / 9212-47 955
1182-49,75 / 9212-49 1100
1182-50,76 / 9212-50 1400
1182-52,78 / 9212-52 1740
1182-53,79 / 9212-53 1750
1182-46,72 / 9212-46 1780
1182-54,80 / 9212-54 2095

Dimensions

90C02 - Part number A
Dia		 B
Length		 C D
1182-31,57 / 9212-31 6-5/8 27-13/16 2-1/32 5-7/8
1182-32,58 / 9212-32 6-5/8 27-13/16 2-1/32 5-7/8
1182-33,59 / 9212-33 6-5/8 39-13/16 2-1/32 5-7/8
1182-34,60 / 9212-34 6-5/8 51-13/16 2-1/32 5-7/8
1182-35,61 / 9212-35 6-5/8 63-13/16 2-1/32 5-7/8
1182-36,62 / 9212-36 6-5/8 75-13/16 2-1/32 5-7/8
1182-37,63 / 9212-37 8-5/8 66 3-1/8 7-7/8
1182-38,64 / 9212-38 8-5/8 78 3-1/8 7-7/8
1182-39,65 / 9212-39 8-5/8 102 3-1/8 7-7/8
1182-44,70 / 9212-44 10-3/4 69 4-11/16 7-7/8
1182-40,66 / 9212-40 10-3/4 81 4-11/16 7-7/8
1182-41,67 / 9212-41 10-3/4 105-1/8 4-11/16 7-7/8
1182-42,68 / 9212-42 12-3/4 69 4-5/8 7-7/8
1182-45,71 / 9212-45 12-3/4 81 4-5/8 7-7/8
1182-51,77 / 9212-51 12-3/4 108 6-1/8 7-7/8
1182-43,69 / 9212-43 12-3/4 105 4-5/8 7-7/8
1182-48,74 / 9212-48 12-3/4 132 6-1/8 7-7/8
1182-47,73 / 9212-47 14 69 5-1/8 7-7/8
1182-49,75 / 9212-49 14 81 5-1/8 7-7/8
1182-50,76 / 9212-50 14 105 5-1/8 7-7/8
1182-52,78 / 9212-52 14 139-3/8 9-11/16 7-7/8
1182-53,79 / 9212-53 16 120-1/2 12-3/8 7-7/8
1182-46,72 / 9212-46 16 105 5-1/8 7-7/8
1182-54,80 / 9212-54 16 144-1/2 12-3/8 7-7/8

Dimensions (Continued)

90C02 - Part number E F G
FPT		 H
1182-31,57 / 9212-31 12 5-7/8 1/2 7-1/2
1182-32,58 / 9212-32 12 5-7/8 1/2 7-1/2
1182-33,59 / 9212-33 24 5-7/8 1/2 7-1/2
1182-34,60 / 9212-34 36 5-7/8 1/2 7-1/2
1182-35,61 / 9212-35 48 5-7/8 1/2 7-1/2
1182-36,62 / 9212-36 60 5-7/8 1/2 7-1/2
1182-37,63 / 9212-37 44 7-7/8 1/2 9-11/16
1182-38,64 / 9212-38 56 7-7/8 1/2 9-11/16
1182-39,65 / 9212-39 80 7-7/8 1/2 9-11/16
1182-44,70 / 9212-44 44 7-7/8 1/2 13-3/4
1182-40,66 / 9212-40 56 7-7/8 1/2 13-3/4
1182-41,67 / 9212-41 80 7-7/8 1/2 13-3/4
1182-42,68 / 9212-42 44 7-7/8 1/2 15-3/4
1182-45,71 / 9212-45 56 7-7/8 1/2 15-3/4
1182-51,77 / 9212-51 80 7-7/8 1/2 15-3/4
1182-43,69 / 9212-43 80 7-7/8 1/2 15-3/4
1182-48,74 / 9212-48 104 7-7/8 1/2 15-3/4
1182-47,73 / 9212-47 44 7-7/8 1/2 17-7/8
1182-49,75 / 9212-49 56 7-7/8 1/2 17-7/8
1182-50,76 / 9212-50 80 7-7/8 1/2 17-7/8
1182-52,78 / 9212-52 104 7-7/8 1/2 17-7/8
1182-53,79 / 9212-53 80 7-7/8 1/2 19-7/8
1182-46,72 / 9212-46 80 7-7/8 1/2 19-7/8
1182-54,80 / 9212-54 104 7-7/8 1/2 19-7/8

Dimensions (Continued)

90C02 - Part number J L M
FPT		 N
1182-31,57 / 9212-31 1-7/16 6-5/16 1/2 6-5/16
1182-32,58 / 9212-32 1-7/16 6-5/16 1/2 6-5/16
1182-33,59 / 9212-33 1-7/16 6-5/16 1/2 6-5/16
1182-34,60 / 9212-34 1-7/16 6-5/16 1/2 6-5/16
1182-35,61 / 9212-35 1-1/2 6-5/16 1/2 6-5/16
1182-36,62 / 9212-36 1-1/2 6-5/16 1/2 6-5/16
1182-37,63 / 9212-37 1-7/8 7-5/16 1/2 7-5/16
1182-38,64 / 9212-38 1-7/8 7-5/16 1/2 7-5/16
1182-39,65 / 9212-39 1-7/8 7-5/16 1/2 7-5/16
1182-44,70 / 9212-44 2-1/4 8-3/8 3/4 8-3/8
1182-40,66 / 9212-40 2-1/4 8-3/8 3/4 8-3/8
1182-41,67 / 9212-41 2-1/4 8-3/8 3/4 8-3/8
1182-42,68 / 9212-42 2-5/8 9-3/8 1 9-3/8
1182-45,71 / 9212-45 2-5/8 9-3/8 1 9-3/8
1182-51,77 / 9212-51 - 9-3/8 1 9-3/8
1182-43,69 / 9212-43 2-5/8 9-3/8 1 9-3/8
1182-48,74 / 9212-48 - 9-3/8 1 9-3/8
1182-47,73 / 9212-47 4-1/2 10 1 10
1182-49,75 / 9212-49 4-1/2 10 1 10
1182-50,76 / 9212-50 4-1/2 10 1 10
1182-52,78 / 9212-52 - 10 1 10
1182-53,79 / 9212-53 - 11 1 11
1182-46,72 / 9212-46 5 11 1 11
1182-54,80 / 9212-54 - 11 1 11

Dimensions (Continued)

90C02 - Part number P
ODF		 R
ODF		 S
NPT
1182-31,57 / 9212-31 1-3/8 5/8 1-1/2
1182-32,58 / 9212-32 1-3/8 5/8 1-1/2
1182-33,59 / 9212-33 1-3/8 7/8 1-1/2
1182-34,60 / 9212-34 1-3/8 7/8 1-1/2
1182-35,61 / 9212-35 1-5/8 7/8 2
1182-36,62 / 9212-36 1-5/8 1-1/8 2
1182-37,63 / 9212-37 2-1/8 1-1/8 2-1/2
1182-38,64 / 9212-38 2-1/8 1-3/8 2-1/2
1182-39,65 / 9212-39 2-1/8 1-3/8 2-1/2
1182-44,70 / 9212-44 2-1/8 1-5/8 3
1182-40,66 / 9212-40 2-5/8 1-5/8 3
1182-41,67 / 9212-41 2-5/8 1-5/8 3
1182-42,68 / 9212-42 2-5/8 1-5/8 3
1182-45,71 / 9212-45 2-5/8 1-5/8 3
1182-51,77 / 9212-51 3-1/8 2-1/8 6 $
1182-43,69 / 9212-43 3-1/8 2-1/8 3
1182-48,74 / 9212-48 3-1/8 2-1/8 6 $
1182-47,73 / 9212-47 3-1/8 1-5/8 4 $
1182-49,75 / 9212-49 3-1/8 2-1/8 4 $
1182-50,76 / 9212-50 3-1/8 2-1/8 4 $
1182-52,78 / 9212-52 3-5/8 2-1/8 6 §
1182-53,79 / 9212-53 3-5/8 2-1/8 8 §
1182-46,72 / 9212-46 5-1/8 3-1/8 5 $
1182-54,80 / 9212-54 5-1/8 3-1/8 8 §

Features

  • Shells: Steel pipe to ASME specification. Shells are shot blasted and cleaned prior to assembly.
  • Tubes: 90/10 cupro-nickel high performance enhanced design roller expanded into grooved tube sheets.
  • Tube sheet: 90/10 cupro-nickel to ASME specifications. Precision machined for excellent sealing.
  • Tube supports: Quality steel manufactured to close tolerance to minimize vibration.
  • Heads: Cast bronze to withstand the corrosive effects of sea water duty. Single pass 14” & 16” heads are fabricated from steel and epoxy coated.
  • Connections: All water side connections are FPT except 12” 1-pass, 14” and 16”models which have flanges. Refrigerant connections are steel and bored to ODS of copper tubing. Relief, vent and drain connections are provided.  Dual liquid refrigerant outlets are included to maintain a liquid seal under pitch and roll conditions.
  • Codes: The refrigerant side is constructed to the latest edition of the ASME Section VIII Div 1 code and stamped. Refrigerant side dual-rated for 450 psi at 150°F or 305 psi at 250°F. Water side design pressure is 150°F at 150 psi. Shell side is tested at 1.1 times and tube side is tested is 1.3 times the design pressure.
  • Finish: Exterior surfaces are cleaned and painted with an enamel primer.
  • Warranty: 1 Year parts only

Part Numbers

Nominal Tons 90C02- Part Number
R-22, R-404A, R-134a R-407C R-410A
5 1182-31 1182-57 9212-31
7.5 1182-32 1182-58 9212-32
15 1182-33 1182-59 9212-33
20 1182-34 1182-60 9212-34
25 1182-35 1182-61 9212-35
30 1182-36 1182-62 9212-36
35 1182-37 1182-63 9212-37
45 1182-38 1182-64 9212-38
50 1182-44 1182-70 9212-44
65 1182-40 1182-66 9212-40
70 1182-42 1182-68 9212-42
85 1182-41 1182-67 9212-41
130 1182-43 1182-69 9212-43
60 1182-39 1182-65 9212-39
90 1182-45 1182-71 9212-45
110 1182-51 1182-77 9212-51
130 1182-47 1182-73 9212-47
140 1182-49 1182-75 9212-49
150 1182-48 1182-74 9212-48
200 1182-50 1182-76 9212-50
220 1182-52 1182-78 9212-52
230 1182-53 1182-79 9212-53
275 1182-46 1182-72 9212-46
330 1182-54 1182-80 9212-54

Weights

90C02 - Part number Weight
(lbs)
1182-31,57 / 9212-31 100
1182-32,58 / 9212-32 107
1182-33,59 / 9212-33 142
1182-34,60 / 9212-34 175
1182-35,61 / 9212-35 210
1182-36,62 / 9212-36 244
1182-37,63 / 9212-37 310
1182-38,64 / 9212-38 357
1182-39,65 / 9212-39 455
1182-44,70 / 9212-44 480
1182-40,66 / 9212-40 550
1182-41,67 / 9212-41 695
1182-42,68 / 9212-42 670
1182-45,71 / 9212-45 765
1182-51,77 / 9212-51 990
1182-43,69 / 9212-43 960
1182-48,74 / 9212-48 1155
1182-47,73 / 9212-47 955
1182-49,75 / 9212-49 1100
1182-50,76 / 9212-50 1400
1182-52,78 / 9212-52 1740
1182-53,79 / 9212-53 1750
1182-46,72 / 9212-46 1780
1182-54,80 / 9212-54 2095

Dimensions

90C02 - Part number A
Dia		 B
Length		 C D
1182-31,57 / 9212-31 6-5/8 27-13/16 2-1/32 5-7/8
1182-32,58 / 9212-32 6-5/8 27-13/16 2-1/32 5-7/8
1182-33,59 / 9212-33 6-5/8 39-13/16 2-1/32 5-7/8
1182-34,60 / 9212-34 6-5/8 51-13/16 2-1/32 5-7/8
1182-35,61 / 9212-35 6-5/8 63-13/16 2-1/32 5-7/8
1182-36,62 / 9212-36 6-5/8 75-13/16 2-1/32 5-7/8
1182-37,63 / 9212-37 8-5/8 66 3-1/8 7-7/8
1182-38,64 / 9212-38 8-5/8 78 3-1/8 7-7/8
1182-39,65 / 9212-39 8-5/8 102 3-1/8 7-7/8
1182-44,70 / 9212-44 10-3/4 69 4-11/16 7-7/8
1182-40,66 / 9212-40 10-3/4 81 4-11/16 7-7/8
1182-41,67 / 9212-41 10-3/4 105-1/8 4-11/16 7-7/8
1182-42,68 / 9212-42 12-3/4 69 4-5/8 7-7/8
1182-45,71 / 9212-45 12-3/4 81 4-5/8 7-7/8
1182-51,77 / 9212-51 12-3/4 108 6-1/8 7-7/8
1182-43,69 / 9212-43 12-3/4 105 4-5/8 7-7/8
1182-48,74 / 9212-48 12-3/4 132 6-1/8 7-7/8
1182-47,73 / 9212-47 14 69 5-1/8 7-7/8
1182-49,75 / 9212-49 14 81 5-1/8 7-7/8
1182-50,76 / 9212-50 14 105 5-1/8 7-7/8
1182-52,78 / 9212-52 14 139-3/8 9-11/16 7-7/8
1182-53,79 / 9212-53 16 120-1/2 12-3/8 7-7/8
1182-46,72 / 9212-46 16 105 5-1/8 7-7/8
1182-54,80 / 9212-54 16 144-1/2 12-3/8 7-7/8

Dimensions (Continued)

90C02 - Part number E F G
FPT		 H
1182-31,57 / 9212-31 12 5-7/8 1/2 7-1/2
1182-32,58 / 9212-32 12 5-7/8 1/2 7-1/2
1182-33,59 / 9212-33 24 5-7/8 1/2 7-1/2
1182-34,60 / 9212-34 36 5-7/8 1/2 7-1/2
1182-35,61 / 9212-35 48 5-7/8 1/2 7-1/2
1182-36,62 / 9212-36 60 5-7/8 1/2 7-1/2
1182-37,63 / 9212-37 44 7-7/8 1/2 9-11/16
1182-38,64 / 9212-38 56 7-7/8 1/2 9-11/16
1182-39,65 / 9212-39 80 7-7/8 1/2 9-11/16
1182-44,70 / 9212-44 44 7-7/8 1/2 13-3/4
1182-40,66 / 9212-40 56 7-7/8 1/2 13-3/4
1182-41,67 / 9212-41 80 7-7/8 1/2 13-3/4
1182-42,68 / 9212-42 44 7-7/8 1/2 15-3/4
1182-45,71 / 9212-45 56 7-7/8 1/2 15-3/4
1182-51,77 / 9212-51 80 7-7/8 1/2 15-3/4
1182-43,69 / 9212-43 80 7-7/8 1/2 15-3/4
1182-48,74 / 9212-48 104 7-7/8 1/2 15-3/4
1182-47,73 / 9212-47 44 7-7/8 1/2 17-7/8
1182-49,75 / 9212-49 56 7-7/8 1/2 17-7/8
1182-50,76 / 9212-50 80 7-7/8 1/2 17-7/8
1182-52,78 / 9212-52 104 7-7/8 1/2 17-7/8
1182-53,79 / 9212-53 80 7-7/8 1/2 19-7/8
1182-46,72 / 9212-46 80 7-7/8 1/2 19-7/8
1182-54,80 / 9212-54 104 7-7/8 1/2 19-7/8

Dimensions (Continued)

90C02 - Part number J L M
FPT		 N
1182-31,57 / 9212-31 1-7/16 6-5/16 1/2 6-5/16
1182-32,58 / 9212-32 1-7/16 6-5/16 1/2 6-5/16
1182-33,59 / 9212-33 1-7/16 6-5/16 1/2 6-5/16
1182-34,60 / 9212-34 1-7/16 6-5/16 1/2 6-5/16
1182-35,61 / 9212-35 1-1/2 6-5/16 1/2 6-5/16
1182-36,62 / 9212-36 1-1/2 6-5/16 1/2 6-5/16
1182-37,63 / 9212-37 1-7/8 7-5/16 1/2 7-5/16
1182-38,64 / 9212-38 1-7/8 7-5/16 1/2 7-5/16
1182-39,65 / 9212-39 1-7/8 7-5/16 1/2 7-5/16
1182-44,70 / 9212-44 2-1/4 8-3/8 3/4 8-3/8
1182-40,66 / 9212-40 2-1/4 8-3/8 3/4 8-3/8
1182-41,67 / 9212-41 2-1/4 8-3/8 3/4 8-3/8
1182-42,68 / 9212-42 2-5/8 9-3/8 1 9-3/8
1182-45,71 / 9212-45 2-5/8 9-3/8 1 9-3/8
1182-51,77 / 9212-51 - 9-3/8 1 9-3/8
1182-43,69 / 9212-43 2-5/8 9-3/8 1 9-3/8
1182-48,74 / 9212-48 - 9-3/8 1 9-3/8
1182-47,73 / 9212-47 4-1/2 10 1 10
1182-49,75 / 9212-49 4-1/2 10 1 10
1182-50,76 / 9212-50 4-1/2 10 1 10
1182-52,78 / 9212-52 - 10 1 10
1182-53,79 / 9212-53 - 11 1 11
1182-46,72 / 9212-46 5 11 1 11
1182-54,80 / 9212-54 - 11 1 11

Dimensions (Continued)

90C02 - Part number P
ODF		 R
ODF		 S
NPT
1182-31,57 / 9212-31 1-3/8 5/8 1-1/2
1182-32,58 / 9212-32 1-3/8 5/8 1-1/2
1182-33,59 / 9212-33 1-3/8 7/8 1-1/2
1182-34,60 / 9212-34 1-3/8 7/8 1-1/2
1182-35,61 / 9212-35 1-5/8 7/8 2
1182-36,62 / 9212-36 1-5/8 1-1/8 2
1182-37,63 / 9212-37 2-1/8 1-1/8 2-1/2
1182-38,64 / 9212-38 2-1/8 1-3/8 2-1/2
1182-39,65 / 9212-39 2-1/8 1-3/8 2-1/2
1182-44,70 / 9212-44 2-1/8 1-5/8 3
1182-40,66 / 9212-40 2-5/8 1-5/8 3
1182-41,67 / 9212-41 2-5/8 1-5/8 3
1182-42,68 / 9212-42 2-5/8 1-5/8 3
1182-45,71 / 9212-45 2-5/8 1-5/8 3
1182-51,77 / 9212-51 3-1/8 2-1/8 6 $
1182-43,69 / 9212-43 3-1/8 2-1/8 3
1182-48,74 / 9212-48 3-1/8 2-1/8 6 $
1182-47,73 / 9212-47 3-1/8 1-5/8 4 $
1182-49,75 / 9212-49 3-1/8 2-1/8 4 $
1182-50,76 / 9212-50 3-1/8 2-1/8 4 $
1182-52,78 / 9212-52 3-5/8 2-1/8 6 §
1182-53,79 / 9212-53 3-5/8 2-1/8 8 §
1182-46,72 / 9212-46 5-1/8 3-1/8 5 $
1182-54,80 / 9212-54 5-1/8 3-1/8 8 §
SEE ALSO
carrier-90Y-condensing-unit
Sea Horse
90Y
WORKS WITH
carlyle-compressor-5h
5H
carlyle-compressor-06d
06D
carlyle-compressor-06e
06E
carlyle-compressor-06t
06T
CONTROLS
carrier-33CS2PP2S-03-non-communicating-programmable-thermostat
Edge® Pro
33CS2PP2S-03
carrier-33CS2PPRH-03-non-communicating-programmable-thermostat
Edge® Pro
33CS2PPRH-03
carrier-33CSCNACHP-01-non-programmable-thermostat
Comfort™ Pro
33CSCNACHP-01
carrier-33CSCPACHP-01-non-communicating-programmable-thermostat
Comfort™ Pro
33CSCPACHP-01
