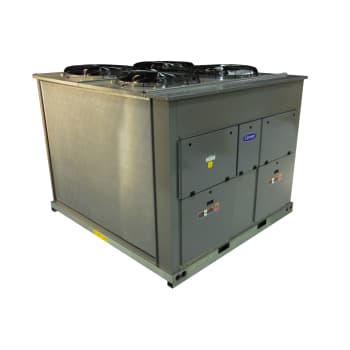

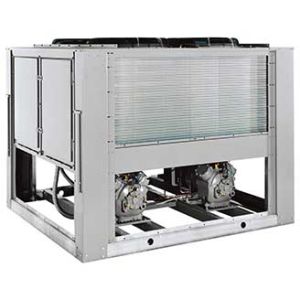

Gemini™
38AP
Split-System
Air-Cooled Condensing Units
with Puron® (R-410A) refrigerant
50/60 Hz
88 to 457 Nominal kW
25 to 130 Nominal Tons
38APS - Single-circuit, 25 to 65 Nominal Tons
38APD - Dual-circuit, 25 to 130 Nominal Tons
Gemini™ Select 38APS Series outdoor condensing units feature a single circuit factory-installed option on 25 to 65 ton units. Gemini™ Select 38APD Series outdoor condensing units feature two independent refrigerant circuits on all sizes. All units are factory-wired and easily connected by refrigerant lines and control wiring to the matching Carrier indoor air-handling units. Various combinations of condensing units with air handlers provide packages to cover a wide range of shipboard cooling solutions. Multiple coil and cabinet construction options make these condensing units an excellent choice for exposed deck or platform applications.
Performance Features
- Condensing unit EERs up to 11.5 and IPLV up to 16.2 (38APD).
- Condensing unit EERs up to 12.4 and IPLV up to 18.4 (38APS).
- Unit performance rated in accordance with AHRI Standard 365.
- Full capacity range dual-circuit units (25-130 sizes).
- Hermetic scroll compressors with option for Digital compressor for superior part-load performance.
- Novation® microchannel heat exchanger (MCHX) condenser coil with E-coat.
- Compressor with neoprene isolators and oil heater(s).
Reliability Features
- Galvanized steel cabinet, bonderized and finished with baked enamel (SS316 construction and coatings also available).
- High and low-pressure protection.
- Compressor overload protection.
- Loss of charge and low suction superheat protection.
- Self contained 24-v CCN (Carrier Comfort Network®) controls including transformer.
- Low ambient head pressure control.
Maintenance Features
- Oil-level sight glass, filter driers, liquid line solenoid valve.
- Access panel accessibility to compressor and control box.
- Compressor suction service valves and liquid shutoff valves.
Installation Features
- Shipped with nitrogen holding charge.
- Exposed deck or platform installation.
- 24V control circuit transformer permits quick, easy wiring of thermostats.
Standard Warranty
- One-year parts only compressor.
- One year parts only on all other parts.
- Extended warranty packages available.
Factory-Installed Options
- Special Cu/Cu coils, with or without coating, are available.
- Single-circuit (38APS sizes 025-065).
- Non-fused disconnect.
- Low sound fans.
- Long line length check valves.
- High SCCR (38APD).
- High interrupt (38APS).
- Motormaster® V low ambient control.
- ComfortLink controls with scrolling marquee display module.
- Energy management module.
- Digital compressor.
- SS316L cabinet construction.
- Can be built for hazardous locations per ATEX, IECex, or NEC.
Field-Installed Accessories
- Long line length check valves.
- Energy management module.
- Navigator display.
- TouchPilot display.
- BACnet® translator control.
- LON translator control.
38APS (Single Circuit) Capacity Ratings 60Hz
Size | Capacity nominal
(Tons) |
Capacity nominal
(kW) |
EER | IPLV |
---|---|---|---|---|
025 | 24.0 | 84.3 | 11.0 | 14.4 |
027 | 26.6 | 93.4 | 10.9 | 14.7 |
030 | 31.1 | 109.2 | 10.8 | 14.3 |
040 | 39.8 | 139.8 | 11.5 | 16.2 |
050 | 48.1 | 168.9 | 10.8 | 15.0 |
065 | 59.6 | 209.6 | 11.1 | 15.1 |
38APS (Single Circuit) Capacity Ratings 50Hz
Size | Capacity nominal
(Tons) |
Capacity nominal
(kW) |
EER | IPLV |
---|---|---|---|---|
025 | 20.0 | 70.3 | 11.6 | 16.4 |
027 | 22.2 | 78.1 | 11.7 | 16.6 |
030 | 26.0 | 91.4 | 11.5 | 15.9 |
040 | 32.8 | 115.3 | 12.4 | 18.4 |
050 | 39.5 | 138.9 | 11.8 | 16.7 |
065 | 49.4 | 173.7 | 11.5 | 17.0 |
LEGEND
EER = Energy efficiency ratio
IPLV = Integrated part load value
NOTES
1. Unit performance is rated in accordance with ARI (Air Conditioning and Refrigeration Institute) Standard 365.
2. Ratings are based on 45°F (7.2°C) saturated suction temperature and 95°F (35°C) outside-air temperature, and include suction line losses.
38APS (Single Circuit) Weights and Dimensions
Size | Operating weight
(lbs) |
Dimensions
(in) |
||
---|---|---|---|---|
Length | Width | Height | ||
025 | 1077 | 88.24 | 40.34 | 61.0 |
027 | 1240 | 88.24 | 40.34 | 73.1 |
030 | 1246 | 88.24 | 40.34 | 73.1 |
040 | 1968 | 92.13 | 88.24 | 73.0 |
050 | 1977 | 92.13 | 88.24 | 73.0 |
065 | 2561 | 92.13 | 88.24 | 73.0 |
38APD (Dual Circuit) Capacity Ratings 60Hz
Size | Capacity nominal
(Tons) |
Capacity nominal
(kW) |
EER | IPLV |
---|---|---|---|---|
025 | 24.0 | 84.3 | 11.0 | 13.1 |
027 | 26.6 | 93.4 | 10.9 | 14.0 |
030 | 31.1 | 109.2 | 10.8 | 12.8 |
040 | 39.2 | 137.7 | 11.5 | 15.3 |
050 | 50.0 | 175.6 | 11.1 | 14.9 |
060 | 58.3 | 204.7 | 11.0 | 14.5 |
070 | 67.3 | 236.4 | 11.0 | 15.7 |
080 | 78.0 | 273.9 | 11.1 | 15.6 |
090 | 87.4 | 306.9 | 11.3 | 15.3 |
100 | 96.0 | 337.2 | 11.1 | 15.0 |
115 | 110.4 | 388.3 | 11.1 | 15.2 |
130 | 125.1 | 442.3 | 11.1 | 15.2 |
38APD (Dual Circuit) Capacity Ratings 50Hz
Size | Capacity nominal
(Tons) |
Capacity nominal
(kW) |
EER | IPLV |
---|---|---|---|---|
025 | 20.0 | 70.3 | 11.6 | 16.4 |
027 | 22.2 | 78.1 | 11.7 | 15.4 |
030 | 26.0 | 91.4 | 11.5 | 14.2 |
040 | 32.6 | 114.6 | 12.0 | 17.4 |
050 | 41.6 | 146.3 | 11.4 | 16.7 |
060 | 48.0 | 168.8 | 11.5 | 16.4 |
070 | 58.5 | 205.7 | 11.3 | 17.7 |
080 | 64.5 | 226.8 | 11.5 | 17.5 |
090 | 71.9 | 252.8 | 11.8 | 17.4 |
100 | 79.8 | 280.3 | 11.6 | 16.9 |
115 | 90.8 | 319.3 | 11.6 | 17.1 |
130 | 103.7 | 364.6 | 11.5 | 17.1 |
LEGEND
EER = Energy efficiency ratio
IPLV = Integrated part load value
NOTES
1. Unit performance is rated in accordance with ARI (Air Conditioning and Refrigeration Institute) Standard 365.
2. Ratings are based on 45°F (7.2°C) saturated suction temperature and 95°F (35°C) outside-air temperature, and include suction line losses.
38APD (Dual Circuit) Weights and Dimensions
Size | Operating weight
(lbs) |
Dimensions
(in) |
||
---|---|---|---|---|
Length | Width | Height | ||
025 | 1095 | 88.24 | 40.34 | 61.0 |
027 | 1258 | 88.24 | 40.34 | 73.1 |
030 | 1264 | 88.24 | 40.34 | 73.1 |
040 | 2094 | 92.13 | 88.24 | 73.0 |
050 | 2120 | 92.13 | 88.24 | 73.0 |
060 | 2227 | 92.13 | 88.24 | 73.0 |
070 | 2450 | 110.84 | 88.24 | 73.0 |
080 | 2610 | 151.09 | 88.25 | 73.0 |
090 | 2835 | 151.09 | 88.25 | 73.0 |
100 | 2844 | 151.09 | 88.25 | 73.0 |
115 | 3211 | 191.34 | 88.25 | 73.0 |
130 | 3353 | 191.34 | 88.25 | 73.0 |
