Supra 1250 MT
Supra 1250 MT
Total flexibility for multi-product deliveries with ultra-slim evaporators that can be adapted to large configuration requirement
BENEFITS
- Exceptional performance characteristics
- High reliability
- Improved service accessibility
- User-friendly
- Large choice of evaporators
SUPRA 1250MT offers a total flexibility for multi-product deliveries with ultra-slim evaporators that can beadapted to large configuration requirement.
Developed for distribution environments with multiple doors openings, rely on the unmatched performance of the SUPRA range in your challenging operation.
The SUPRA range achieves superior pull-down and accurate temperature control at all set points. This performance is supported by a large range of evaporators with electric fans providing constant airflow independent of engine speed.
BENEFITS
- Exceptional performance characteristics
- High reliability
- Improved service accessibility
- Large choice of evaporators
Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)
| Evaporator | MTS 700 | MTS 1100 | MTS 1450 | MTS 2200 | MTD 1450 | MTD 2200 |
| Nominal capacity (-20°C/30°C) (W) | 3 400
|
5 000
|
5 700
|
7 200
|
5 600
|
11 400
|
| Capacity on engine power 0°C (W) | 7 200
|
8 550 | 9 500 | 10 500 | 8 950 | 11 400 |
| Capacity on engine power -20°C (W) | 3 400 | 5 000 | 5 700 | 5 850 | 5 600 | 6 300 |
| Capacity on electrical stand by 0°C (W) | 5 900 | 8 100 | 8 900 | 9 600 | 8 000 | 10 000 |
| Capacity on electrical stand by -20°C (W) | 3 200 | 4 800 | 5 350 | 5 450 | 5 350 | 5 950 |
Heating Capacity
| MTS 700 | MTS 1100 | MTS 1450 | MTS 2200 | MTD 1450 | MTD 2200 | |
| Diesel High speed 18°C/-18°C (W) | 4 680 | 4 710 | 4 890 | 5 200 | 4 890 | 5 200 |
| Standby 18°C/-18°C (W) | 4 270 | 4 320 | 4 530 | 4 770 | 4 530 | 4 770 |
Airflow
(High speed engine operation)
| MTS 700 | MTS 1100 | MTS 1450 | MTS 2200 | MTD 1450 | MTD 2200 | |
| (AMCA 21085) m3/hr | 1 100 | 2 100 | 2 400 | 3 500 | 2 350 | 3 600 |
Weight
(Including battery)
| S version | 586 kg |
Engine
| Model | CT3-69TV |
| Displacement | 1123 cm3 |
| n° of cylinders | 3 |
| Maintenance Interval | 1000 hrs |
Compressor
| Model | 05G |
| Displacement | 600 cm3 |
| n° of cylinders | 6 |
Electrical Stand by Motor
| Voltage / Phase / Frequency | 230/400/3/50 Hz |
| Rating | 9 kW |
Refrigerant
| Type | R-404A, R-452A |
| Charge | Depending on configuration |
Sound Pressure
| Standard | |
| High speed | 69,2 dBA |
| Low speed | 65,7 dBA |
| Standby | 62,2 dBA |
Unit
| Dimensions | 971 x 1995 x 684 mm |
| Body opening | L 100 x H 100 mm |

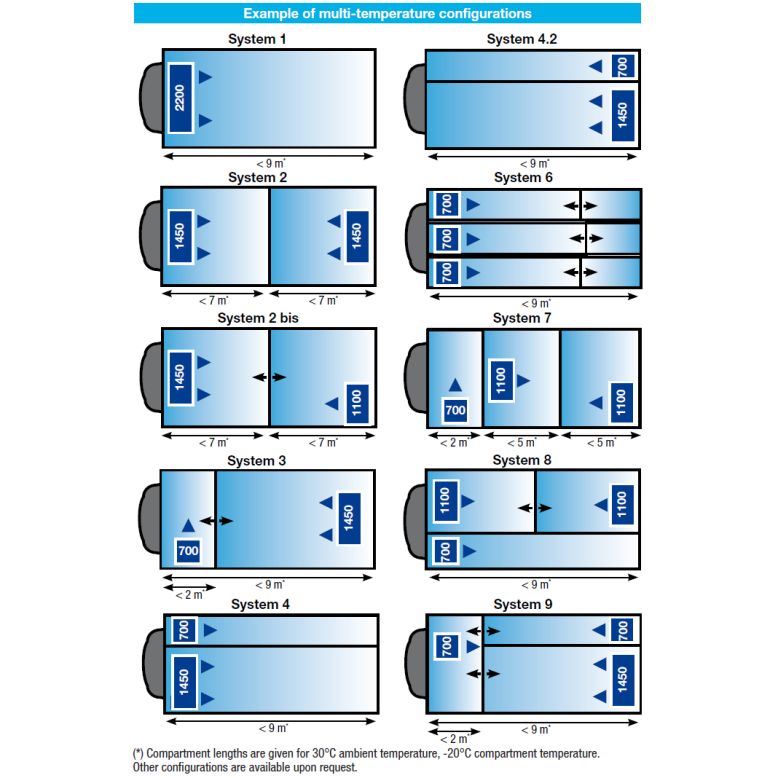

Example for multi-temperature configuration
