Supra 850 MT
Supra 850 MT
Solutions for all your distribution needs
SUPRA range performance for refrigerated trucks
BENEFITS
- Exceptional performance characteristics
- High reliability
- Improved service accessibility
SUPRA 850MT offers a total flexibility for multi-product deliveries with ultra-slim evaporators that can be adapted to large configuration requirement.
Developed for distribution environments with multiple doors openings, rely on the unmatched performance of the SUPRA range in your challenging operation.
The SUPRA range achieves superior pull-down and accurate temperature control at all set points. This performance is supported by a large range of evaporators with electric fans providing constant airflow independent of engine speed.
BENEFITS
- Exceptional performance characteristics
- High reliability
- Improved service accessibility
Refrigeration Capacity
System net cooling capacity under A.T.P. Conditions at 30° C ambient, Nominal capacity at 4250 W
|
MTS 700 |
MTS 1100 |
MTS 1450 |
|
|
Capacity on engine power 0°C (W) |
5 400 |
6 120 |
6 615 |
|
Capacity on engine power -20°C (W) |
2 975 |
3 705 |
4 075 |
|
Capacity on electrical stand by 0°C (W) |
5 090 |
5 650 |
5 845 |
|
Capacity on electrical stand by -20°C (W) |
2 875 |
3 530 |
3 880 |
Heating Capacity
|
MTS 700 |
MTS 1100 |
MTS 1450 |
|
|
Diesel High speed 18°C/-18°C (W) |
2 985 |
3 425 |
3 645 |
|
Standby 18°C/-18°C(W) |
2 925 |
3 320 |
3 530 |
Airflow
on high speed engine operation
|
MTS 700 |
MTS 1100 |
MTS 1450 |
|
|
(AMCA 21085) m3/hr |
1 100 |
2 100 |
2 400 |
Weight
including battery
|
S version (Standard) |
443 kg |
|
T version (Low noise) |
446 kg |
|
X version (Silent) |
448 kg |
Engine
n° of cylinders - cm3
|
Model |
CT3-44TV |
|
Displacement |
719 cm3 |
|
n° of cylinders |
3 |
|
Maintenance Interval |
750/1000 hrs |
Compressor
|
Model |
05K4 |
|
Displacement |
400 cm3 |
|
n° of cylinders |
4 |
Electrical Stand by Motor
|
Voltage / Phase / Frequency |
230/400/3/50 Hz |
|
Rating |
5 kW |
Refrigerant Charge
|
Refrigerant |
R-404A, R-452A |
|
Charge |
Depending on configuration |
Sound pressure low speed
|
Standard |
Low noise |
Silent |
|
|
High speed |
68,7 dBA |
66 dBA |
64,6 dBA |
|
Low speed |
66,3 dBA |
62,1 dBA |
61,9 dBA |
|
Standby |
59,7 dBA |
55dBA |
- |
Generic
|
Dimensions |
888 x 1823 x 629 mm |
|
Body opening |
L 90 x H 90 mm |

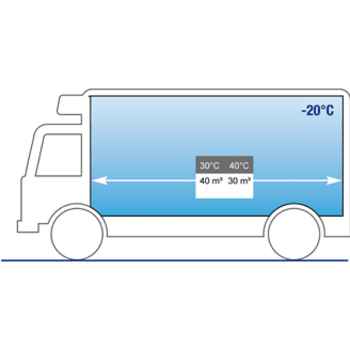

Example for multi-temperature configuration
