Lynx® Fleet Telematics


TRU IQ for Refrigerated Fleet


Lynx Fleet logo

The Lynx Fleet Difference:

Intelligence and insight for refrigerated operations. More than ever, today’s refrigerated transporters need to manage operations efficiently while maintaining compliance and accountability for the cold chain as they move perishable food and pharmaceuticals from coast to coast. The Lynx Fleet platform not only helps fleets achieve these goals today, but also anticipates their future needs tomorrow.

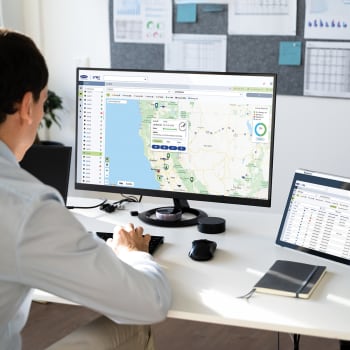

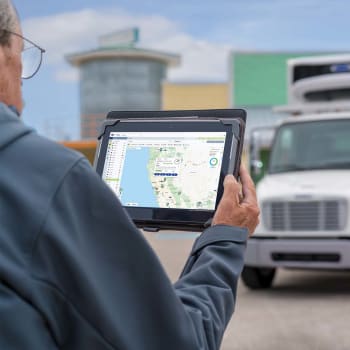

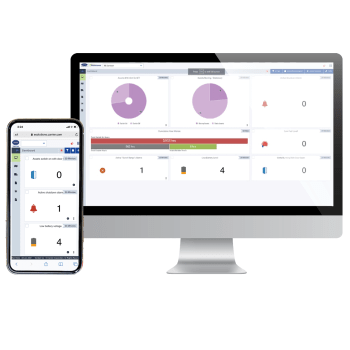

Refrigerated assets as you’ve never seen them. The robust Lynx Fleet website provides three easy ways to get a comprehensive overview of a fleet, and each is customizable to a fleet’s unique needs. All information is available through desktop computers and mobile devices, so you never lose touch with your cold chain assets. Additionally, information collected by Lynx Fleet can be integrated into the fleet’s transportation management system.

Service plans to suit any fleet. The Lynx Fleet platform requires a monthly service plan. Carrier Transicold offers three plan tiers so fleets can choose based on needs and budget and even upgrade as requirements change over time. Learn more about these plan tiers by viewing the Lynx Fleet brochure in the Literature tab.

What you need to know, when you need to know it. When you combine refrigeration system monitoring with GPS and notification capabilities, highly useful things can happen in terms of refrigerated fleet operations management. The possibilities for enhancing operations and efficiencies are unprecedented. Carrier Transicold has specialists dedicated to working with fleets and their supporting dealers to help them harness all the potential that the Lynx Fleet platform has to offer.

A Complete Telematics Package

Each Lynx Fleet-enabled TRU is equipped with a telematics module with backup battery, antenna and wiring harness. Cellular operation or cellular plus satellite operation, as specified by the customer, include a satellite radio and antenna elements in a single hardware package. All user data is securely maintained and accessed through a Carrier-approved data center, providing redundant data protection, fast access and robust security of fleet information.

Specifications

Transceiver Dimensions:

7.54” x 3.07” x 1.43"
(191.5 x 78.1 x 36.4 mm)

Inputs:
1 door, 1 fuel, 3 temperatures

LED Status/Warning Indicators:

Green, Red/blinking, Orange/blinking

Coverage:
4G LTE Cellular + GPS
Satellite (Optional)

Operating Temperature: -40°F to 185°F (-40°C to 85°C)

Humidity: 0 to 100% RH

Power Draw:

Sleep 5 mA
Standby 10-20 mA
Active 100 mA

Backup Battery: Lithium-ion rechargeable







Ordering Information

Note: Monthly service plan must be
activated separately from hardware purchase.

Factory Installation:
The system can be factory installed on X4™,
Vector™ and Supra® series truck and trailer
refrigeration units and Solara™ heating units.

Field Installation:
X4 and X2 series
Vector 8500, 8600MT, 8611MT, 1550, HE19
Vector 6500, 6600MT and 5100
Supra 6, 7, 8 and 9, Supra 560, 660, 760, 860, 960
and Supra 950MT

Lynx Fleet System Options

Note: Option kits can be included in factory orders
but will be installed in the field.

Lynx Fleet remote power control switch kit
Lynx Fleet temperature sensor kit, 100 ft. cable
Lynx Fleet fuel sensor kit, 22 in. tank

Other Compatible Options:

Carrier door switch kit
Carrier temperature sensor kit, 75 ft. Cable
Carrier temperature sensor kit, 100 ft. Cable
Carrier ultrasonic fuel sensor kit, 18 in. Tank
Carrier ultrasonic fuel sensor kit, 22 in. Tank
Carrier ultrasonic fuel sensor kit, 36 in. Tank
