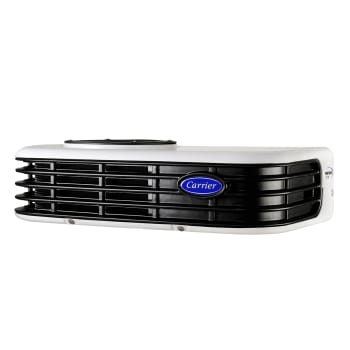

Neos 100 S
Neos 100S Truck Refrigeration Unit
Superior reliability and temperature control for small delivery vehicles.
Features and Benefits:
- Maintains optimal temperature control of perishable products in small cargo areas.
- Maximum reliability due to elimination of the road compressor and other components.
- Consistent performance at variable engine speeds due to all-electric technology.
Performance Specifications
Condenser Dimensions
34" x 18.9" x 8.4"
(864 x 480 x 232 mm)
Evaporator Dimensions
23.9" x 21.6" x 6.5"
(608 x 548 x 165 mm)
CAB COMMAND™
3.4" x 2.4" x 1.1"
(85 x 60 x 28 mm)
Cooling/Temperature Capacity:
Ambient at 100°F (38°C)
Compressor Speed: 1,000 rpm @ 60 Hertz
| Evaporator
Return Air Temp. |
Diesel Operation | Standy Operation | ||
| Btuh/hr | Watts | Btuh/hr | Watts | |
| 35°F ( 2°C) | 3,600 | 1,055 | 3,600 | 1,055 |
| 0°F (-18°C) | 1,300 | 381 | 1,300 | 381 |
Features and Benefits:
- Maintains optimal temperature control of perishable products in small cargo areas.
- Maximum reliability due to elimination of the road compressor and other components.
- Consistent performance at variable engine speeds due to all-electric technology.
Performance Specifications
Condenser Dimensions
34" x 18.9" x 8.4"
(864 x 480 x 232 mm)
Evaporator Dimensions
23.9" x 21.6" x 6.5"
(608 x 548 x 165 mm)
CAB COMMAND™
3.4" x 2.4" x 1.1"
(85 x 60 x 28 mm)
Cooling/Temperature Capacity:
Ambient at 100°F (38°C)
Compressor Speed: 1,000 rpm @ 60 Hertz
| Evaporator
Return Air Temp. |
Diesel Operation | Standy Operation | ||
| Btuh/hr | Watts | Btuh/hr | Watts | |
| 35°F ( 2°C) | 3,600 | 1,055 | 3,600 | 1,055 |
| 0°F (-18°C) | 1,300 | 381 | 1,300 | 381 |
